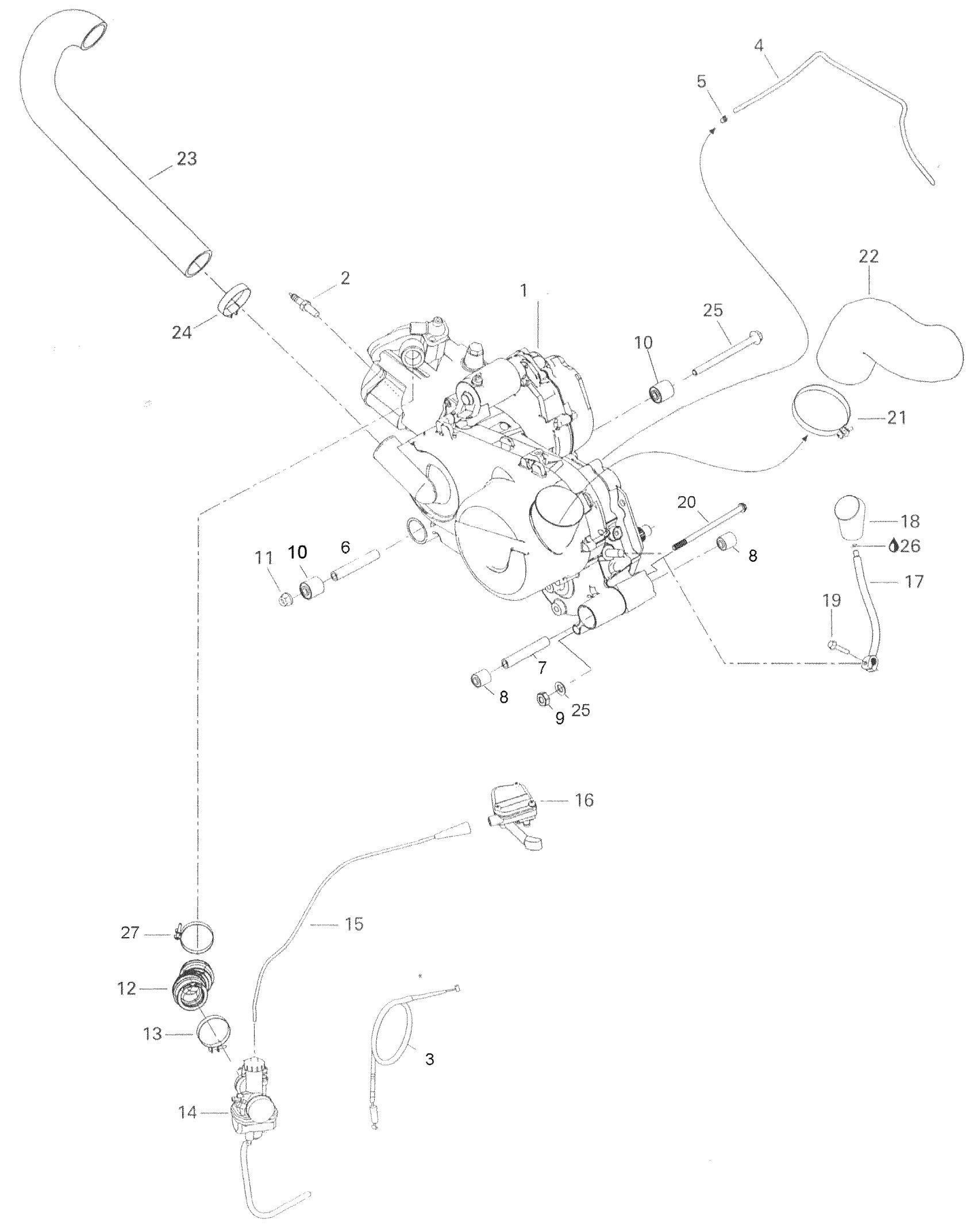

Can-Am Rally 175, 2006 01- Engine And Engine Support Diagram

#

Description
Price

1

Engine 175 CC

A84100179000

Unavailable

2

Spark Plug

219703176

$10.59

3

CHOKE CABLE - Call your local BRP dealership

A17950179000

Unavailable

4

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$121.99

5

Spring Clamp

414554800

$0.88

6

FRONT CRANKCASE AXLE - Call your local BRP dealership

A11150179000

Unavailable

7

REAR CRANKCASE AXLE - Call your local BRP dealership

A11151179000

Unavailable

8

REAR BUSHING - Call your local BRP dealership

A96400123538

Unavailable

9

Elastic Flange Nut M10

232501416

$1.48

10

REAR BUSHING - Call your local BRP dealership

A96400123535

Unavailable

11

Elastic Flange Nut M12

A9035112000

Unavailable

12

Carburetor Adaptor

707000195

Unavailable

13

GEMI CLAMP - Call your local BRP dealership

293650151

Unavailable

14

Carburetor

A16100179000

Unavailable

15

Throttle Cable

707000318

Unavailable

16

THROTTLE HANDLE - Call your local BRP dealership

709400142

Unavailable

17

Shifter Lever

A24701179000

Unavailable

18

LEVER BUTTON - Call your local BRP dealership

A24702179000

Unavailable

19

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

20

Hex. Flange Screw

A9600010158

Unavailable

21

Gemi Clamp

293650152

$15.49

22

EXHAUST - Call your local BRP dealership

707000202

Unavailable

23

Air Intake

707000203

Unavailable

24

GEMI CLAMP - Call your local BRP dealership

293650153

Unavailable

25

Washer

A941011020020

Unavailable

26

Loctite 243, 10 ml

293800060

$21.49

27

HOSE CLAMP - Call your local BRP dealership

A9451648000

Unavailable
