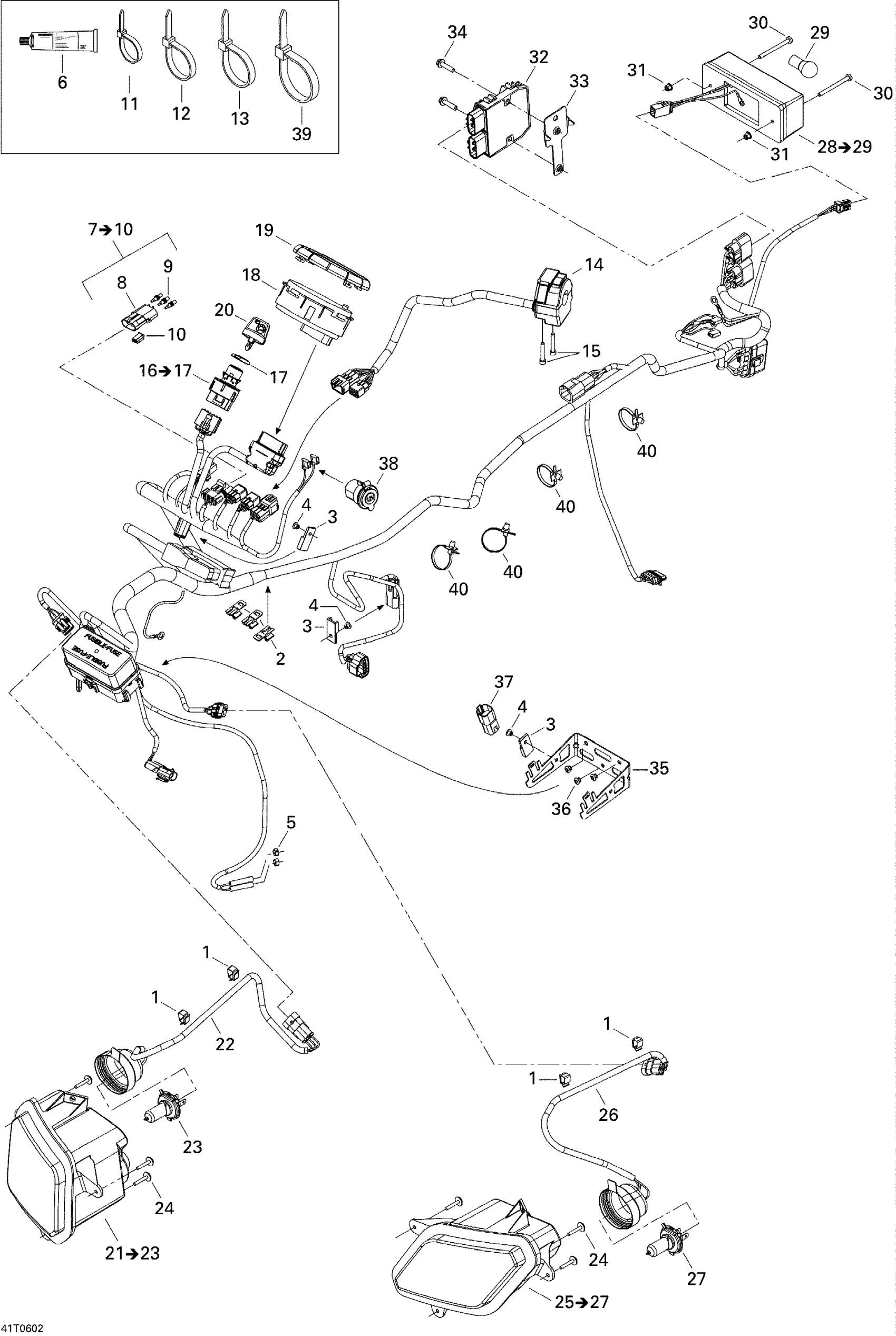

Can-Am Outlander MAX 800 XT 4 X 4, 2006 10- Electrical Accessories XT Diagram

#

Description
Price

1

Clip

414227300

$1.67

2

Housing Support

515175283

$9.19

3

Clip

270000141

$11.49

4

Pop Rivet 3/16"

390402400

$0.35

5

Oetiker Clamp

293650100

$3.38

6

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

7

Not Available As Spare Parts

XXX

Unavailable

8

Not Available As Spare Parts

XXX

Unavailable

9

Not Available As Spare Parts

XXX

Unavailable

10

Not Available As Spare Parts

XXX

Unavailable

11

Tie Wrap 94 mm | 4X4

293750001

$1.03

12

Tie-Rap 180 mm

414115200

$0.11

13

Tie Wrap 368 mm

293750008

$1.04

14

Multi-Fonction Handle

710000791

$116.49

15

Socket Head Screw M5 X 35

205053588

$1.90

16

Ignition Switch | Includes 16 to 17

710002324

$79.49

17

Not Available As Spare Part - Friction Washer

Unavailable

18

SPEEDOMETER - Call your local BRP dealership

710000919

Unavailable

19

TRIM RING - Call your local BRP dealership

710000353

Unavailable

20

Black, Electronic Key

710000817

$63.49

21

RH Headlamp Ass'y | Includes 20 to 22

710001496

$89.99

22

LIGHT HARNESS - Call your local BRP dealership

710000828

Unavailable

23

Bulb, 12V 35/35W

710000871

$34.99

24

Plastite Screw Type K-40, M4 X 25

250000101

$3.49

25

LH Headlamp Ass'y | Includes 24 to 26

710001497

$89.99

26

LIGHT HARNESS - Call your local BRP dealership

710000828

Unavailable

27

Bulb, 12V 35/35W

710000871

$34.99

28

Tail Light Housing Ass'y | Includes 17 to 20

710000711

$95.99

29

Bulb

520000758

$9.10

30

PAN HEAD PHILLIPS SCREW M5 X 60 - Call your local BRP dealership

208656091

Unavailable

31

Hex. Flange Elastic Nut M5

233251414

$1.04

32

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$142.99

33

RECTIFIER SUPPORT - Call your local BRP dealership

710001262

Unavailable

34

Hex. Flange Forming Screw M6 X 25

210262580

$1.90

35

FUSE SUPPORT - Call your local BRP dealership

710002176

Unavailable

36

Pop Rivet 3/16"

390402400

$0.35

37

Diagnostic Connector

278002704

$19.49

38

Outlet Power Kit, 12 Volts

861507200

$36.99

39

Tie-rap 627 mm

293750041

$0.93

40

Push Mount

293750039

Unavailable
