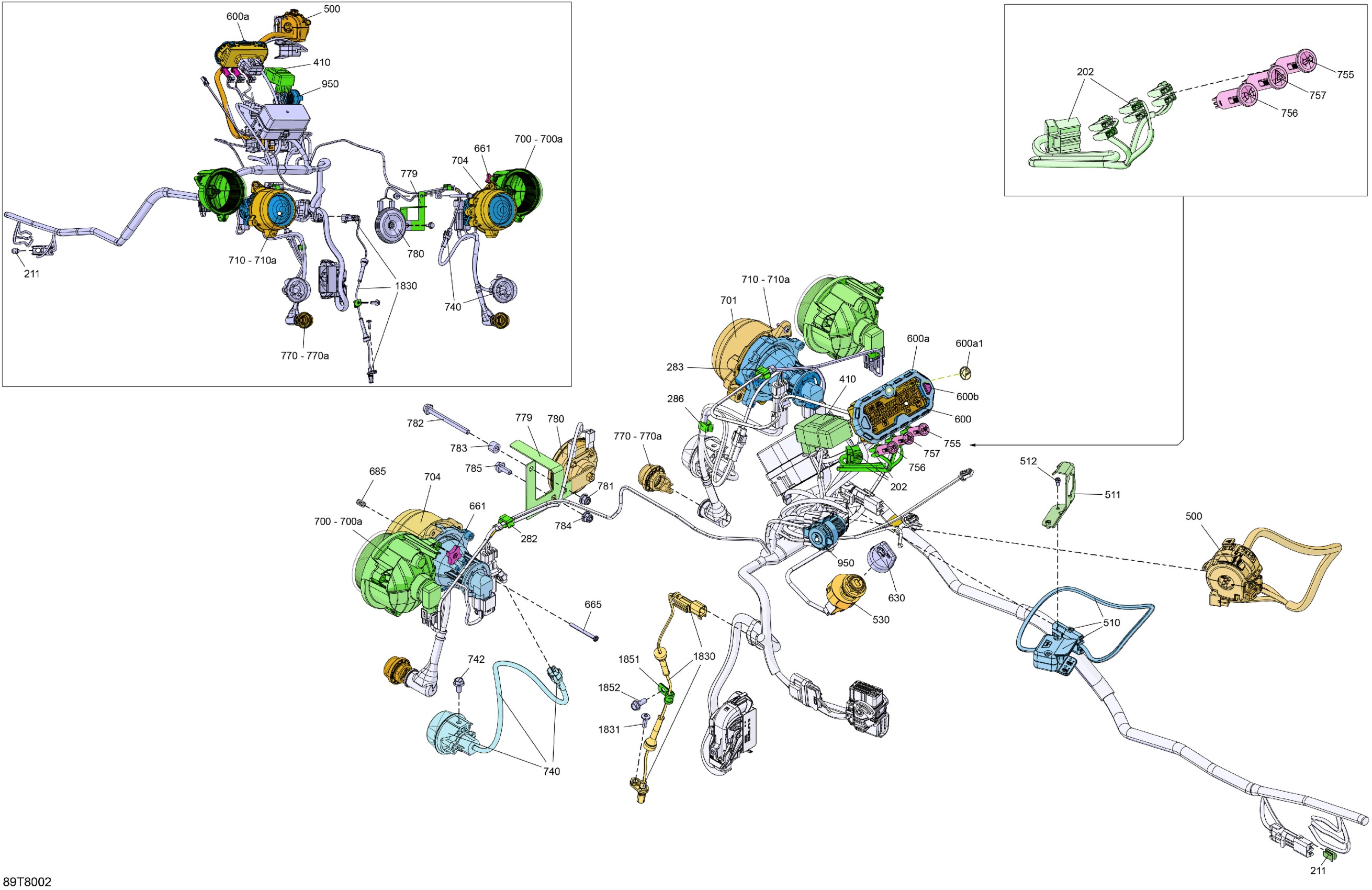

Can-Am T Regulation - OUTLANDER MAX - 4X4 - XT - 650 EFI - 1ZJB - Intense Red Satin, 2018 08- Electric - Front Section Diagram

Description

Price

202

Indicator Light Cable

710005840

$19.99

211

Clip

710000992

$4.29

282

Clip

414227300

$1.67

283

Clip

414227300

$1.67

286

Clip

414227300

$1.67

410

Flasher Unit

710003239

$78.49

500

Multi-Function Handle

710005552

$174.99

510

Winch Switch

710005241

$164.49

511

Winch Switch Support | XT, XTP, XMR, LTD,

710002631

$10.27

512

Hex. Cap Screw 6-32 X 1/4" | XT Models

250000153

$1.69

530

Ignition Switch

710008400

$78.49

600

Speedometer | Includes 600 to 600b

710005553

$339.99

600a

Trim Ring Ass'y

710001183

$19.99

600a1

BRP Logo 13 MM

516010651

$12.49

600b

Button

715900265

$13.71

630

Grey, Electronic Key

710002183

$63.49

640

Black, Electronic Key

710000817

$63.49

661

Handle

572106600

$10.33

665

Hex. Screw K40 X 45

250000718

$2.11

685

Spring

517168600

$7.39

700

Low Beam | Includes 54 to 55

710006177

$119.99

700a

Bulb 12V 55W

715900141

$41.49

701

RH High Front Housing

710002291

$28.99

704

LH High Front Housing

710002292

$22.49

707

Phillips Screw K40 X 16

250000723

$0.98

710

High Beam Ass'y | Includes 11 to 12

710002525

$119.99

710a

Halogen Bulb

415129249

$41.49

740

Flasher | Europe

710002964

$35.99

742

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.90

755

Pilot Light Trailer Flasher

710005766

$9.29

756

Pilot Light Tail Lamp

710005767

$9.39

757

Pilot Lamp | Model-Europe

710003909

$21.99

770

Day Light | Europe

710001726

$35.99

770a

Cap Protector | Model-Europe

710003269

$12.11

779

Horn Support

710006113

$13.49

780

Horn

710004791

$38.99

781

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

782

Hex. Flange Screw M6 X 70

207667044

$0.85

783

Bushing

708001129

$11.99

784

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

785

Hex. Flange Screw M6 X 16

207661644

$0.74

950

DC Outlet

710001248

$37.99

1830

Speed Sensor

710005610

$83.99

1831

Torx Screw K50 X 16

250000720

$1.69

1851

Clamp

293650256

$5.49

1852

Hex. Flange Screw M6 X 16

210261640

$2.11
