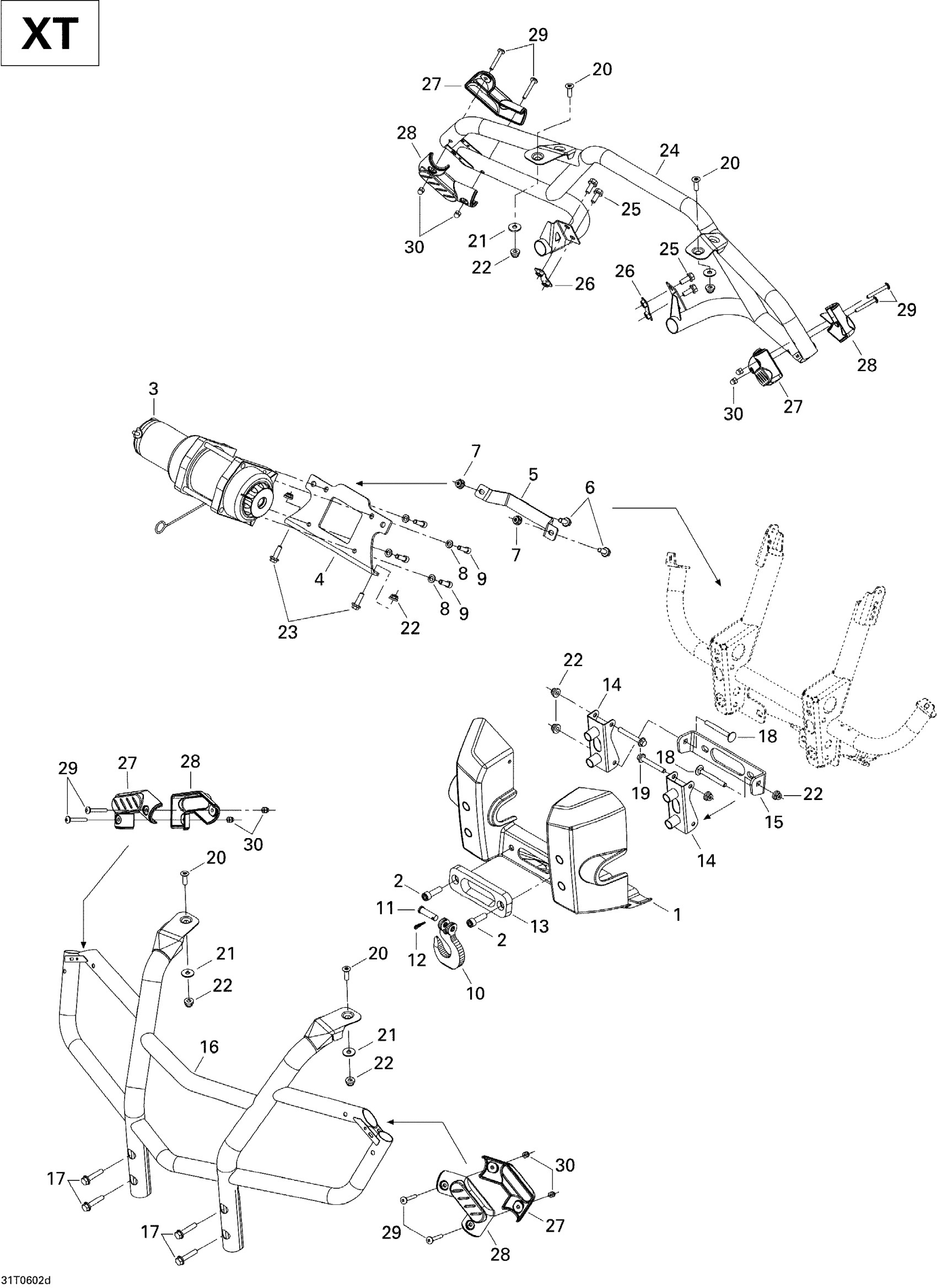

Can-Am Outlander MAX 800 XT 4 X 4, 2006 09- Body And Accessories 4 Diagram

#

Description
Price

1

GUARD PLATE - Call your local BRP dealership

705003496

Unavailable

2

Socket Screw M10 X 35

205003544

$1.69

3

WINCH - Call your local BRP dealership

705000839

Unavailable

4

BLACK MOUNTING PLATE - Call your local BRP dealership | XT

705004278

Unavailable

5

BLACK WINCH BRACKET - Call your local BRP dealership | XT

705001460

Unavailable

6

Hex. Flange Screw M8 X 25

207682544

$1.35

7

Hex. Flange Elastic Nut M8

233281414

$1.47

8

Lock Washer 8 mm

234181401

$0.92

9

SOCKET SCREW 5/16-18 X 1 - Call your local BRP dealership

250000041

Unavailable

10

Winch Hook Kit

705014949

$24.99

11

Clevis Pin

250400021

$13.18

12

Cotter Pin

250400022

$9.69

13

CABLE GUIDE - Call your local BRP dealership

705000194

Unavailable

14

BUMBER ANCHORING - Call your local BRP dealership

705003006

Unavailable

15

renfort de pare-chocs - Call your local BRP dealership

705001073

Unavailable

16

FRONT BUMPER - Call your local BRP dealership | XT

705001964

Unavailable

17

Hex. Flange Screw M8 X 40, Scotch Grip

207584044

$1.69

18

Carriage Bolt M8 X 70

207787044

$1.37

19

Hex. Flange Screw M8 x 60

207686044

$3.07

20

TORX SCREW M8 X 20 - Call your local BRP dealership | XT

235482084

Unavailable

21

Flat Washer 8 mm

234082410

$1.47

22

Hex. Flange Elastic Nut M8

233281414

$1.47

23

Hex. Flange Screw M8 X 25

207682544

$1.35

24

REAR BUMPER - Call your local BRP dealership | XT

705001973

Unavailable

25

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

26

ATTACHMENT PLATE - Call your local BRP dealership

705001075

Unavailable

27

MALE CAP - Call your local BRP dealership

705001042

Unavailable

28

FEMALE CAP - Call your local BRP dealership

705001043

Unavailable

29

Torx Screw M6 X 45

250000215

$1.90

30

Domed Nut M6

232361493

$2.11
