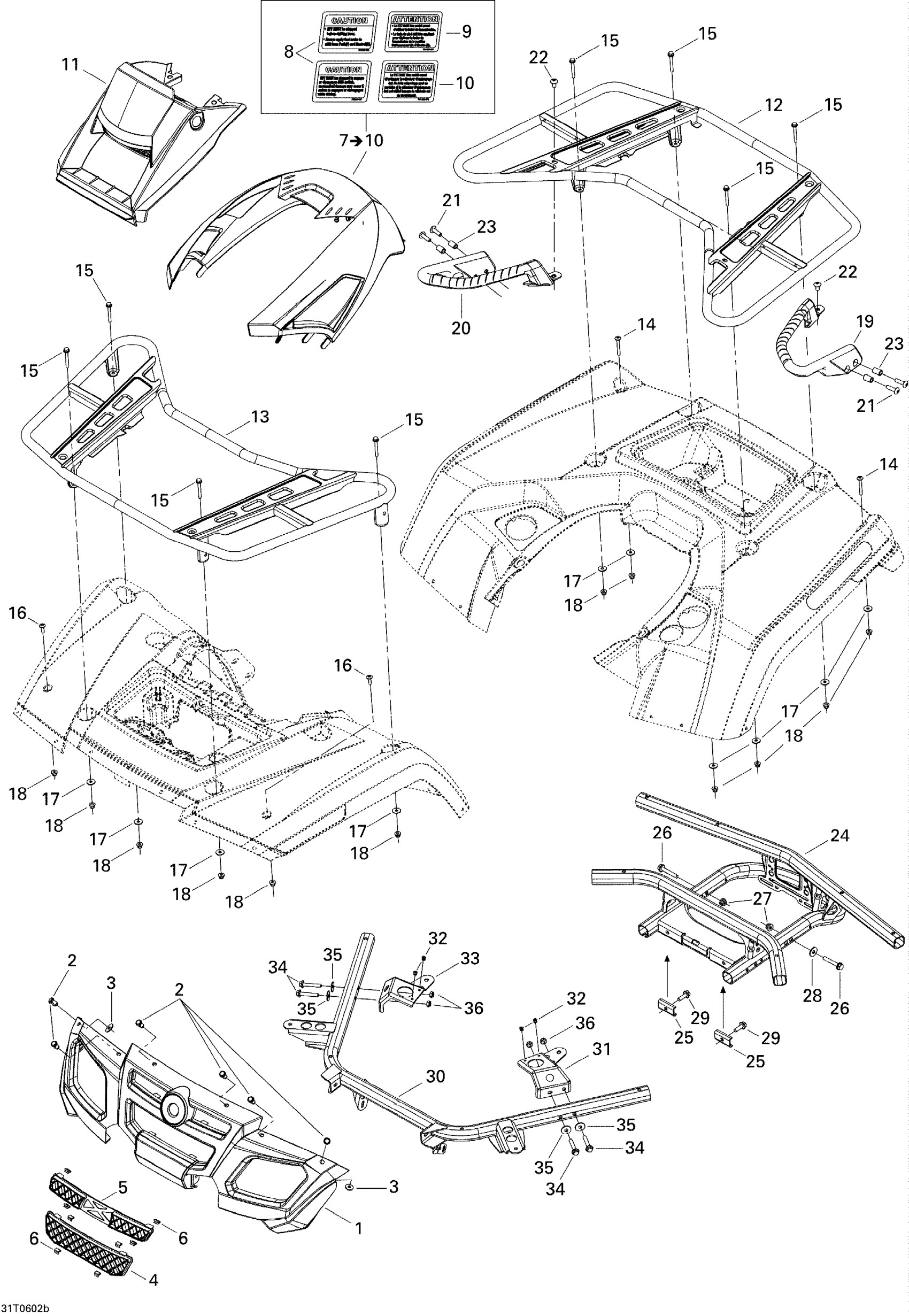

Can-Am Outlander MAX 800 XT 4 X 4, 2006 09- Body And Accessories 2 Diagram

#

Description
Price

1

FRONT FASCIA, RED - Call your local BRP dealership | Viper Red

705001313

Unavailable

1

FRONT FASCIA, YELLOW - Call your local BRP dealership | Yellow

705001991

Unavailable

1

FRONT FASCIA, GREEN - Call your local BRP dealership | Laurentian Green

705001992

Unavailable

2

Tuflok Plastic Rivet

293150230

$1.47

3

Flat Washer 8 mm

234082410

$1.47

4

LOWER GRILL - Call your local BRP dealership

705001679

Unavailable

5

UPPER GRILL - Call your local BRP dealership

705001901

Unavailable

6

Clip | Europe Models

517306751

$2.09

7

Central Panel Kit, Red | Includes 7 to 10, Viper Red

703500597

Unavailable

7

Central Panel Kit, Yellow | Includes 7 to 10, Yellow

715001274

$57.99

7

CENTRAL PANEL KIT, GREEN - Call your local BRP dealership | Includes 7 to 10, Laurentian Green

703500599

Unavailable

8

Caution Decal, Lever And 4wd Switch | English Version

704900434

Unavailable

9

Caution Decal, Shifting Lever | French Version

704900475

Unavailable

10

CAUTION DECAL, 4WD SWITCH - Call your local BRP dealership | French Version

704900476

Unavailable

11

Dashboard

705003490

$46.99

11

Dashboard | Europe

705002210

Unavailable

12

Rear Luggage Rack

705002617

$275.49

13

Front Luggage Rack

705002616

$275.49

14

Torx Truss Screw M6 X 50

250000749

$3.17

15

Hex. Flange Screw M6 X 50

207665044

$4.12

16

Torx Screw M6 X 20

250000722

$1.68

17

Flat Washer

224061201

$1.37

18

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

19

LH Handle

705001944

Unavailable

20

RH Handle

705001945

Unavailable

21

Hex Torx Truss M8 X30

250000745

$3.17

22

Torx Truss Screw M8 X 16

250000746

$3.38

23

Bushing

705002153

$11.99

24

Rear Support

705003656

$275.49

25

U Reinforcement

705003647

$8.19

26

Hex. Flange Screw M8 X 50

207685044

$1.69

27

Hex. Flange Elastic Nut M8

233281414

$1.47

28

Flat Washer 8 mm

234082410

$1.47

29

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

30

FRONT SUPPORT - Call your local BRP dealership

705003655

Unavailable

31

LH ANCHOR PLATE - Call your local BRP dealership

705000692

Unavailable

32

Pop Rivet 3/16"

390402300

$0.75

33

RH Anchor Plate

705002997

$18.49

34

Hex. Flange Screw M8 X 45

207684544

$3.80

35

Flat Washer 8 mm

234082410

$1.47

36

Hex. Elastic Stop Nut M8

232581414

$0.56
