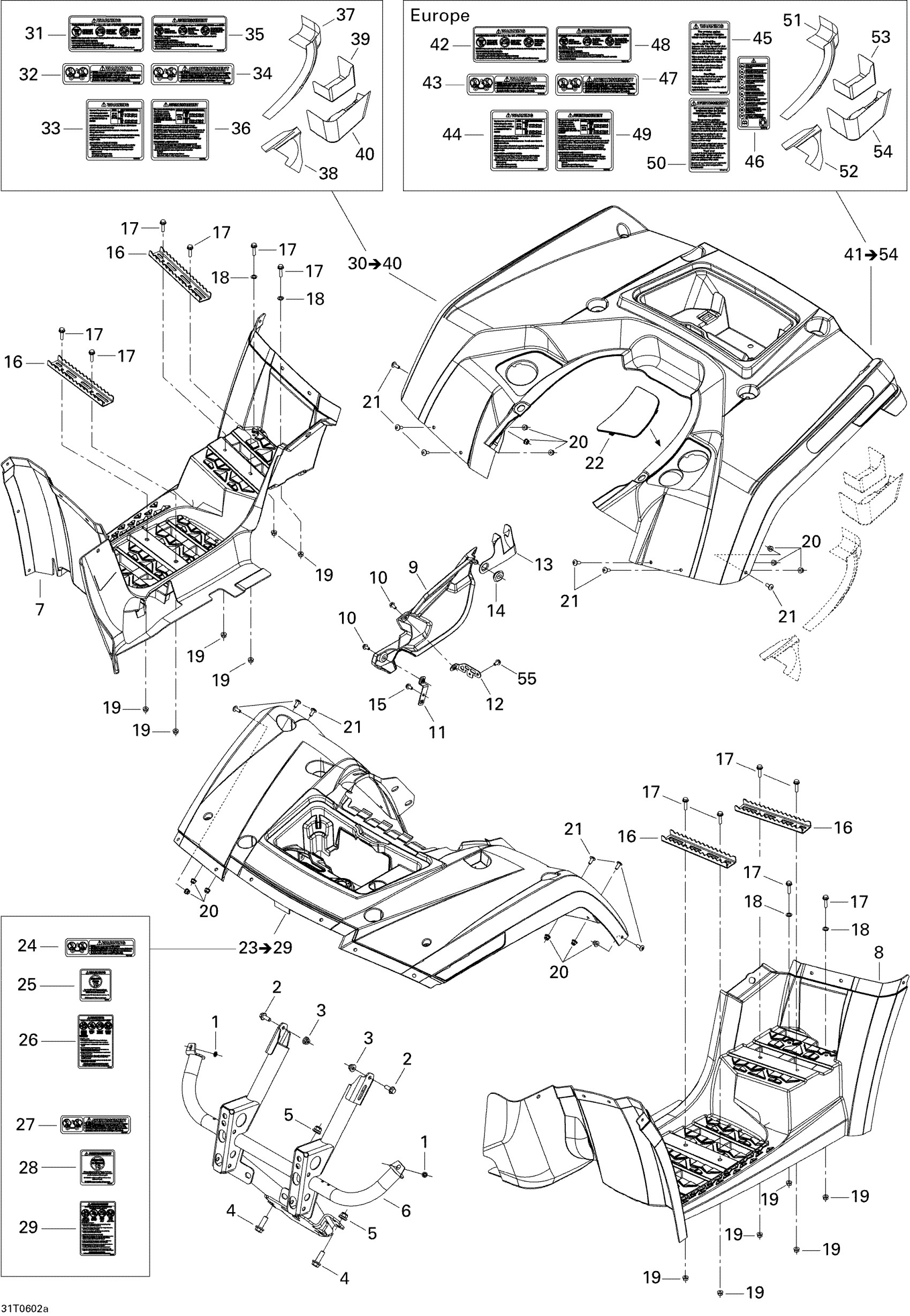

Can-Am Outlander MAX 800 XT 4 X 4, 2006 09- Body And Accessories 1 Diagram

#

Description
Price

1

Push Nut

732610072

$2.19

2

Hex. Flange Screw M8 X 20

207682044

$1.15

3

Hex. Flange Elastic Nut M8

233281414

$1.47

4

Hex. Flange Screw M10 X 30

207603044

$2.11

5

Hex. Flange Elastic Nut M10

233201414

$1.58

6

Front Bumper

705003196

$312.49

7

RH Footboard

705002487

$184.99

8

LH Footboard

705003633

$184.99

9

ENGINE COVER - Call your local BRP dealership

705003839

Unavailable

10

Hex. Flange Screw M6 X 12

210261250

$1.90

11

Engine Cover Support

705003646

$9.23

12

Engine Cover Support

705011461

$10.49

13

ENGINE COVER SUPPORT - Call your local BRP dealership

705002121

Unavailable

14

Oval Washer

705005156

$4.97

15

Hex. Flange Screw M6 X 12

210261250

$1.90

16

Footrest

705003648

$43.99

17

Hex. Flange Screw M6 X 25

207662554

$1.48

18

Lock Washer M6, Black

234161471

$0.53

19

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

20

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

21

Torx Screw M6 X 16

250000755

$0.87

22

LH Rear Body Panel Cap

705017923

$13.99

23

FRONT FENDER KIT, RED - Call your local BRP dealership | Includes 21 to 27, Viper Red

715000840

Unavailable

23

FRONT FENDER KIT, YELLOW - Call your local BRP dealership | Includes 21 to 27, Yellow

703500589

Unavailable

23

FRONT FENDER KIT, GREEN - Call your local BRP dealership | Includes 21 to 27, Laurentian Green

703500590

Unavailable

24

Warning Decal, Load | English Version

704901089

Unavailable

25

Warning Decal, Under 16 Years Old | English Version

704901753

Unavailable

26

Warning Decal, Death And Injuries | English Version

704901749

Unavailable

27

Warning Decal, Load | French Version

704901090

Unavailable

28

WARNING DECAL, UNDER 16 YEARS OLD - Call your local BRP dealership | French Version

704900436

Unavailable

29

Warning Decall, Death And Injuries | French Version

704900905

Unavailable

30

REAR FENDER KIT, RED - Call your local BRP dealership | Includes 30 to 40, Viper Red B-176

715000854

Unavailable

30

REAR FENDER KIT, YELLOW - Call your local BRP dealership | Includes 30 to 40, Yellow B-190

715000858

Unavailable

30

REAR FENDER, GREEN - Call your local BRP dealership | Includes 30 to 40, Laurentian Green B-241

703500583

Unavailable

31

WARNING DECAL, PASSENGER - Call your local BRP dealership

704901762

Unavailable

32

Warning Decal, Load | English Version

704901089

Unavailable

33

WARNING DECAL, TIRE PRESSURE - Call your local BRP dealership

704901119

Unavailable

34

Warning Decal, Load | French Version

704901090

Unavailable

35

WARNING DECAL, UNDER 12 YEARS OLD - Call your local BRP dealership | French Version

704901122

Unavailable

36

Warning Decal, Tire Pressure | French Version

704901159

Unavailable

37

Reflective Sheet

705002085

$12.99

38

REFLECTIVE SHEET - Call your local BRP dealership

705002014

Unavailable

39

REFLECTIVE SHEET - Call your local BRP dealership

705002189

Unavailable

40

Reflective Sheet

705002191

$9.69

41

REAR FENDER KIT, RED - Call your local BRP dealership | Includes 41 to 54, Viper Red B-176, Europe

715000856

Unavailable

41

REAR FENDER KIT, YELLOW - Call your local BRP dealership | Includes 41 to 54, Yellow B-190, Europe

715000860

Unavailable

41

REAR FENDER, GREEN - Call your local BRP dealership | Includes 41 to 54, Laurentian Green B-241, Europe

703500596

Unavailable

42

WARNING DECAL, PASSENGER - Call your local BRP dealership

704901762

Unavailable

43

Warning Decal, Load | English Version

704901089

Unavailable

44

WARNING DECAL, TIRE PRESSURE - Call your local BRP dealership

704901119

Unavailable

45

WARNING DECAL, PUBLIC ROADS USE - Call your local BRP dealership | English Version

704901444

Unavailable

46

WARNING DECAL, MULTILINGUAL - Call your local BRP dealership | Europe

704901177

Unavailable

47

Warning Decal, Load | French Version

704901090

Unavailable

48

WARNING DECAL, UNDER 12 YEARS OLD - Call your local BRP dealership | French Version

704901122

Unavailable

49

Warning Decal, Tire Pressure | French Version

704901159

Unavailable

50

Warning Decal, Public Roads Use | French Version

704901158

Unavailable

51

Reflective Sheet

705002085

$12.99

52

REFLECTIVE SHEET - Call your local BRP dealership

705002014

Unavailable

53

REFLECTIVE SHEET - Call your local BRP dealership

705002189

Unavailable

54

Reflective Sheet

705002191

$9.69

55

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.90
