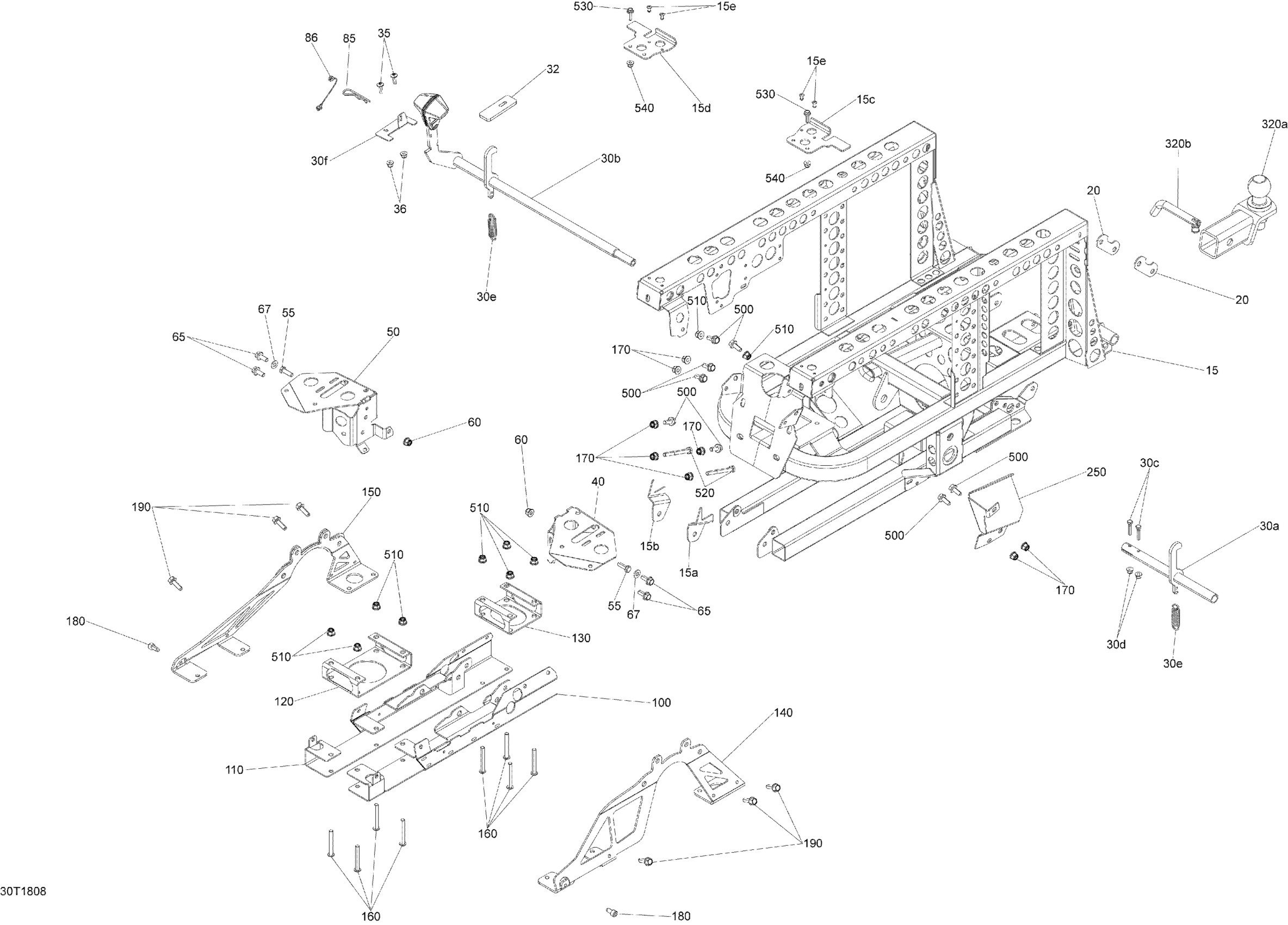

Can-Am 2- Outlander 6X6 T3 1000 EFI, 2018 09- Frame Diagram

#

Description
Price

15

Rear Frame | Includes 15 to 15e

705204598

$1,019.99

15a

LH Grip Plate

605356426

$20.99

15b

RH Grip Plate

605356425

$20.99

15c

LH Cargo Support

705204600

$18.49

15d

RH Cargo Support

705204601

$18.49

15e

Stavex Rivet

293150144

$0.82

20

Support Plate

705203564

$24.49

30a

LH Tube

705203669

$104.99

30b

RH Tube

705203670

$119.99

30c

Hex Cap Screw DIN.931

250000480

$6.39

30d

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

30e

Spring

415107100

$6.35

30f

Lever Support

705203834

$18.49

32

Rubber Collar

708301280

$20.99

35

Torx Screw M6 X 20

250000722

$1.68

36

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

40

LH Rear Fender Support

705203611

$76.99

50

RH Rear Fender Support

705203612

$76.99

55

Hexagonal Screw

250000556

$2.11

60

Hex. Flange Elastic Nut M8

233281414

$1.47

65

Hex. Flange Screw M8 X 20

207682046

$1.90

67

Washer

503192494

$3.17

85

Cotter Spring

505073670

$2.19

86

Retainer Cable

293750069

$15.99

100

LH Lower Beam Reinforcement

705203724

$41.99

110

RH Lower Beam Reinforcement

705203725

$41.99

120

Front Support Plate

705203726

$96.99

130

Rear Support Plate

705203727

$96.99

140

LH Differential Support Reinforcement

705203728

$214.99

150

RH Differential Support Reinforcement

705203729

$214.99

160

Torx Screw Scotch Grip M8X60

250000777

$8.11

170

Hex. Elastic Flange Nut M8

233281416

$1.48

180

Forming Screw HD.DIN.7500E

250000678

$3.91

190

Hex Forming Screw DIN.7500D

250000376

$7.51

250

Heat Shield

707601726

$22.49

320a

Trailer Hitch Kit | Package PRO International

705210328

$243.49

320b

Hitch Pin

705204490

$52.99

500

Hex. Flange Screw M8 X 20

207682046

$1.90

510

Hex. Elastic Flange Nut M8

233281416

$1.48

520

HEX. SCREW M8 X 75 - Call your local BRP dealership

207087544

Unavailable

530

Hex. Flange Screw M6 X 20

207662054

$1.01

540

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

600a

Carriage Bolt, M8 X 20

207782044

$1.90

600b

Hex. Elastic Stop Nut M8

232581414

$0.56

600c

Stainless Steel Flat Washer

234082670

$2.11

600d

Handle M8 X 35 | Model-T3

510003533

$44.49

600e

Hex. Flange Screw M8 X 20

207682046

$1.90

600f

Hex. Screw M10 X 75

250001063

$13.16

600g

Lock Washer D10

20068

$2.00

600h

Hex. Flange Elastic Nut M10

233201436

$2.11

600j

Hex. Elastic Stop Nut M8

232581414

$0.56

600k

Hex. Flange Screw M8 X 25

207682534

$2.11

600m

Carriage Bolt, M8 X 20

207782044

$1.90

600n

Stainless Steel Flat Washer

234082670

$2.11

600m

Avex Rivet

390909100

$0.30

600p

Washer

20117

$6.39

600q

Hex. Flange Screw M6 X 20

207662034

$2.11

600r

Hex. Elastic Stop Nut M6

232561600

$1.15

600s

Avex Rivet

390909100

$0.30

600t

Hex. Flange Screw M6 X 20

207662034

$2.11

600u

Hex. Elastic Stop Nut M6

232561600

$1.15

600v

Hex. Flange Screw M6 X 20

207662034

$2.11
