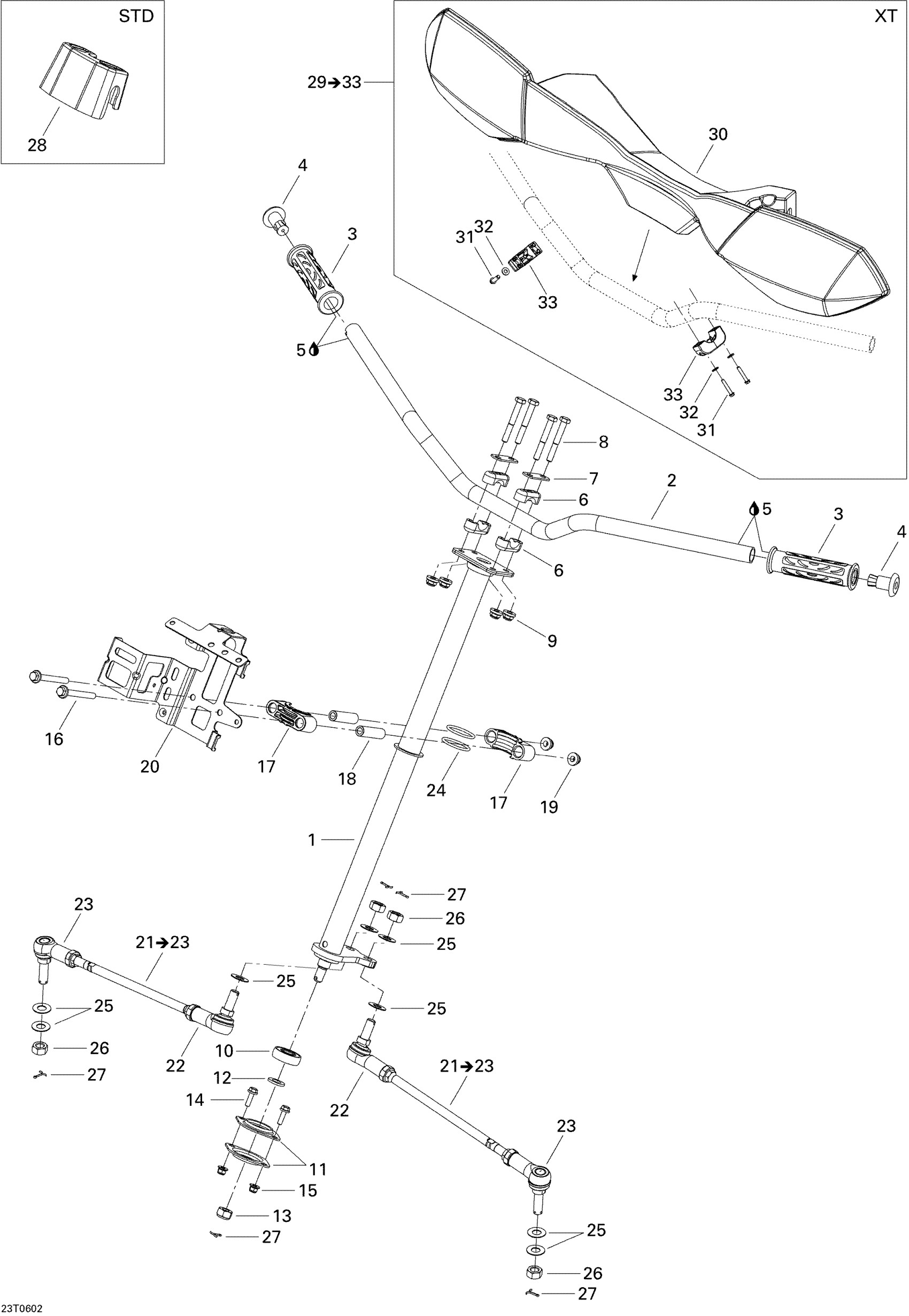

Can-Am Outlander MAX 800 XT 4 X 4, 2006 07- Steering System XT Diagram

Main Tube, Black

709400971

$184.99

Black, Handle Bar

709401240

$69.99

Handle Grip

709400493

$14.83

END-PIECE - Call your local BRP dealership | DS 650

709400189

Unavailable

Loctite 406, 7 Oz

293800100

$36.99

Steering Support

709400919

$22.49

Stiffner

709400509

$4.69

Hex. Screw M8 X 60

207086046

$2.85

Hex. Elastic Flange Nut M8

233281416

$1.48

Ball Bearing

709400439

$19.49

FLANGE, BEARING - Call your local BRP dealership

709400152

Unavailable

Flat Washer 12 mm

234021410

$0.72

Hex. Flange Elastic Nut M12

250000047

$1.90

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Hex. Flange Screw M8 X 70

207687044

$7.41

Half Bushing

709400471

$14.30

BUSHING - Call your local BRP dealership

709400072

Unavailable

Hex. Flange Elastic Nut M8

233281414

$1.47

MODULE SUPPORT - Call your local BRP dealership

709400751

Unavailable

Tie Rod Ass'y | Includes 21 to 23

709400190

Unavailable

Ball Joint, RH Threads

709400487

$52.99

LH Ball Joint

709402303

$36.99

O-Ring

293300068

$7.65

Hardened Washer

706200281

$2.85

Nut M12

250100099

$2.09

Cotter Pin

211400013

$0.37

Not Available As Spare Parts

XXX

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Handle Bar Protector | XT

709400822

$90.99

Hex. Flange Screw K40 X 25

241142560

$2.64

Flat Washer | XT

211200035

$0.55

U-Clamp | XT

517303264

$11.99
