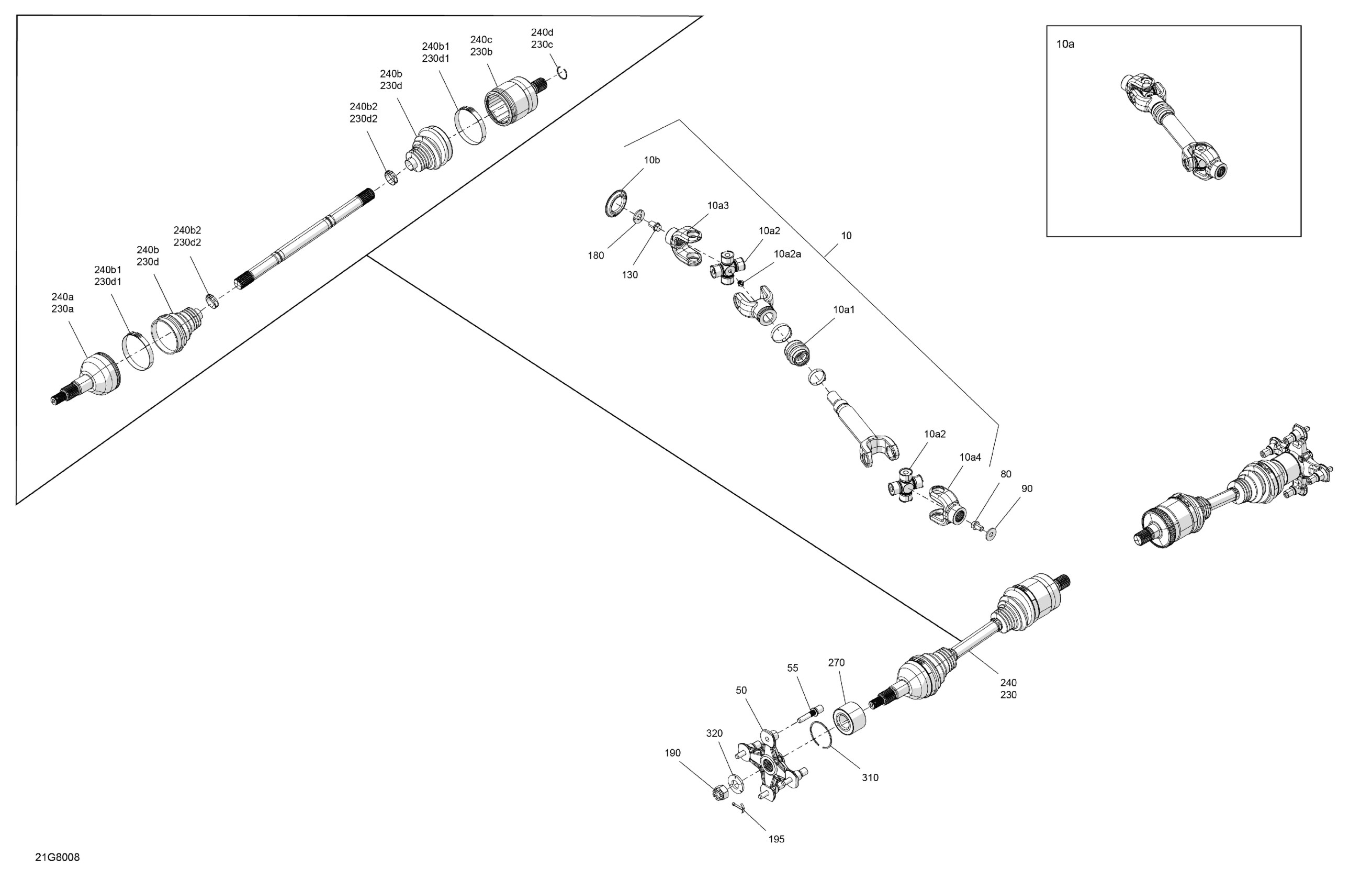

Can-Am T Regulation - OUTLANDER - 4X4 - DPS - 570 EFI - 4AJC - Orange Crush, 2018 04- Drive - Rear - Common Parts Diagram

Description

Price

Shaft Ass'y Kit

703500988

$328.49

10a

Not Available As Spare Parts

XXX

Unavailable

10a1

Rubber Boot

715900118

$14.30

10a2

Universal Joint Ass'y | T3

703500846

$59.49

10a2a

Grease Fitting | T3

715900295

$5.24

10a3

Yoke

715900499

$24.99

10a4

Yoke

715900438

$24.99

10b

Protector

705501123

$7.55

Wheel Hub Ass'y

705501716

$105.99

Wheel Stud | Tightening Torque: See Bulletin ATV 2020-4

250300643

$5.03

Hex. Flange Screw M10 X 16 S.GRIP

250001044

$2.11

Flat Washer M10 | 4X4

250200014

$1.49

130

Hex Flange Screw M12 X 16

250001039

$2.11

180

Conical Spring Washer M12

250200005

$3.27

190

Hex. Flange Castellated Nut M18

232291413

$7.98

195

Cotter Pin

250400071

$2.11

230

RH Homocinetic Joint | Includes 230 to 230d2

705502577

$243.99

230a

CV Joint

705501776

$259.49

230b

Plunging Joint

715900604

$110.99

230c

Circlip

705501781

$6.50

230d

Boot Kit

705501864

$42.49

230d1

Oetiker Clamp, 82.1 mm

715900241

$10.33

230d2

Oetiker Clamp, 27.3 mm

715900242

$10.33

240

LH Rear - Premium CV Axle | Includes 58a to 63a

705501485

$243.99

240a

CV Joint

705501776

$259.49

240b

Boot Kit

705501864

$42.49

240b1

Oetiker Clamp, 82.1 mm

715900241

$10.33

240b2

Oetiker Clamp, 27.3 mm

715900242

$10.33

240c

PLUNGING JOINT - Call your local BRP dealership

705501780

Unavailable

240d

Circlip

705501781

$6.50

270

Ball Bearing

293350150

$52.99

310

Circlip

293370019

$4.68

320

Conical Spring Washer M18

250200171

$7.65
