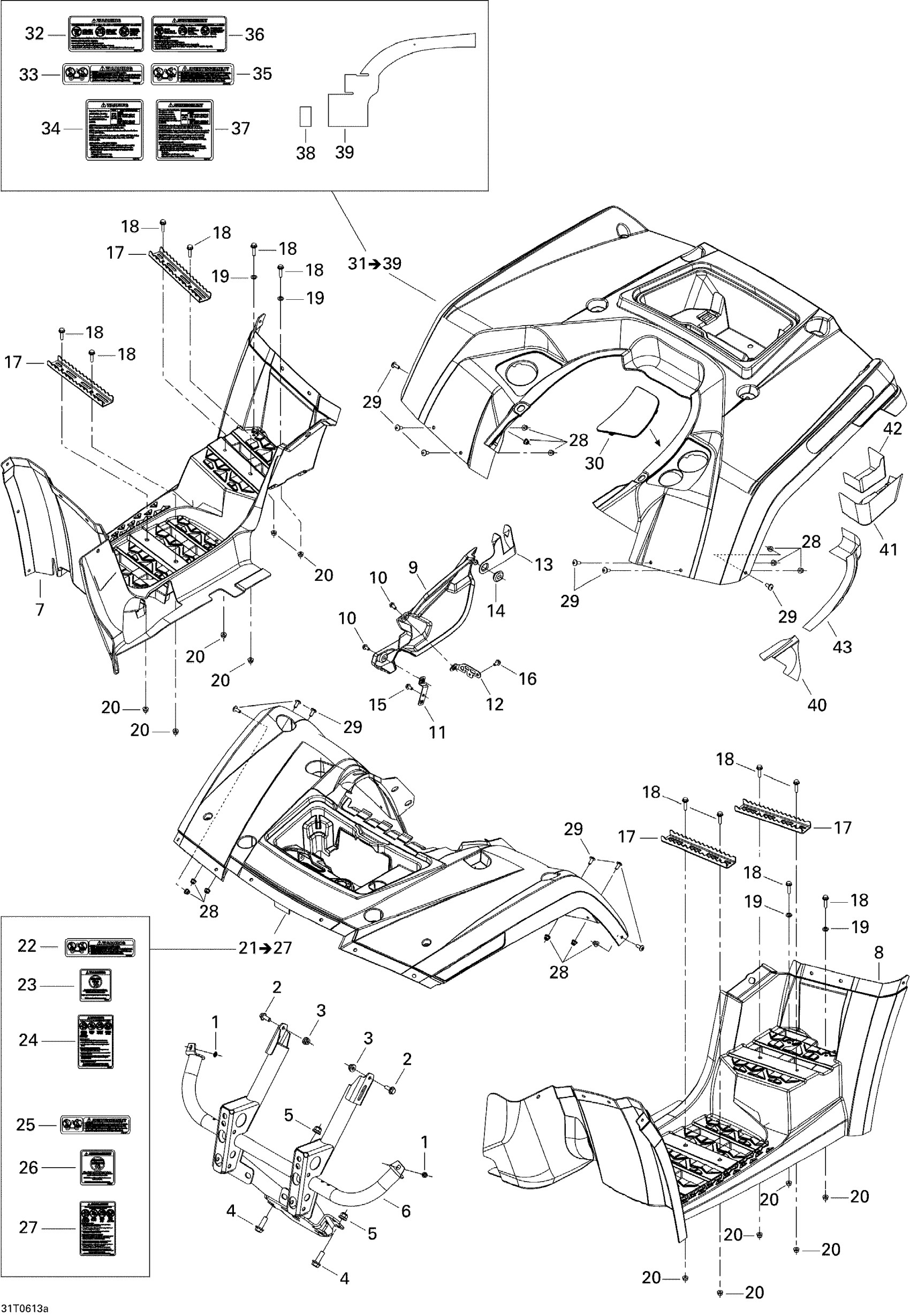

Can-Am Outlander MAX 650 XT 4 X 4, 2006 09- Body And Accessories 1, MAX XT Diagram

#

Description
Price

1

Push Nut

732610072

$2.19

2

Hex. Flange Screw M8 X 20

207682044

$1.15

3

Hex. Flange Elastic Nut M8

233281414

$1.47

4

Hex. Flange Screw M10 X 30

207603044

$2.11

5

Hex. Flange Elastic Nut M10

233201414

$1.58

6

Front Bumper

705003196

$312.49

7

RH Footboard

705002487

$184.99

8

LH Footboard

705003633

$184.99

9

ENGINE COVER - Call your local BRP dealership

705003839

Unavailable

10

Hex. Flange Screw M6 X 12

210261250

$1.90

11

Engine Cover Support

705003646

$9.23

12

Engine Cover Support

705011461

$10.49

13

ENGINE COVER SUPPORT - Call your local BRP dealership

705002121

Unavailable

14

Oval Washer

705005156

$4.97

15

Hex. Flange Screw M6 X 12

210261250

$1.90

16

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.90

17

Footrest

705003648

$43.99

18

Hex. Flange Screw M6 X 25

207662554

$1.48

19

Lock Washer M6, Black

234161471

$0.53

20

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

21

FRONT FENDER KIT, RED - Call your local BRP dealership | Includes 21 to 27, Viper Red

715000840

Unavailable

21

FRONT FENDER KIT, YELLOW - Call your local BRP dealership | Includes 21 to 27, Yellow

703500589

Unavailable

22

Warning Decal, Load | English Version

704901089

Unavailable

23

Warning Decal, Under 16 Years Old | English Version

704901753

Unavailable

24

Warning Decal, Death And Injuries | English Version

704901749

Unavailable

25

Warning Decal, Load | French Version

704901090

Unavailable

26

WARNING DECAL, UNDER 16 YEARS OLD - Call your local BRP dealership | French Version

704900436

Unavailable

27

Warning Decall, Death And Injuries | French Version

704900905

Unavailable

28

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

29

Torx Truss Screw M6 X 16

250000721

$1.69

30

LH Rear Body Panel Cap

705017923

$13.99

31

REAR FENDER KIT, RED - Call your local BRP dealership | Includes 31 to 39, Viper Red

715000798

Unavailable

31

REAR FENDER KIT, YELLOW - Call your local BRP dealership | Includes 31 to 39, Yellow

703500560

Unavailable

32

WARNING DECAL, PASSENGER - Call your local BRP dealership

704901762

Unavailable

33

Warning Decal, Load | English Version

704901089

Unavailable

34

WARNING DECAL, TIRE PRESSURE - Call your local BRP dealership

704902402

Unavailable

35

Warning Decal, Load | French Version

704901090

Unavailable

36

WARNING DECAL, UNDER 12 YEARS OLD - Call your local BRP dealership | French Version

704901122

Unavailable

37

Warning Decal, Tire Pressure | French Version

704902403

Unavailable

38

Heat Shield | Europe

517305451

$2.29

39

REFLECTIVE SHEET - Call your local BRP dealership

705002043

Unavailable

40

REFLECTIVE SHEET - Call your local BRP dealership

705002014

Unavailable

41

Reflective Sheet

705002191

$9.69

42

REFLECTIVE SHEET - Call your local BRP dealership

705002189

Unavailable

43

Reflective Sheet

705002085

$12.99
