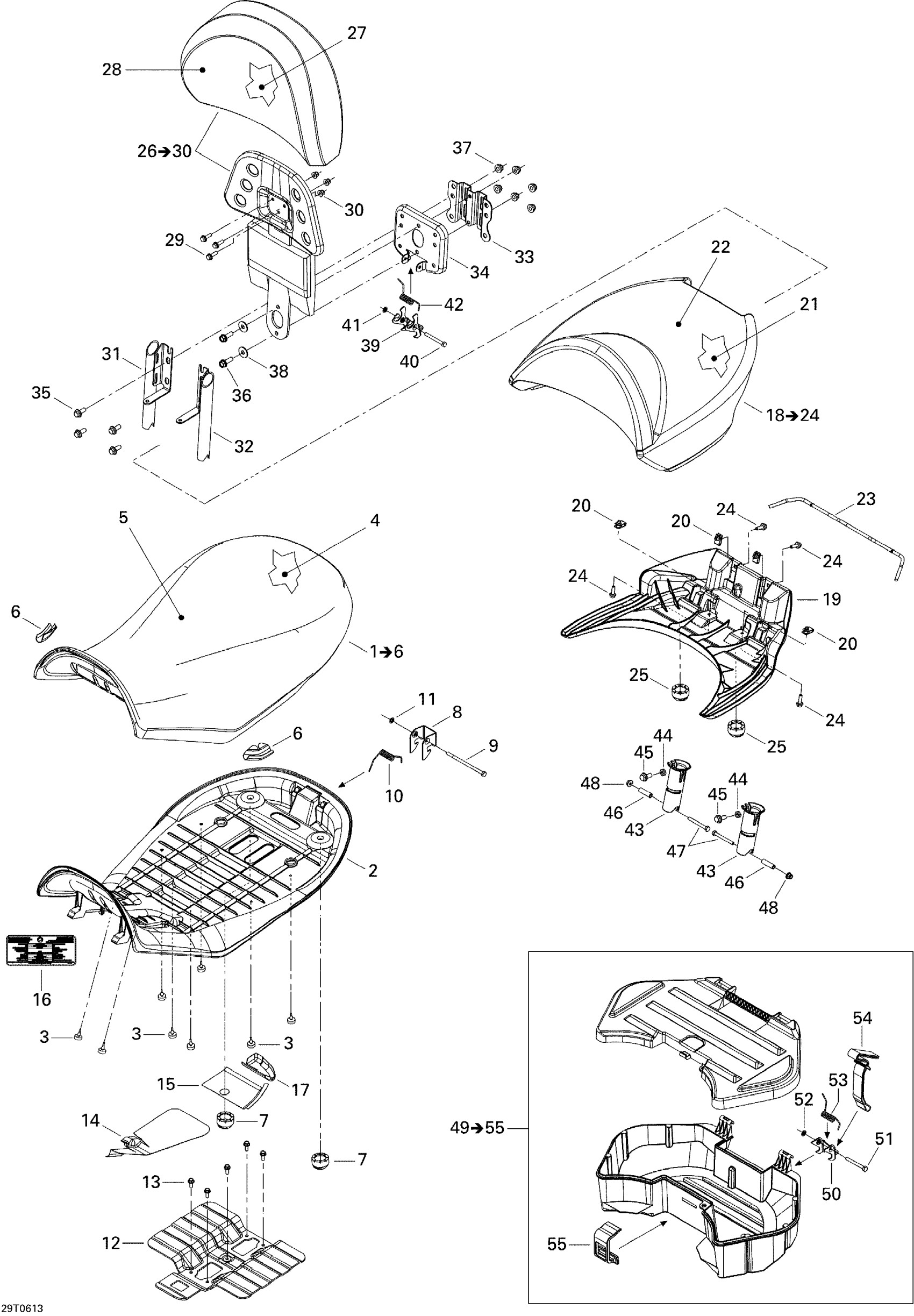

Can-Am Outlander MAX 650 STD 4 X 4, 2006 09- Seat Diagram

#

Description
Price

1

Seat Assembly | Includes 1 to 6

708001649

$489.99

2

Seat Base

708000403

Unavailable

3

Rubber Stopper

708000759

$4.19

4

Seat Foam

708000404

Unavailable

5

Seat Cover

708000538

$88.99

6

SEAT CORNER, BLACK - Call your local BRP dealership

708000127

Unavailable

7

Bumper Rubber

708000760

$10.49

8

Latch, Black

708000144

$11.99

9

Hex. Screw M6 X 110

230061044

$1.48

10

Spring

708000369

$9.19

11

Push Nut

732610072

$2.19

12

REINFORCEMENT SEAT - Call your local BRP dealership

708000817

Unavailable

13

Hex. Flange Screw M6 X 12

210261250

$1.90

14

REFLECTING SHEET - Call your local BRP dealership

708000956

Unavailable

15

REFLECTING SHEET - Call your local BRP dealership

708000470

Unavailable

16

Emission Label

704901261

Unavailable

17

HEAT SHIELD - Call your local BRP dealership

708000957

Unavailable

18

Rear Seat Ass'y | Includes 16 to 20

708000805

$234.99

19

Seat Base

708000455

Unavailable

20

Panel Nut M6 X 1.0

250100198

$2.11

21

Seat Foam

708000456

Unavailable

22

Seat Cover

708000457

$164.49

23

LATCH HANDLE - Call your local BRP dealership

708000822

Unavailable

24

Hex. Flange Screw M6 X 20

207662044

$2.00

25

Bumper Rubber

708000760

$10.49

26

Backrest Ass'y

708000809

$519.99

27

Backrest Foam

708000464

Unavailable

28

Backrest Cover

708000465

$126.99

29

Hex. Flange Screw M6 X 20

207662044

$2.00

30

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

31

LH BACKREST STEM - Call your local BRP dealership

708000439

Unavailable

32

RH BACKREST STEM - Call your local BRP dealership

708000443

Unavailable

33

REAR PLATE - Call your local BRP dealership

708000855

Unavailable

34

FRONT PLATE - Call your local BRP dealership

708000446

Unavailable

35

Hex. Flange Screw M8 X 20

207682044

$1.15

36

Hex. Flange Screw M8 X 25

207682544

$1.35

37

Hex. Flange Elastic Nut M8

233281414

$1.47

38

Flat Washer 8 mm

234082410

$1.47

39

LATCH - Call your local BRP dealership

708000448

Unavailable

40

Hex. Screw M6 X 55

207065544

$2.11

41

Push Nut

732610072

$2.19

42

Spring

708000369

$9.19

43

ROD GUIDE - Call your local BRP dealership

708000461

Unavailable

44

Hex. Jam Nut M8

232180600

$0.67

45

Hex. Screw M8 X 20

207182044

$0.74

46

INNER BUSHING - Call your local BRP dealership

708000462

Unavailable

47

HEX. CAP SCREW M6 X 50 - Call your local BRP dealership

207065044

Unavailable

48

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

49

BOX ASS'Y - Call your local BRP dealership | Includes 41 to 47

708200119

Unavailable

50

LATCH - Call your local BRP dealership

708200066

Unavailable

51

Hex. Screw M6 X 55

207065544

$2.11

52

Push Nut

732610072

$2.19

53

Spring

708000369

$9.19

54

BELT - Call your local BRP dealership

510004495

Unavailable

55

Cover Latch

708200120

$15.99
