Description

Price

205

Clip

270000141

$11.49

206

Pop Rivet 3/16"

390402300

$0.75

207

Washer | DS 650 X

391301600

$0.48

212

Connector Ass'y | STD / Includes 7 to 10

710000917

$12.71

212a

Female Terminal Housing, 3 Circuits | XT Models

278000281

$9.85

212b

Wire Seal

278000216

$3.19

212c

Clip

710000992

$4.29

282

Clip

414227300

$1.67

395

Open Clamp

518321570

$7.69

398

Torx Screw K50 X 16

250000720

$1.69

500

Multi-Function Handle | Except Model Europe, Except Model STD

710005070

$69.99

501

Socket Head Screw M5 X 35

205053588

$1.90

530

Terminal Dess One-Wire | Except Model Europe

515178840

$83.49

535

Safety Nut (DESS Switch)

278002963

$3.28

600

Speedometer | Includes 600 to 600b

710005553

$339.99

600a

Trim Ring Ass'y

710001183

$19.99

600a1

BRP Logo 13 MM

516010651

$12.49

600b

Button

715900265

$13.71

630

Green Key RFID | Except Model Europe, Except T3

710005232

$63.49

640

Grey Key RFID | Except Model Europe, Except T3

710004964

$63.49

709

Low Beam Ass'y | Includes 1 to 2

710002524

$104.99

709

High Beam Ass'y | Includes 11 to 12

710002525

$119.99

709a

LH Low Front Housing

710001083

$19.99

709a1

Halogen Bulb

415129249

$41.49

709b

LH Low Rear Housing

710001084

$12.99

709c

Setting Screw

710001147

$12.71

709d

LH Low Light Support

710006353

$26.99

709f

Low Beam Ass'y | Includes 1 to 2

710002524

$104.99

709g

Hex. Screw M4 X 25

207142544

$2.00

709h

Flat Washer M5

234051410

$0.53

709j

Elastic Stop Nut M4

232541414

$0.58

709k

Phillips Screw K40 X 16

250000723

$0.98

709m

Painted Headlamp Support

705004309

$16.99

709n

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.47

709p

Light Harness

710005944

$30.99

709q

LH High Front Housing

710001087

$19.99

709r

LH High Rear Housing

710001088

$12.99

709s

LH High Light Support

710005853

$5.29

709t

High Beam Ass'y | Includes 11 to 12

710002525

$119.99

709u

LH Front Facia

705004508

$51.99

709v

Clip

414227300

$1.67

710

Low Beam Ass'y | Includes 1 to 2

710002524

$104.99

710

High Beam Ass'y | Includes 11 to 12

710002525

$119.99

710a

RH Low Front Housing

710001081

$19.99

710a1

Halogen Bulb

415129249

$41.49

710b

RH Low Rear Housing

710001082

$12.99

710c

Setting Screw

710001147

$12.71

710d

RH Low Light Support

710006354

$20.99

710f

Low Beam Ass'y | Includes 1 to 2

710002524

$104.99

710g

Hex. Screw M4 X 25

207142544

$2.00

710h

Flat Washer M5

234051410

$0.53

710j

Elastic Stop Nut M4

232541414

$0.58

710k

Phillips Screw K40 X 16

250000723

$0.98

710m

Painted Headlamp Support

705004309

$16.99

710n

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.47

710p

Light Harness

710005944

$30.99

710q

RH High Front Housing

710001085

$19.99

710r

RH High Rear Housing

710001086

$12.99

710s

RH High Light Support

710005856

$5.29

710t

High Beam Ass'y | Includes 11 to 12

710002525

$119.99

710u

RH Front Facia

705004509

$51.99

710v

Clip

414227300

$1.67

950

DC Outlet

710001248

$37.99

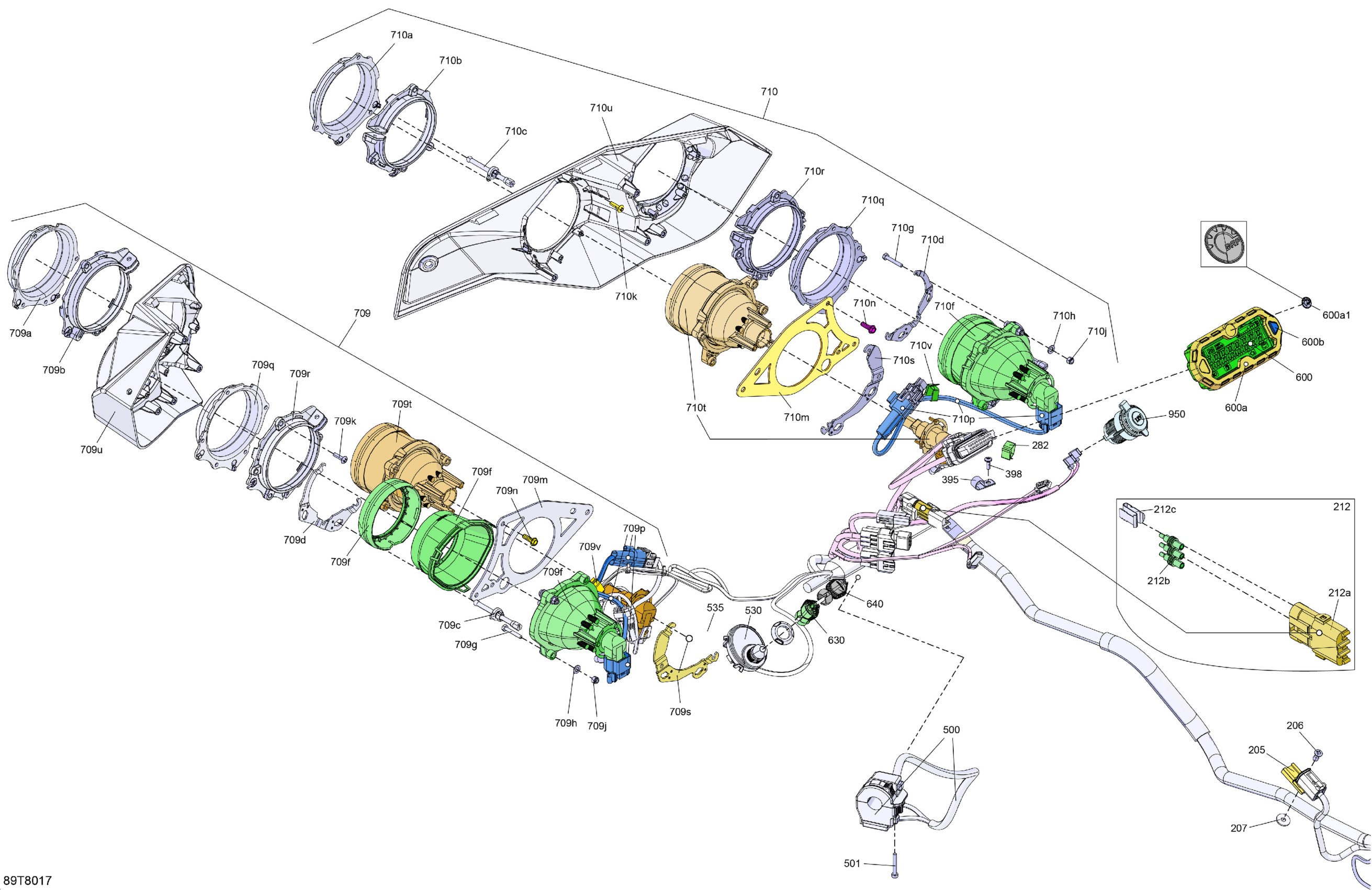

Can-Am North America - RENEGADE - 4X4 - XMR - 570 EFI - 4TJA - Can-Am Red, 2018 08- Electric - Front Section Diagram

Clip

Pop Rivet 3/16"

Washer | DS 650 X

Connector Ass'y | STD / Includes 7 to 10

Female Terminal Housing, 3 Circuits | XT Models

Wire Seal

Clip

Clip

Open Clamp

Torx Screw K50 X 16

Multi-Function Handle | Except Model Europe, Except Model STD

Socket Head Screw M5 X 35

Terminal Dess One-Wire | Except Model Europe

Safety Nut (DESS Switch)

Speedometer | Includes 600 to 600b

Trim Ring Ass'y

BRP Logo 13 MM

Button

Green Key RFID | Except Model Europe, Except T3

Grey Key RFID | Except Model Europe, Except T3

Low Beam Ass'y | Includes 1 to 2

High Beam Ass'y | Includes 11 to 12

LH Low Front Housing

Halogen Bulb

LH Low Rear Housing

Setting Screw

LH Low Light Support

Low Beam Ass'y | Includes 1 to 2

Hex. Screw M4 X 25

Flat Washer M5

Elastic Stop Nut M4

Phillips Screw K40 X 16

Painted Headlamp Support

Hex. Flange Screw K50 X 2.24 X 16

Light Harness

LH High Front Housing

LH High Rear Housing

LH High Light Support

High Beam Ass'y | Includes 11 to 12

LH Front Facia

Clip

Low Beam Ass'y | Includes 1 to 2

High Beam Ass'y | Includes 11 to 12

RH Low Front Housing

Halogen Bulb

RH Low Rear Housing

Setting Screw

RH Low Light Support

Low Beam Ass'y | Includes 1 to 2

Hex. Screw M4 X 25

Flat Washer M5

Elastic Stop Nut M4

Phillips Screw K40 X 16

Painted Headlamp Support

Hex. Flange Screw K50 X 2.24 X 16

Light Harness

RH High Front Housing

RH High Rear Housing

RH High Light Support

High Beam Ass'y | Includes 11 to 12

RH Front Facia

Clip

DC Outlet
