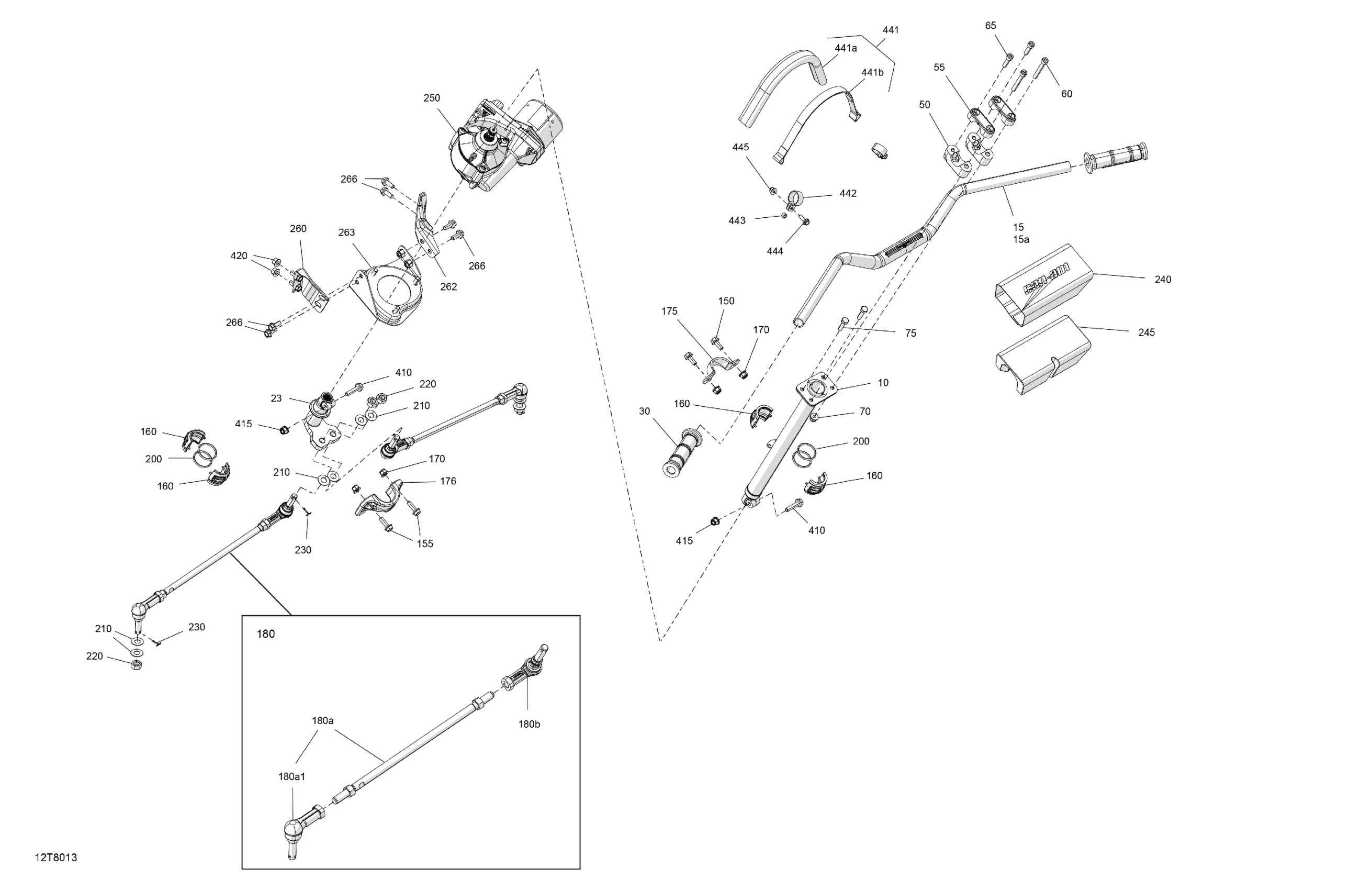

Can-Am North America - RENEGADE - 4X4 - XMR - 1000R - 4FJC - Can-Am Red, 2018 03- Mechanic - Steering Diagram

Main Tube Kit | Model With DPS

703501108

$74.99

Red, Handle Bar | Package XMR Engine 1000 Red Model

709401643

$99.49

Aluminum Handle Bar

709400513

$63.49

Pitman Arm | Model XMR

703501161

$43.99

Handle Grip

709400493

$14.83

Lower Mounting Clamp

709402750

$25.99

Support

709400496

$22.49

Socket Head Screw M8 X 60

205086060

$4.12

Socket Screw M8 X 30

205083060

$2.96

Hex. Elastic Flange Nut M8

233281416

$1.48

Hex. Screw M8 X 30

207183060

$1.58

Hex. Flange Screw M8 X 20

207682044

$1.15

Hex. Flange Screw M8 X 25

207682544

$1.35

Spherical Half Bushing

709400783

$7.65

Hex. Flange Elastic Nut M8

233281414

$1.47

Upper Column Attachment

709400827

$1.09

Column Attachment

709401428

$38.99

Rod-Tie Ass'y | Incl 36

703501037

$110.99

Rod-Tie Ass'y | Incl 36

703501037

$110.99

LH Ball Joint

709402303

$36.99

RH Ball Joint

709402302

$36.99

O-Ring

293300068

$7.65

Hardened Washer

706200281

$2.85

Nut M12

250100099

$2.09

Cotter Pin

211400013

$0.37

Cover | Package XMR Engine 1000 Red Model

709402112

$33.99

Foam

709400422

$17.49

Power Steering Ass'y | Model With DPS

709403187

$1,218.99

LH Power Steering Bracket | Model With DPS

709402184

$18.49

RH Bracket | Model With DPS

709402185

$28.99

Power Steering Support | Model With DPS

709401743

$19.99

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

Hex. Flange Screw M8 X 35

250000986

$2.11

Hex. Elastic Flange Nut M8

233281416

$1.48

Hex. Flange Nut M8

233081416

$1.15

Strap Ass'y | Package XMR

506152115

$44.49

Not Available As Spare Parts

XXX

Unavailable

Not Available As Spare Parts

XXX

Unavailable

Collar Tube | Package XMR

709401720

$19.99

Bushing | Package XMR

506152156

$5.61

Hex. Flange Screw M6 X 20

207662054

$1.01

Hex. Flange Elastic Nut M6

233261466

$2.00
