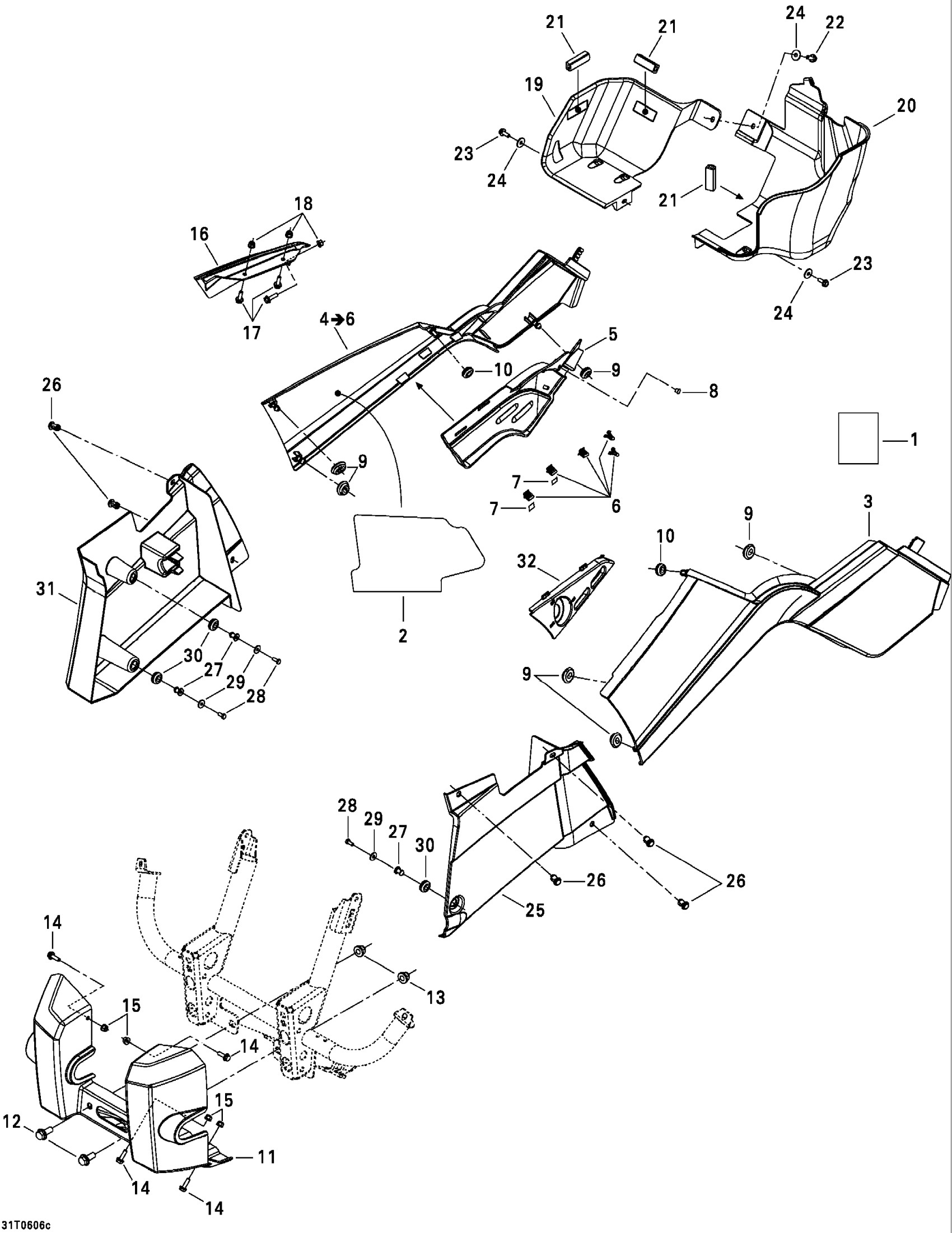

Can-Am Outlander MAX 400 XT 4 X 4, 2006 09- Body And Accessories Diagram

#

Description
Price

1

Heat Shield | Europe

517305451

$2.29

2

REFLECTIVE SHEET - Call your local BRP dealership

705000750

Unavailable

3

PANEL_BODY LH B-176 - Call your local BRP dealership

705003484

Unavailable

3

LH PANEL, LAURENTIAN GREEN - Call your local BRP dealership

705000915

Unavailable

3

PANEL_BODY LH B-190 - Call your local BRP dealership

705003483

Unavailable

4

RH Panel, Viper Red | Includes Item 3, 5, and 7

703500411

Unavailable

4

RH Panel, Laurentian Green | Includes Item 3, 5, and 7

703500412

Unavailable

4

RH Panel, Yellow | Includes Item 3, 5, and 7

703500413

Unavailable

5

Muffler Cover

705000689

Unavailable

6

Edge Clip

517302785

$0.88

7

Heat Shield | Europe

517305451

$2.29

8

Rubber Bumper

293830005

$8.09

9

Oval Washer

705005156

$4.97

10

Grommet

705003264

$4.09

11

GUARD PLATE - Call your local BRP dealership | STD

705003495

Unavailable

12

Hex. Flange Screw M10 X 25

207602544

$1.69

13

Hex. Flange Elastic Nut M10

233201414

$1.58

14

Hex. Flange Screw M6 X 20

207662044

$2.00

15

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

16

LEVER INDICATOR - Call your local BRP dealership

705001529

Unavailable

17

Hex. Flange Screw M6 X 20

207662044

$2.00

18

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

19

RH TANK PROTECTOR - Call your local BRP dealership

705000554

Unavailable

20

LH TANK PROTECTOR - Call your local BRP dealership

705002176

Unavailable

21

Was 293200017 Neoprene Seal

219704365

$149.99

22

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

23

Hex. Flange Screw M6 X 12

210261250

$1.90

24

Flat Washer

250200082

$0.42

25

LH Inner Fender

705000652

$39.99

26

Tuflok Plastic Rivet

293150230

$1.47

27

Knob

517303439

$4.55

28

Torx Screw K50 X 16

250000720

$1.69

29

Washer | DS 650 X

391301600

$0.48

30

Grommet

709000582

$4.69

31

INNER FENDER - Call your local BRP dealership

705002640

$36.99

32

VALVE SUPPORT - Call your local BRP dealership

705001691

Unavailable
