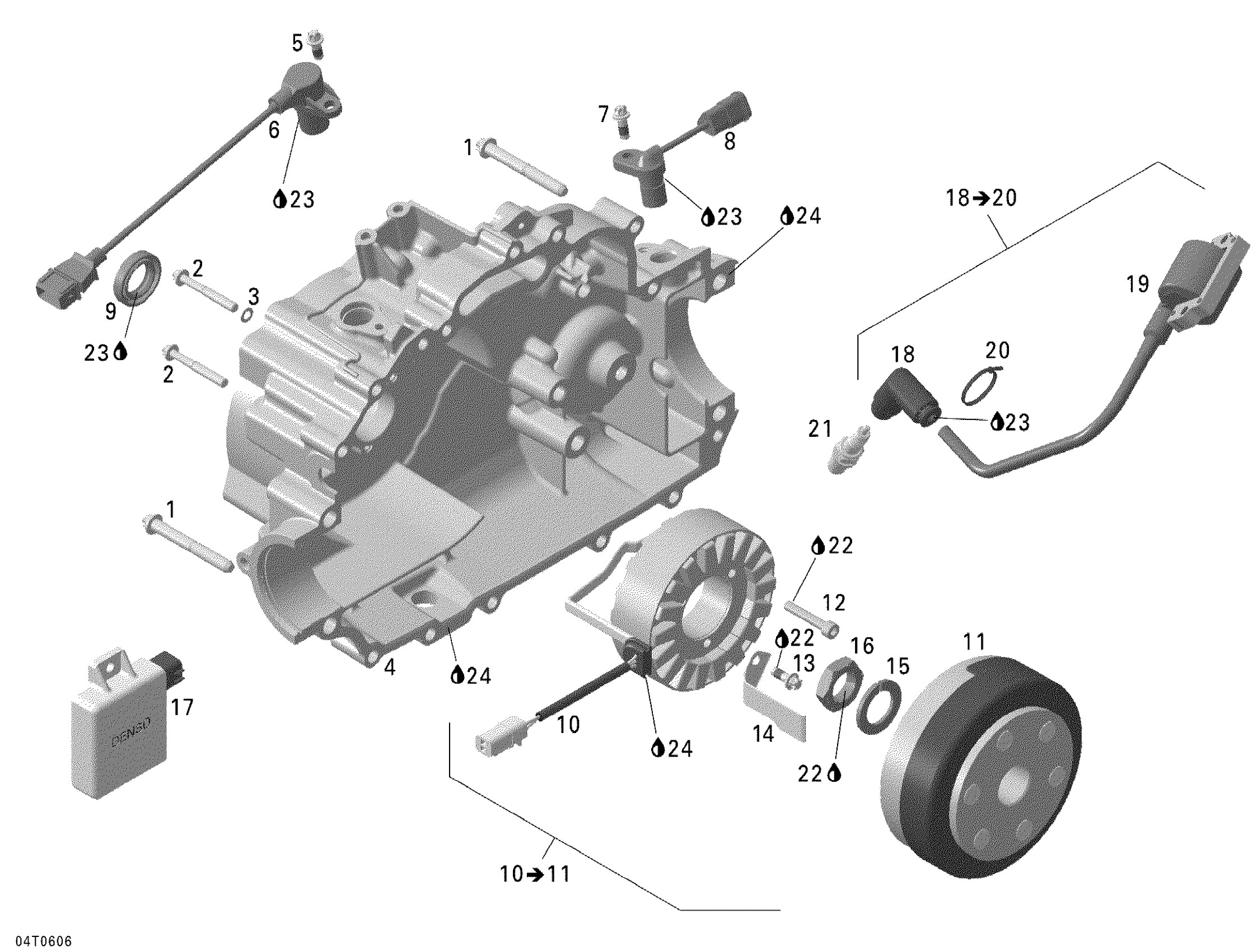

Can-Am Outlander MAX 400 XT 4 X 4, 2006 03- Magneto Diagram

#

Description
Price

1

Torx Flange Screw M8 X 65

420440402

$7.41

2

Torx Flange Screw M6 X 45

420440324

$0.98

3

Seal Washer

420230415

$1.79

4

Not Available As Spare Part - Friction Washer

Unavailable

5

Torx Flange Screw M6 X 16

420440162

$3.17

6

Crankshaft Position Sensor Ass'y | Includes 10 to 11

420966570

$109.99

7

Torx Flange Screw M6 X 16

420440162

$3.17

8

Speed Sensor

420265723

$109.99

9

Oil Seal

420930392

$15.81

10

AC Generator | Includes 10 à 11

420684040

Unavailable

10

STATOR ASS'Y - Call your local BRP dealership

420684850

Unavailable

11

MAGNETO FLYWHEEL - Call your local BRP dealership

420684045

Unavailable

12

Torx Flange Screw M6 X 35

420440274

$1.01

13

Torx Flange Screw M6 X 16

420440162

$3.17

14

Inner Cable Cover

420251270

$12.12

15

Lock Washer, 22 mm

420945759

$1.90

16

Hex. Nut, M22 X 1.5

420842239

$17.53

17

AMPLIFIER BOX - Call your local BRP dealership | 400HO

420664285

Unavailable

18

IGNITION COIL ASS'Y - Call your local BRP dealership | Includes 57 to 58

420265358

Unavailable

18

Spark Plug Connector

420265248

$31.99

19

Not Available As Spare Part - Friction Washer

Unavailable

20

Not Available As Spare Part - Friction Washer

Unavailable

21

Spark Plug, NGK DCP-R8E

715900637

$6.35

22

Loctite 243, 10 ml

293800060

$21.49

23

Grease, Super Lube

293550030

$28.99

24

Loctite 5910, 300 ml

293800081

$57.99
