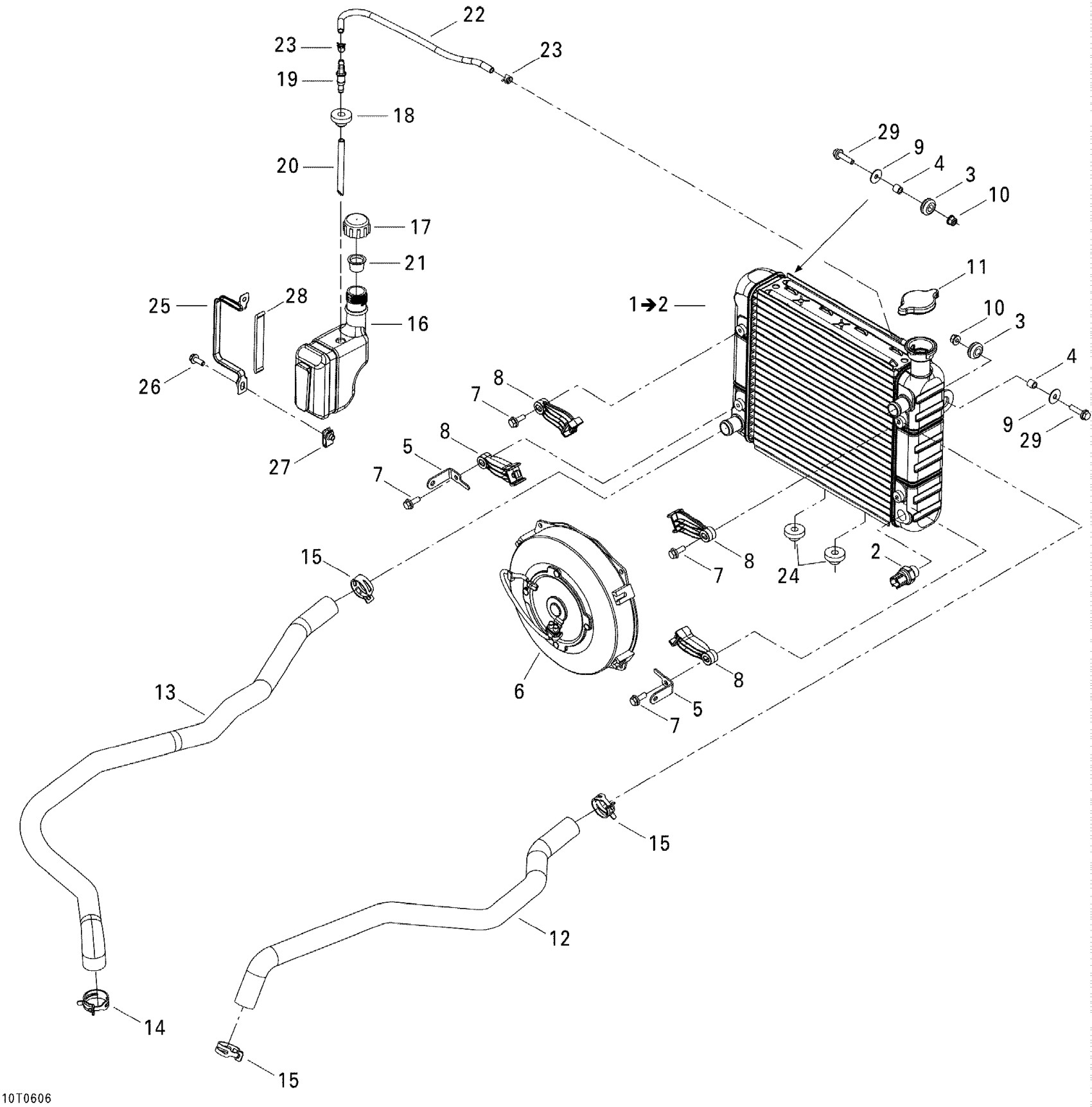

Can-Am Outlander MAX 400 XT 4 X 4, 2006 01- Cooling System Diagram

#

Description
Price

1

RADIATOR ASS'Y - Call your local BRP dealership | Includes 1 to 2

709200149

Unavailable

2

Temperature Sensor

715900095

$70.99

3

Grommet

709000582

$4.69

4

Bushing

293900105

$7.65

5

SUPPORT - Call your local BRP dealership

709200284

Unavailable

6

Fan Ass'y

709200158

Unavailable

7

Hex. Flange Screw M6 X 25

207562544

$1.69

8

FAN SUPPORT - Call your local BRP dealership

709200159

Unavailable

9

Flat Washer

250200082

$0.42

10

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

11

Radiator Pressure Cap

709200207

$25.49

12

RADIATOR INLET HOSE - Call your local BRP dealership

709200077

Unavailable

13

RADIATOR OUTLET HOSE - Call your local BRP dealership

709200123

Unavailable

14

Norma Spring Clamp

293650108

$4.12

15

Norma Spring Clamp

293650109

$4.12

16

COOLANT TANK - Call your local BRP dealership

709200099

Unavailable

17

TANK CAP - Call your local BRP dealership

709200009

Unavailable

18

Grommet

709200285

$9.69

19

Elbow Male Connector

414580600

$4.23

20

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$121.99

21

PROTECTION CAP - Call your local BRP dealership

709200205

Unavailable

22

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$121.99

23

Spring Clamp

414554800

$0.88

24

Grommet

709200285

$9.69

25

TANK ANCHOR - Call your local BRP dealership

709200080

Unavailable

26

Hex. Flange Screw M6 X 16

210261650

$1.67

27

Panel Nut M6 X 1.0

250100198

$2.11

28

Gasket, Neoprene 2000Mm Long

219704476

$15.36

29

Hex. Flange Screw M6 X 25

207662544

$0.64
