Description

Price

1

RH Caliper | Includes 1 to 9

705600575

$280.99

2

Brake Pad Kit

705600349

$51.99

3

Piston Set

705600078

$38.99

4

Spring

705600079

$15.81

5

Bleeding Screw

705600080

$16.87

6

Pin Set (2)

705600081

$20.49

7

Compression Boot

705600082

$10.06

8

Compression Boot

705600083

$10.06

9

Not Available As Spare Part - Friction Washer

Unavailable

10

LH Caliper | Includes 10 to 18

705600576

$280.99

11

Brake Pad Kit

705600350

$51.99

12

Piston Set

705600078

$38.99

13

Spring

705600079

$15.81

14

Bleeding Screw

705600080

$16.87

15

Pin Set (2)

705600081

$20.49

16

Compression Boot

705600082

$10.06

17

Compression Boot

705600083

$10.06

18

LH Caliper Support

705600297

Unavailable

19

Front Master Cylinder | Includes 19 to 26

705600844

$229.99

20

Lever Arm

705600243

$54.99

21

PISTON KIT - Call your local BRP dealership

705600244

Unavailable

22

Cap Set

705600084

$24.99

23

Brake Lever Bolt Kit

705600246

$14.81

24

BRACKET KIT - Call your local BRP dealership

705600087

Unavailable

25

CIRCLIP - Call your local BRP dealership

705600088

Unavailable

26

COMPRESSION BOOT - Call your local BRP dealership

705600089

Unavailable

27

PARKING KIT, BRAKE LEVER LOCK - Call your local BRP dealership

705600477

Unavailable

28

Front Hose | Includes 28 to 29

705600925

$169.49

29

Clamp

293650256

$5.49

30

Hex. Flange Forming Screw M6 X 25

210262580

$1.90

31

Banjo Bolt (M10 x 1.25 thread)

705600609

$0.99

32

Copper Washer

705601628

$4.44

33

BRAKE FLUID, SRF, DOT 4 - Call your local BRP dealership

293600063

Unavailable

33

HYDRAULIC OIL - Call your local BRP dealership

293600131

$9.99

34

REAR HOSE - Call your local BRP dealership | Includes 34 to 45

705600503

Unavailable

35

Clamp

293650256

$5.49

36

Socket Head Screw M8 X 20, Scotch Grip

250000136

$3.70

37

Rear Master Cylinder | Includes 33 to 40

705600254

$224.99

38

Piston Set

705600255

$64.49

39

PUSHER BRACKET, HOSE CONNECTOR - Call your local BRP dealership

705600064

Unavailable

40

Not Available As Spare Part - Friction Washer

Unavailable

41

Circlip

705600068

Unavailable

42

Compression Boot

705600090

Unavailable

43

Not Available As Spare Part - Friction Washer

Unavailable

44

Oil Tank, Brake Fluid Reservoir

705600182

$38.99

45

OIL HOUSING HOSE - Call your local BRP dealership

705600262

Unavailable

46

Pin Kit

219702305

$34.99

47

Yoke

705600100

Unavailable

48

Hex. Nut M8

232081414

$0.72

49

Pop Rivet 3/16"

390406500

$0.88

50

Interrupteur *Brake Switch

710001345

$36.99

51

Was 293800013 Loctite 56765

219704454

$65.99

52

Rear Caliper | Includes 48 to 56

705600577

$317.99

53

LH Brake Pad Kit

705600398

$51.99

54

Piston Set

705600399

Unavailable

55

Spring

705600079

$15.81

56

Bleeding Screw

705600080

$16.87

57

Pin Set (2)

705600081

$20.49

58

Compression Boot

705600082

$10.06

59

Compression Boot

705600083

$10.06

60

LH CALIPER SUPPORT - Call your local BRP dealership

705600298

Unavailable

61

Hex. Flange Screw M8 X 25, Scotch Grip

207582544

$1.69

62

BRAKE PEDAL, BLACK - Call your local BRP dealership

705601154

Unavailable

63

BREAK PEDAL SPRING - Call your local BRP dealership

705600098

Unavailable

64

Synthetic Grease, 400 G

293550010

Unavailable

65

O-RING - Call your local BRP dealership

293300053

Unavailable

66

SPACER - Call your local BRP dealership

705600283

Unavailable

67

Hex. Flange Screw M10 X 55

207605544

$3.38

68

Hex. Flange Elastic Nut M10

233201414

$1.58

69

Hex. Flange Screw M8 X 16, Scotch Grip

207581646

$2.11

70

Conical Spring Washer M8

234281474

$1.48

71

Disk Brake

705600603

$50.99

72

Torx Screw M8 X 16, Scotch Grip

235381646

$2.53

73

Disk Brake

705600604

$50.99

74

Tie Wrap 142 mm

293750002

$1.25

75

Torx Screw M8 X 25, Scotch Grip

250000143

$2.19

76

Hex. Flange Screw M6 X 25

207662544

$0.64

77

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

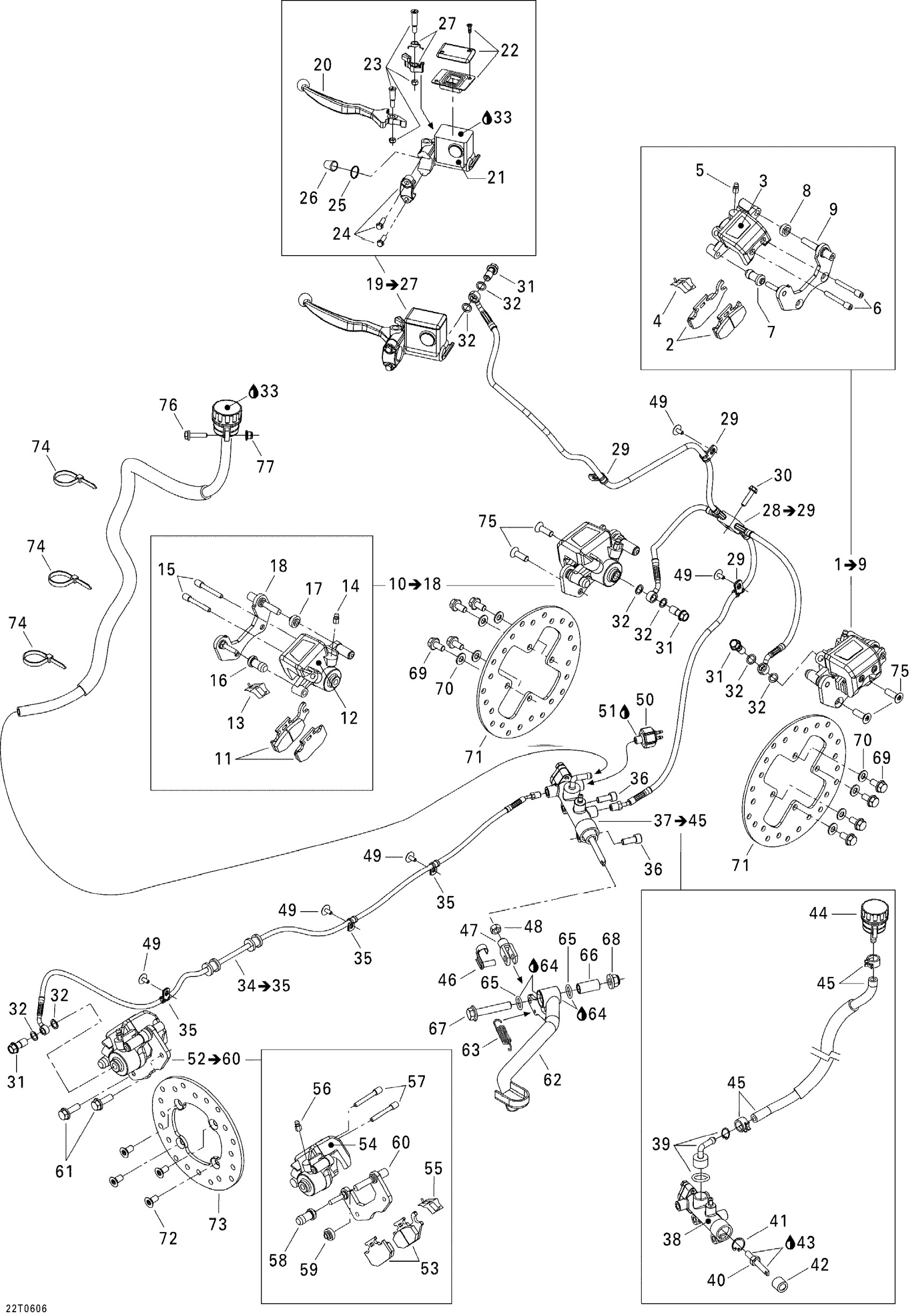

Can-Am Outlander MAX 400 STD 4 X 4, 2006 06- Brakes Diagram

RH Caliper | Includes 1 to 9

Brake Pad Kit

Piston Set

Spring

Bleeding Screw

Pin Set (2)

Compression Boot

Compression Boot

Not Available As Spare Part - Friction Washer

LH Caliper | Includes 10 to 18

Brake Pad Kit

Piston Set

Spring

Bleeding Screw

Pin Set (2)

Compression Boot

Compression Boot

LH Caliper Support

Front Master Cylinder | Includes 19 to 26

Lever Arm

PISTON KIT - Call your local BRP dealership

Cap Set

Brake Lever Bolt Kit

BRACKET KIT - Call your local BRP dealership

CIRCLIP - Call your local BRP dealership

COMPRESSION BOOT - Call your local BRP dealership

PARKING KIT, BRAKE LEVER LOCK - Call your local BRP dealership

Front Hose | Includes 28 to 29

Clamp

Hex. Flange Forming Screw M6 X 25

Banjo Bolt (M10 x 1.25 thread)

Copper Washer

BRAKE FLUID, SRF, DOT 4 - Call your local BRP dealership

HYDRAULIC OIL - Call your local BRP dealership

REAR HOSE - Call your local BRP dealership | Includes 34 to 45

Clamp

Socket Head Screw M8 X 20, Scotch Grip

Rear Master Cylinder | Includes 33 to 40

Piston Set

PUSHER BRACKET, HOSE CONNECTOR - Call your local BRP dealership

Not Available As Spare Part - Friction Washer

Circlip

Compression Boot

Not Available As Spare Part - Friction Washer

Oil Tank, Brake Fluid Reservoir

OIL HOUSING HOSE - Call your local BRP dealership

Pin Kit

Yoke

Hex. Nut M8

Pop Rivet 3/16"

Interrupteur *Brake Switch

Was 293800013 Loctite 56765

Rear Caliper | Includes 48 to 56

LH Brake Pad Kit

Piston Set

Spring

Bleeding Screw

Pin Set (2)

Compression Boot

Compression Boot

LH CALIPER SUPPORT - Call your local BRP dealership

Hex. Flange Screw M8 X 25, Scotch Grip

BRAKE PEDAL, BLACK - Call your local BRP dealership

BREAK PEDAL SPRING - Call your local BRP dealership

Synthetic Grease, 400 G

O-RING - Call your local BRP dealership

SPACER - Call your local BRP dealership

Hex. Flange Screw M10 X 55

Hex. Flange Elastic Nut M10

Hex. Flange Screw M8 X 16, Scotch Grip

Conical Spring Washer M8

Disk Brake

Torx Screw M8 X 16, Scotch Grip

Disk Brake

Tie Wrap 142 mm

Torx Screw M8 X 25, Scotch Grip

Hex. Flange Screw M6 X 25

Hex. Flange Elastic Nut M6 x 1.0
