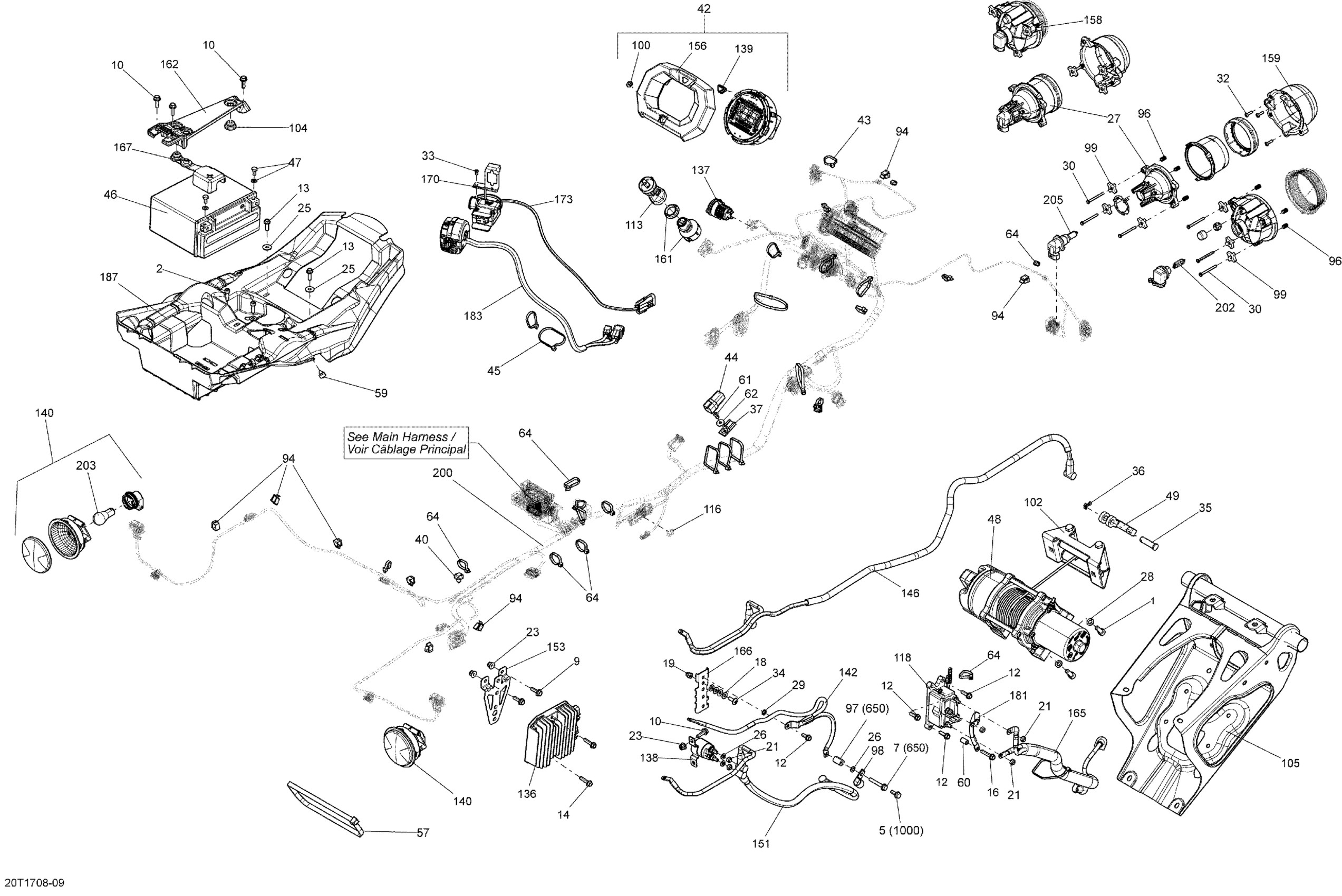

Can-Am 1- Outlander 6X6 - 650 EFI, 2018 10- Electrical System Diagram

Socket Head Screw M8 X 20

205082044

$1.15

Socket Head Screw M6 X 20, Scotch Grip

205562044

$2.11

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

Hex. Flange Screw M6 X 20

207662044

$2.00

Hex. Flange Screw M6 X 20

207662054

$1.01

Hex. Flange Screw M6 X 20

210262040

$2.11

Hexagonal Head Screw

210262050

$2.11

Hex. Flange Forming Screw M6 X 25

210262580

$1.90

Hex. Flange Screw M6 X 40 | Package-XT North America, International

210264040

$1.90

Flat Washer

224061121

$0.53

Domed Nut M6

232361493

$2.11

Elastic Stop Nut M6

232561434

$1.99

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Stainless Steel Flat Washer

234062670

$2.11

Lock Washer Helical M6

234161601

$1.15

High Beam Ass'y | Includes 11 to 12

710002525

$119.99

Lock Washer 8 mm

234181401

$0.92

External Serrated Lock Washer 6 mm

234461608

$1.15

Hex. Screw K40 X 45

250000718

$2.11

Phillips Screw K40 X 16

250000723

$0.98

Hex. Cap Screw 6-32 X 1/4" | XT Models

250000153

$1.69

Torx Head Screw M6 X 16

250000717

$2.11

Clevis Pin

250400021

$13.18

Cotter Pin

250400022

$9.69

Clip

270000141

$11.49

Mount Dart

293730040

$1.04

Speedometer Ass'y | DPS, XT

710003923

$499.99

Lens

415129320

$24.49

Tie Wrap 142 mm

293750002

$1.25

Housing

710003006

$8.79

Tie Wrap 368 mm

293750008

$1.04

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$154.99

Battery Bolt Kit

250000282

$7.29

WINCH - Call your local BRP dealership | Europe

705008546

Unavailable

Winch Hook Kit

705014949

$24.99

Tie-rap 627 mm

293750041

$0.93

Rubber Bumper

293830005

$8.09

Sleeve

293900078

$13.71

Pop Rivet 3/16"

390402300

$0.75

Washer | DS 650 X

391301600

$0.48

Tie-Rap 180 mm

414115200

$0.11

Clip

414227300

$1.67

Spring

517168600

$7.39

Spacer

517203200

$16.18

Open Clamp

518321570

$7.69

Handle

572106600

$10.33

BRP Logo13 mm

704904615

$13.49

Fairlead_Roller Kit

715007699

$83.99

Stopper Rubber

705014429

$5.95

Front Bumper Support

705016893

$349.99

Grey Key RFID | Except Model Europe, Except T3

710004964

$63.49

Grey, Electronic Key

710002183

$63.49

Clip

710000992

$4.29

Winch Solenoid | XT Models

710001000

$121.99

Voltage Regulator | XT, XTP, LTD

710001191

$185.49

DC Outlet

710001248

$37.99

Starter Relay

710007777

$48.49

Button

710001473

$13.71

Tail Light Ass'y | Includes 32 to 33

710001645

$83.49

Ground Cable

710004382

$19.99

Connector Ass'y

710004375

$32.99

POSITIVE CABLE - Call your local BRP dealership

710001750

Unavailable

Rectifier Support

710001752

$9.29

Trim Ring

710002092

$8.99

Low Beam | Includes 54 to 55

710006177

$119.99

RH High Front Housing

710002291

$28.99

LH High Front Housing

710002292

$22.49

Ignition Switch

710008400

$78.49

Switch_Ignition | Model-Europe

710007865

$68.99

Fixation Plate

710002404

$9.39

Winch Cables

710004378

$51.99

Connector Bracket

710004118

$5.40

Battery Cable Cap

710006729

$7.20

Winch Switch Support | XT, XTP, XMR, LTD,

710002631

$10.27

Winch Switch | XT, XTP, XMR, LTD,

710002724

$164.49

CABLE_NEGATIVE - Call your local BRP dealership

710003003

Unavailable

Multi-Function Handle | Except Model Europe, Except Model STD

710005070

$69.99

Multi-Function Handle

710004040

$179.99

Battery Support

710006561

$50.99

Main Harness

710005005

$949.99

Bulb 12V 55W

715900141

$41.49

Bulb

520000758

$9.10

Halogen Bulb

415129249

$41.49
