Description

Price

10

Shaft Ass'y Kit | T3

703500992

$412.99

10a

Rubber Boot

715900118

$14.30

10b

Universal Joint Ass'y | T3

703500846

$59.49

10c

Grease Fitting | T3

715900295

$5.24

10d

Yoke | T3

715900500

$24.99

10e

Joint | T3

715900436

$24.99

10f

Spline Yoke

715900106

$41.49

10g

Protector

705501123

$7.55

11

Shaft Ass'y Kit | Includes 11 to 11f

703501135

$412.99

11a

Rubber Boot

715900118

$14.30

11b

Universal Joint

715900326

$68.99

11c

Grease Fitting | T3

715900295

$5.24

11d

Yoke | T3

715900500

$24.99

11e

Wear Ring | 4X4

705400036

$26.49

11f

Protector

705501123

$7.55

15

Protector

705501123

$7.55

40

Fill Level Plug | 4X4

705500504

$10.01

45

Copper Washer | 4X4

705500506

$0.45

50

Wheel Hub

705501900

$132.49

55

Wheel Stud | Tightening Torque: See Bulletin ATV 2020-4

250300643

$5.03

80

Hex Flange Screw M12 X 16, S.Grip

250001040

$3.91

90

Flat Washer M12

250200102

$2.11

130

Hex Flange Screw M12 X 16

250001039

$2.11

180

Conical Spring Washer M12

250200005

$3.27

190

Hex. Flange Castellated Nut M18

232291413

$7.98

195

Cotter Pin

250400071

$2.11

230

RH Rear - Premium CV Axle | Includes 64a to 69a

705501486

$243.99

230a

CV Joint

705501776

$259.49

230b

PLUNGING JOINT - Call your local BRP dealership

705501780

Unavailable

230c

Circlip

705501781

$6.50

230d

Boot Kit

705501864

$42.49

230e

Oetiker Clamp, 82.1 mm

715900241

$10.33

230f

Oetiker Clamp, 27.3 mm

715900242

$10.33

240

LH Rear - Premium CV Axle | Includes 58a to 63a

705501485

$243.99

240a

CV Joint

705501776

$259.49

240b

PLUNGING JOINT - Call your local BRP dealership

705501780

Unavailable

240c

Circlip

705501781

$6.50

240d

Boot Kit

705501864

$42.49

240e

Oetiker Clamp, 82.1 mm

715900241

$10.33

240f

Oetiker Clamp, 27.3 mm

715900242

$10.33

245

Wear Ring

705501124

$7.90

250

Hex. Flange Screw M10 X 135

250001041

$5.59

260

Hex. Flange Elastic Nut M10

233201436

$2.11

270

Ball Bearing

293350150

$52.99

310

Circlip

293370019

$4.68

320

Conical Spring Washer M18

250200171

$7.65

330a

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$78.49

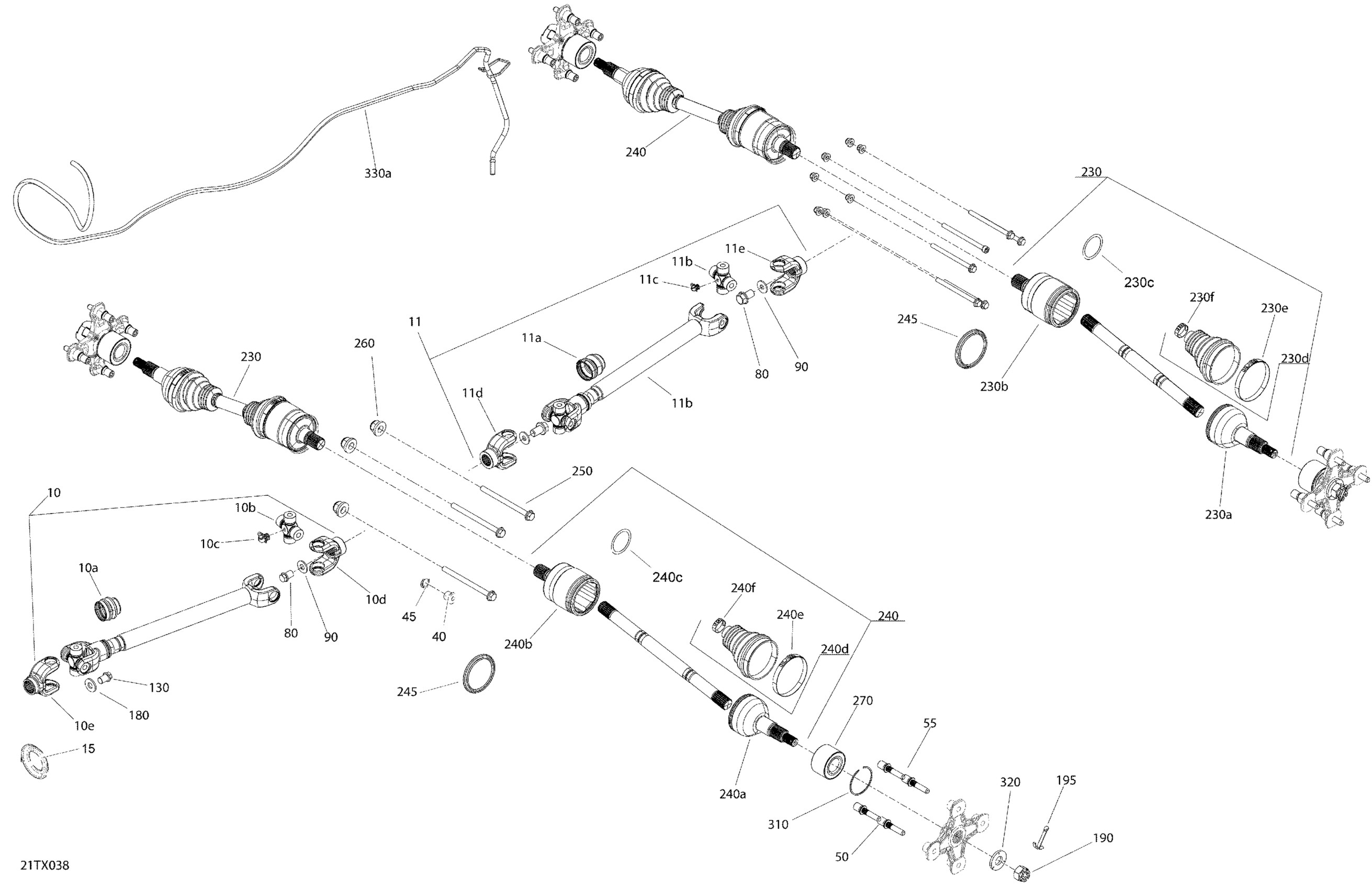

Can-Am 1- Outlander 6X6 - 650 EFI, 2018 08- Drive - Rear Section - XT Diagram

Shaft Ass'y Kit | T3

Rubber Boot

Universal Joint Ass'y | T3

Grease Fitting | T3

Yoke | T3

Joint | T3

Spline Yoke

Protector

Shaft Ass'y Kit | Includes 11 to 11f

Rubber Boot

Universal Joint

Grease Fitting | T3

Yoke | T3

Wear Ring | 4X4

Protector

Protector

Fill Level Plug | 4X4

Copper Washer | 4X4

Wheel Hub

Wheel Stud | Tightening Torque: See Bulletin ATV 2020-4

Hex Flange Screw M12 X 16, S.Grip

Flat Washer M12

Hex Flange Screw M12 X 16

Conical Spring Washer M12

Hex. Flange Castellated Nut M18

Cotter Pin

RH Rear - Premium CV Axle | Includes 64a to 69a

CV Joint

PLUNGING JOINT - Call your local BRP dealership

Circlip

Boot Kit

Oetiker Clamp, 82.1 mm

Oetiker Clamp, 27.3 mm

LH Rear - Premium CV Axle | Includes 58a to 63a

CV Joint

PLUNGING JOINT - Call your local BRP dealership

Circlip

Boot Kit

Oetiker Clamp, 82.1 mm

Oetiker Clamp, 27.3 mm

Wear Ring

Hex. Flange Screw M10 X 135

Hex. Flange Elastic Nut M10

Ball Bearing

Circlip

Conical Spring Washer M18

Polyurethane Hose 4000MM Long | Includes 250 to 250a
