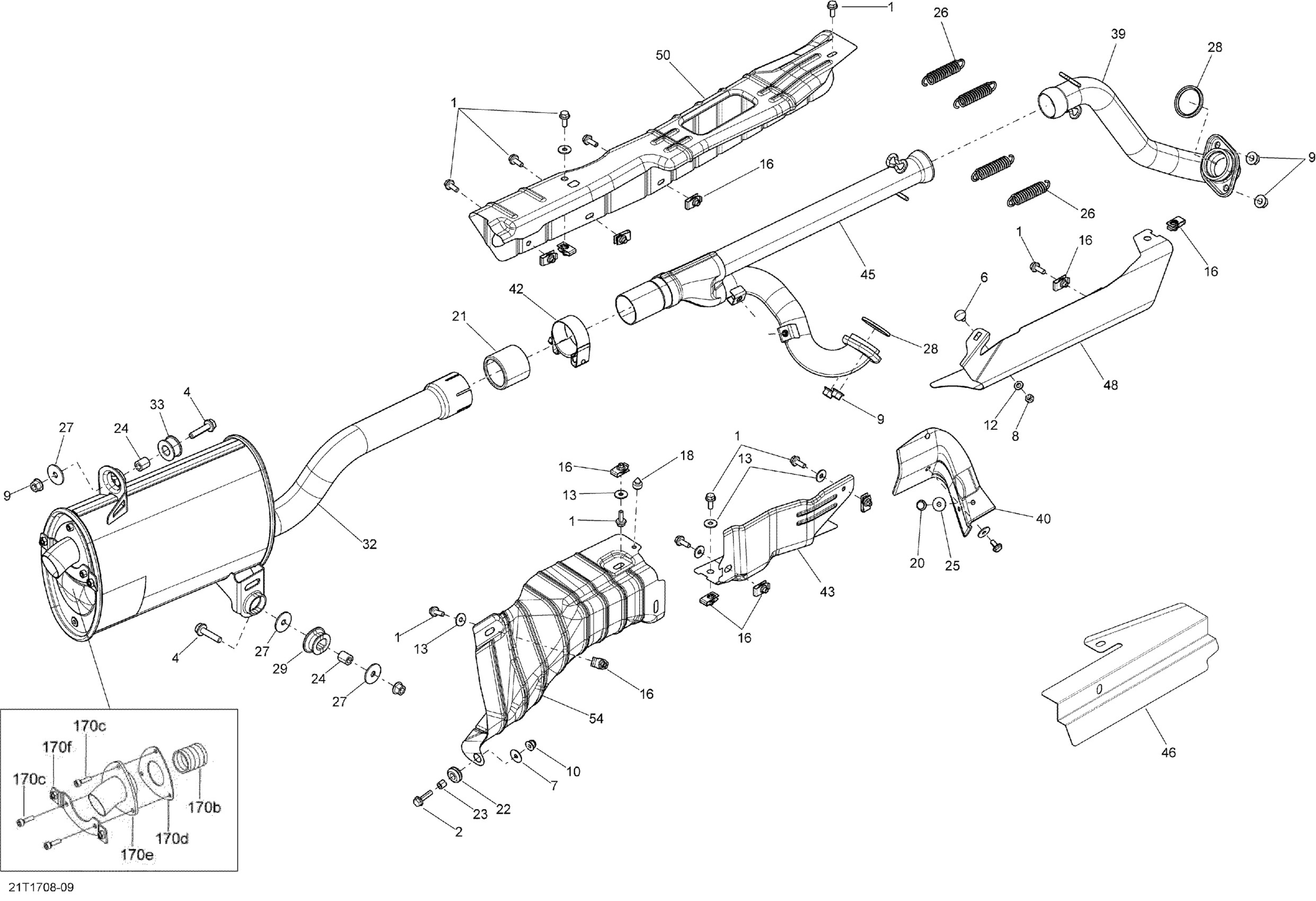

Can-Am 1- Outlander 6X6 - 650 EFI, 2018 01- Exhaust System Diagram

#

Description
Price

1

Hex. Flange Screw M6 X 16

207661644

$0.74

1

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

2

Hex. Flange Screw M6 X 25

207662534

$2.11

4

Hex. Flange Screw M8 X 35

207683534

$2.11

6

Carriage Bolt M6 X 12

207761244

$1.90

7

Flat Washer

224060201

$1.26

8

Elastic Stop Nut M6

232561434

$1.99

9

Hex. Flange Nut M8

233081416

$1.15

10

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

12

Flat Washer 6 mm

234061410

$1.36

13

Flat Washer 6 mm

234062410

$0.77

16

Panel Nut M6 X 1.0

250100198

$2.11

18

Rubber Bumper

293830005

$8.09

20

Hex. Flange Screw M6 X 12

250000574

$2.11

21

Pipe Gasket

707601544

$19.49

22

Grommet

709000582

$4.69

23

Bushing

293900105

$7.65

24

Spacer Bushing

293900116

$3.24

25

Flat Washer

250200082

$0.42

26

Spring

415107100

$6.35

27

Flat Washer M8

250200158

$2.11

27

Washer

503032900

$3.28

28

Gasket

707600317

$11.60

29

Rubber

707600448

$7.90

32

Kit Muffler

703501072

$550.99

33

Vibration Damper

707603323

$11.65

39

Front Head Pipe

707600764

$142.99

40

Pipe Protector

707600932

$15.81

42

Norma Gear Clamp

293650177

$10.49

43

Protector

707601484

$12.71

45

Rear Head Pipe

707601446

$206.49

46

REAR HEAT SHIELD - Call your local BRP dealership

707601429

Unavailable

48

Heat Shield

707600996

$24.49

50

Heat Shield

707603724

$13.99

54

Protector

707601425

$19.49

170b

Spark Arrestor

707601803

$49.99

170c

Socket Head Screw M6 X 20

205062060

$2.32

170d

Gasket

707601799

$5.99

170e

Muffler End Piece

715900143

$35.99

170f

Support

715900147

$3.29

171

Welded Pipe | Optional

707601604

$269.99
