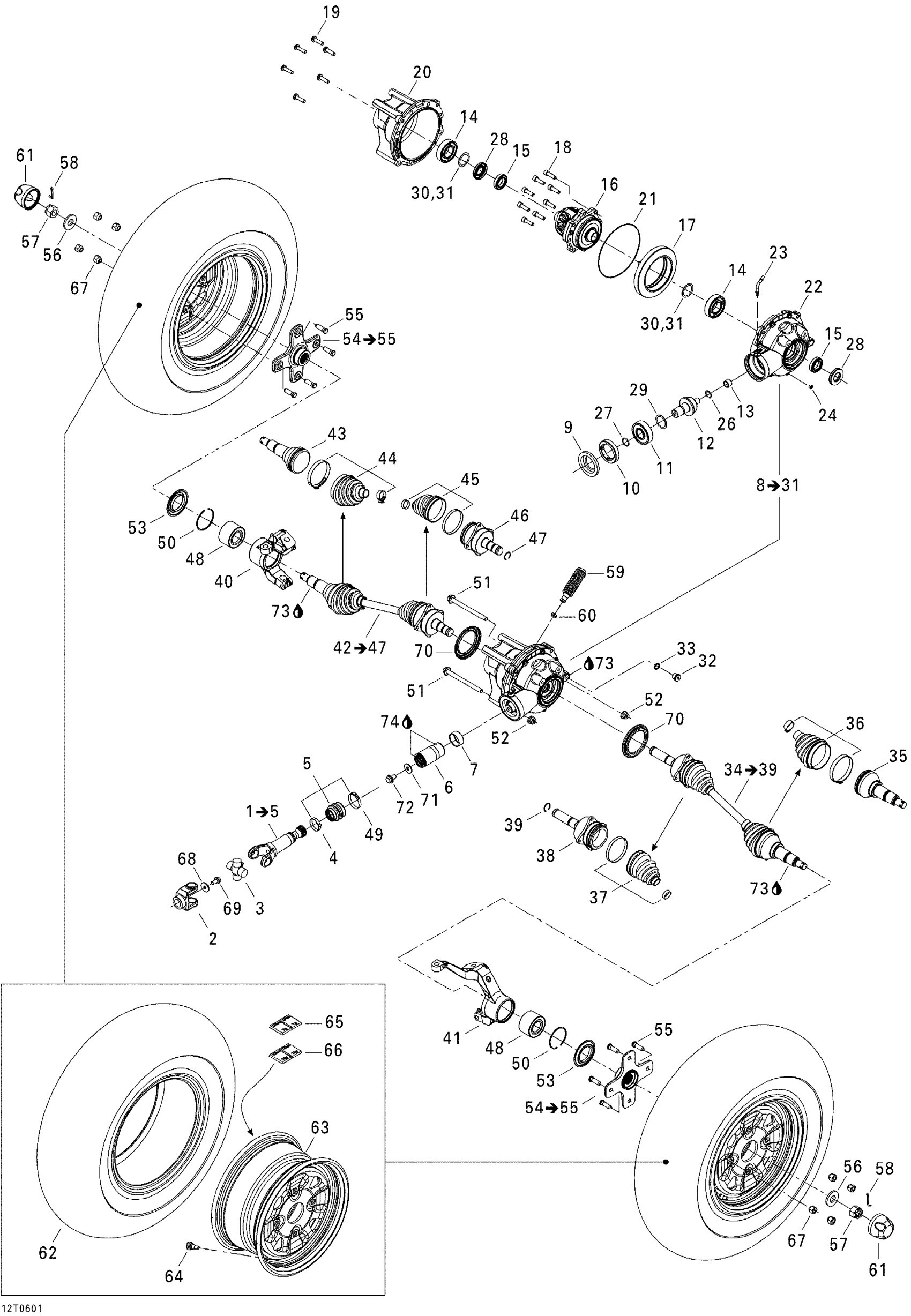

Can-Am Outlander 800 XT 4 X 4, 2006 07- Drive System, Front XT Diagram

#

Description
Price

1

Arbre Assemble *Drive Axle Ass | Includes 1 to 6

705400914

$270.49

2

YOKE, FIXED JOINT - Call your local BRP dealership

705400391

Unavailable

3

Not Available As Spare Part - Friction Washer

Unavailable

4

Collar | 4X4

705400148

Unavailable

5

Rubber Boot Kit | 4X4 / Includes 3 to 5

703500255

Unavailable

6

Front Bushing Shaft Kit | 4X4

703500678

$114.99

7

Wear Ring | 4X4

705400036

$26.49

8

Front Differential | Includes 8 to 31

703500907

$1,579.99

9

Oil Seal | 4X4

705401481

$19.49

10

Nut | 4X4

705401603

$35.99

11

Ball Bearing | 4X4

705500260

$31.99

12

GEAR, 10 TEETH - Call your local BRP dealership | 4X4

705500268

Unavailable

13

Needle Bearing | 4X4

705500261

$19.99

14

Ball Bearing | 4X4

705401606

$51.99

15

Ball Bearing | 4X4

293350044

$31.99

16

Ens Differentiel*Differential Kit | 4X4

703500871

$749.99

17

GEAR, 36 TEETH - Call your local BRP dealership | 4X4

705400192

Unavailable

18

RING GEAR SCREW - Call your local BRP dealership | 4X4

705400101

Unavailable

19

Screw | 4X4

705401601

$10.49

20

FRONT COVER - Call your local BRP dealership

705400762

Unavailable

21

Seal | 4X4

705500265

$18.76

22

Front Cover

705400646

Unavailable

23

VENT VALVE - Call your local BRP dealership | 4X4

705500893

Unavailable

24

Drain Plug | 4X4

705500894

$11.49

26

RETAINING RING - Call your local BRP dealership | 4X4

705500269

Unavailable

27

O-Ring | 4X4

705500267

$7.65

28

Gasket | 4X4

705401618

$18.49

29

Pinion Gear Shim 1.67 mm

705502061

$18.99

30

Shim | 4X4

705401604

$57.99

31

Shim | 4X4

705401604

$57.99

32

Fill Level Plug | 4X4

705500504

$10.01

33

Copper Washer | 4X4

705500506

$0.45

34

RH Half Shaft | Includes 34 to 39

705401579

$243.99

35

CV Joint

705500560

Unavailable

36

Wheel Boot Kit

705400511

$42.49

37

Differential Boot Kit

705400512

$42.49

38

RH PLUNGING JOINT - Call your local BRP dealership

705400294

Unavailable

39

CIRCLIP - Call your local BRP dealership | 4X4

705400042

Unavailable

40

LH KNUCKLE - Call your local BRP dealership

709400284

Unavailable

41

RH Knuckle

709400288

Unavailable

42

LH Half Shaft | Includes 42 to 47

705401578

$243.99

43

CV Joint

705500560

Unavailable

44

Wheel Boot Kit

705400511

$42.49

45

Differential Boot Kit

705400512

$42.49

46

LH Plunging Joint

705400295

Unavailable

47

CIRCLIP - Call your local BRP dealership | 4X4

705400042

Unavailable

48

Ball Bearing

293350150

$52.99

49

Oetiker Gear Clamp 44.0MM | 4X4

293650138

$8.89

50

Circlip

293370019

$4.68

51

Hex. Flange Screw M10 X 125

230602546

$7.41

52

Hex. Flange Elastic Nut M10

233201436

$2.11

53

Wear Sleeve | 4X4

705501121

$7.90

54

LH WHEEL HUB ASSEMBLY - Call your local BRP dealership | 4X4 / Includes 65 to 66

705501713

$137.47

55

Wheel Stud M10 X 1.25 | 2X4

250300055

$3.49

56

Conical Spring Washer M18

250200171

$7.65

57

Hex. Flange Castellated Nut M18

232291413

$7.98

58

Cotter Pin

250400036

$2.11

59

Rubber Bellow | 4X4

705400552

$6.14

60

Oetiker Clamp

293650042

$3.09

61

WHEEL CAP - Call your local BRP dealership

705400012

Unavailable

62

Tire | XT

705401333

$144.99

63

FRONT RIM - Call your local BRP dealership

705400383

Unavailable

63

FRONT RIM - Call your local BRP dealership

705400435

Unavailable

64

Rim Valve With Cap

705400193

$8.69

65

Self Adhesive Weight, 5G 20mm

705502106

$4.69

66

ADHESIVE WEIGHT, 1/2 OZ - Call your local BRP dealership

705500824

Unavailable

67

Steel Wheel Nut

250100042

$3.98

68

Washer

211200041

$3.17

69

Hex. Flange Screw M8 X 16, Scotch Grip

207581646

$2.11

70

Wear Sleeve

705400780

$7.90

71

Flat Washer M10 | 4X4

250200014

$1.49

72

Flange Screw M10 X 16, Scotch Grip | 4X4

250000060

$3.70

73

JET PUMP OIL SYNTHETIC 6 FL OZ / 178 ML | 4X4

779221

$16.99

74

Synthetic Grease, 400 G

293550010

Unavailable
