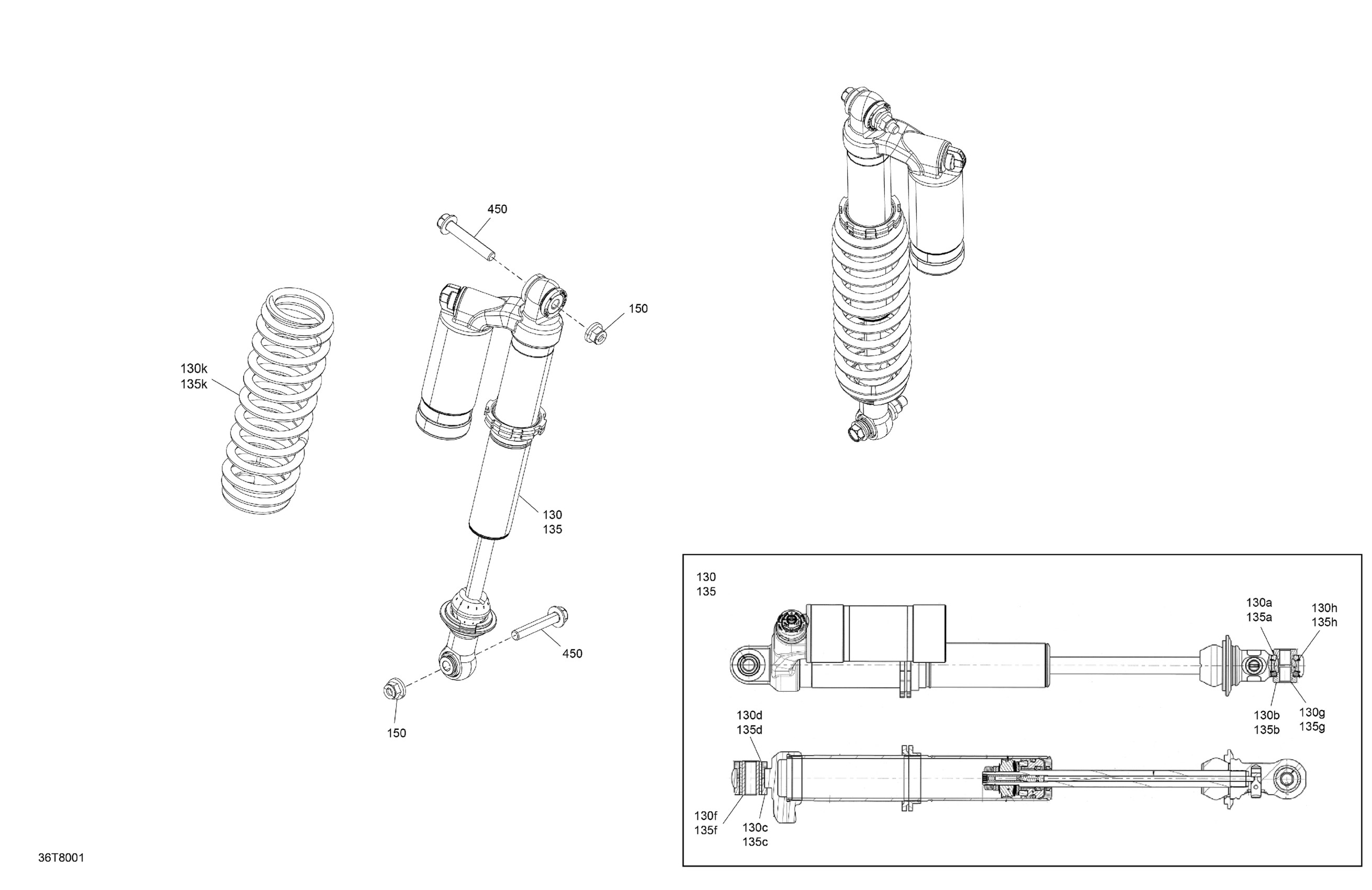

Can-Am North America - OUTLANDER - 4X4 - XXC - 1000R - 1XJA - Sunburst Yellow, 2018 05- Suspension - Rear Shocks Diagram

Description

Price

130

Rear Shock | Model-XTP, Includes 91a to 91b

706001572

$709.99

130a

O-Ring Bushing

715900209

$14.75

130b

Interior Bushing | XTP

715900210

$15.82

130c

Bushing | XTP

706201648

$15.49

130d

Bushing Sleeve | XTP

706201585

$33.99

130f

Bushing Sleeve | XTP

706201586

$33.99

130g

Spherical Bearing

715900251

$82.99

130h

Retaining Ring

715900252

$12.49

130k

Spring Yellow Sunburst

706002808

$100.49

135

Rear Shock | Model-XTP, Includes 91a to 91b

706001572

$709.99

135a

O-Ring Bushing

715900209

$14.75

135b

Interior Bushing | XTP

715900210

$15.82

135c

Bushing | XTP

706201648

$15.49

135d

Bushing Sleeve | XTP

706201585

$33.99

135f

Bushing Sleeve | XTP

706201586

$33.99

135g

Spherical Bearing

715900251

$82.99

135h

Retaining Ring

715900252

$12.49

135k

Spring Yellow Sunburst

706002808

$100.49

150

Hex. Flange Elastic Nut M10

233201436

$2.11

450

Hex. Flange Screw M10 X 6

207606046

$4.12
