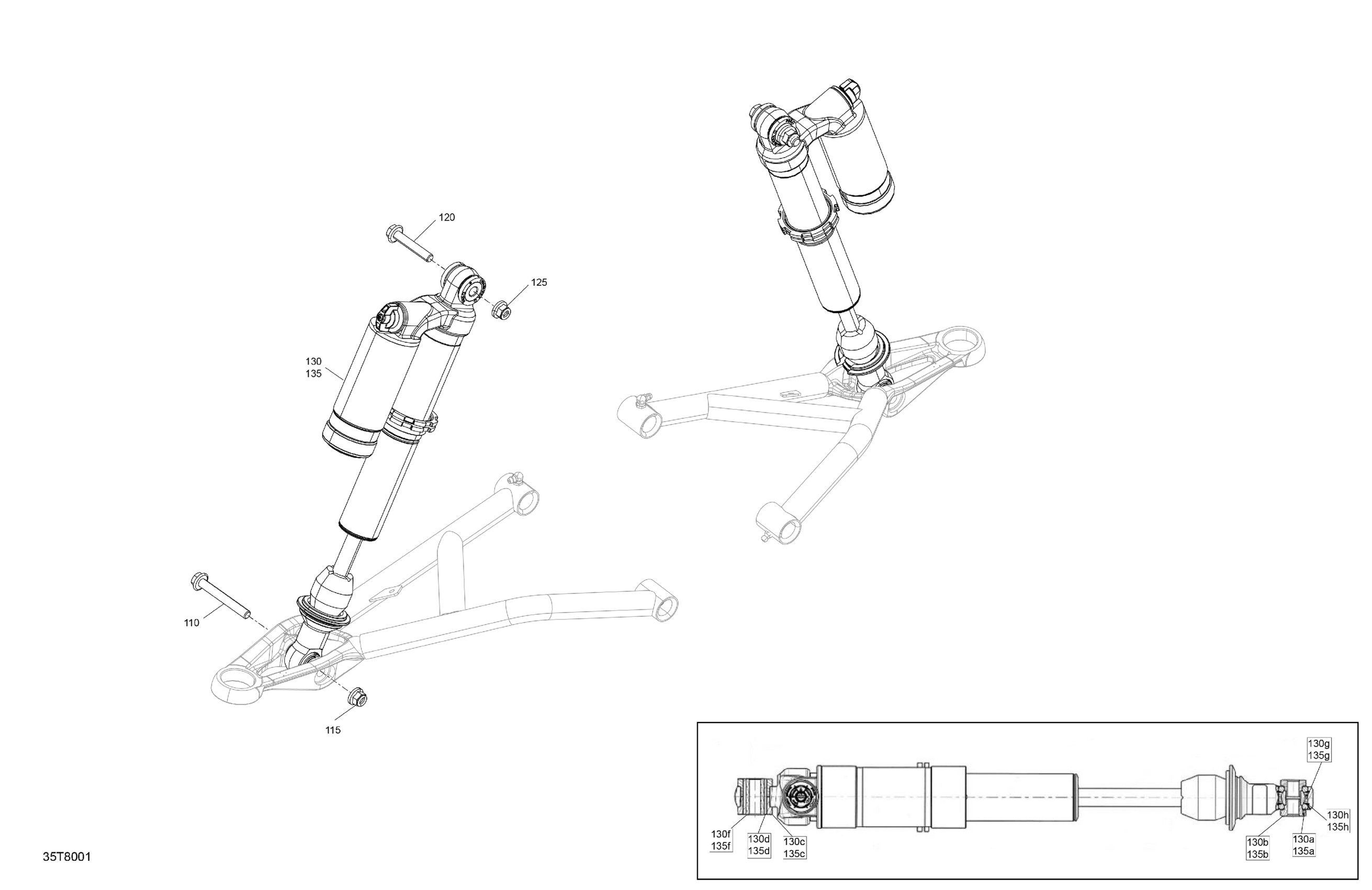

Can-Am North America - OUTLANDER - 4X4 - XXC - 1000R - 1XJA - Sunburst Yellow, 2018 05- Suspension - Front Shocks Diagram

Description

Price

110

Hex. Flange Screw M10 X 75

250001038

$6.77

115

Hex. Flange Elastic Nut M10

233201436

$2.11

120

Hex. Flange Screw M10 X 55

207605546

$2.11

125

Hex. Flange Elastic Nut M10

233201436

$2.11

130

Shock Absorber | Model XXC, Includes 145a to 145g

706201812

$719.99

130a

O-Ring Bushing

715900209

$14.75

130b

Interior Bushing | XTP

715900210

$15.82

130c

Bushing | XTP

706201648

$15.49

130d

Bushing Sleeve | XTP

706201585

$33.99

130f

Bushing Sleeve | XTP

706201586

$33.99

130g

Spherical Bearing

715900251

$82.99

130h

Retaining Ring

715900252

$12.49

135

Shock Absorber | Model XXC, Includes 145a to 145g

706201812

$719.99

135a

O-Ring Bushing

715900209

$14.75

135b

Interior Bushing | XTP

715900210

$15.82

135c

Bushing | XTP

706201648

$15.49

135d

Bushing Sleeve | XTP

706201585

$33.99

135f

Bushing Sleeve | XTP

706201586

$33.99

135g

Spherical Bearing

715900251

$82.99

135h

Retaining Ring

715900252

$12.49
