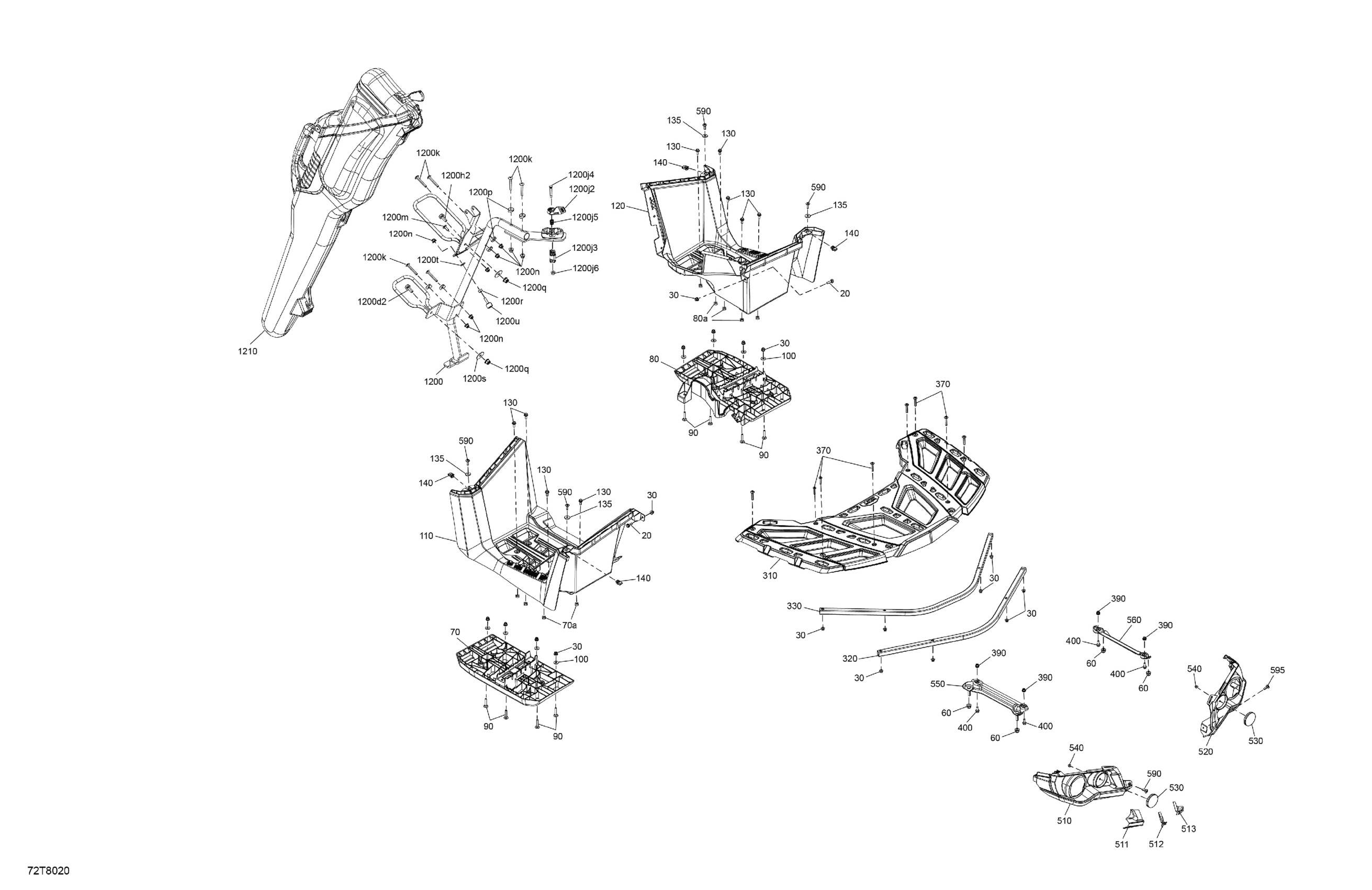

Can-Am North America - OUTLANDER - 4X4 - Mossy Oak Hunting Edition - 1000R - 4MJB - Break Up Country, 2018 07- Body - Rear Section Diagram

Description

Price

Hex. Flange Screw M6 X 20

207662054

$1.01

Flange Elastic Nut M6

233261434

$4.44

Hex. Flange Elastic Nut M8

233281434

$2.11

LH Structural Footboard

705011540

$119.99

70a

Square Nut M6

232862412

$1.49

RH Structural Footboard

705011542

$109.99

80a

Square Nut M6

232862412

$1.49

Carriage Bolt M6 X 35

207763554

$2.11

100

Flat Washer 6 mm

234062410

$0.77

110

LH Step

705007040

$97.99

120

RH Step

705007039

$129.99

130

Hex. Flange Screw M6 X 16

207661654

$2.11

135

Flat Washer

224061201

$1.37

140

Panel Nut M6 X 1.0

250100198

$2.11

310

Luggage Rack Kit

715001852

$224.99

320

Sectional Bent Tube

705016640

$38.99

330

Sectional Bent Tube

705016641

$42.99

370

Black, Torx Screw M6 X 35

250000646

$0.98

390

Insert Half Hex Body M6 x 1.0

250100199

$3.19

400

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

510

LH Rear Facia | North America, International

705006643

$15.99

511

Heat Shield

707002103

$10.49

512

Heat Shield

707002107

$2.59

513

Heat Shield

707002293

$10.49

520

RH Rear Facia | North America, International

705006650

$15.99

530

Red Reflector

705011221

$14.49

540

Hex. Flange Elastic Nut M5

233251414

$1.04

550

LH Support

705007277

$30.99

560

RH Support

705007278

$30.99

590

Torx Screw M6 X 20

250000722

$1.68

595

Hex. Flange Screw M6 X 16

207661654

$2.11

1200

Boot Bracket | Package Hunter

715002112

$196.99

1200d2

Hex. Flange Screw M8 X 20

207682044

$1.15

1200h2

Hex. Flange Screw M8 X 20

207682044

$1.15

1200j2

LH Lever | Package Hunter

708200373

$4.02

1200j3

LH Latch | Package Hunter

708200266

$3.01

1200j4

STEM - Call your local BRP dealership | Package Hunter

708200152

Unavailable

1200j5

Spring | Package Hunter

708200263

Unavailable

1200j6

Elastic Flange Nut M5

233251494

$2.11

1200k

Torx Screw M6 X 45

250000748

$1.90

1200m

Torx Screw M6 X 16

250000755

$0.87

1200n

Hex. Flange Elastic Nut M6

233261494

$1.58

1200p

Offset Washer

705202223

$4.14

1200q

Elastic Flange Nut M8

233281464

$1.01

1200r

Hex. Nut M6

250000135

$0.51

1200s

Flat Washer 8 mm

250200128

$4.44

1200t

Flat Washer

250200039

$0.74

1200u

Rubber Bumper

291003688

$14.49

1210

Gun Boot kit | Package Hunter

715001419

$114.99
