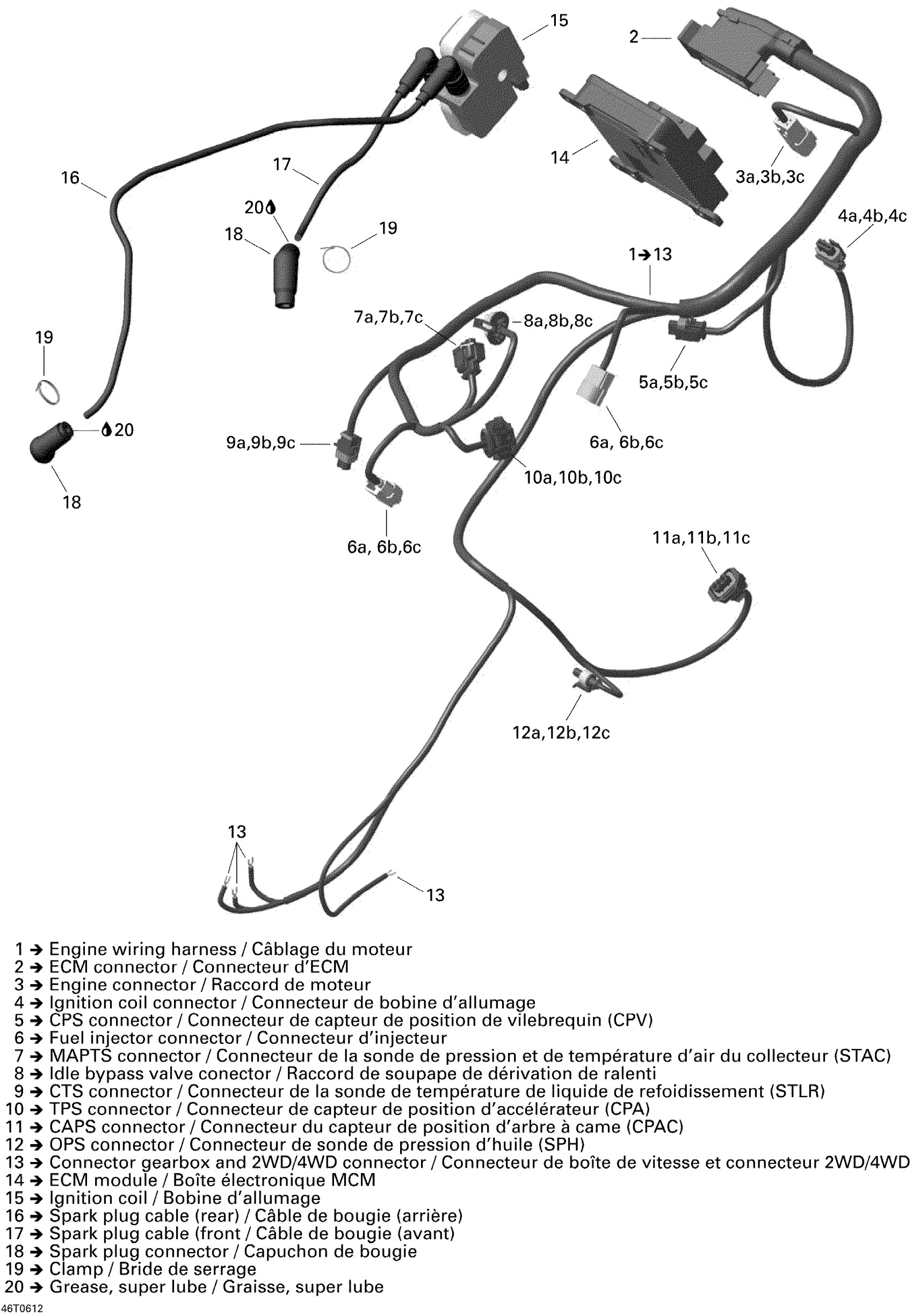

Can-Am Outlander 650 XT 4 X 4, 2006 10- Engine Harness Diagram

#

Description
Price

1

Engine Wiring Harness | Includes 1 to 13

420664229

$839.99

2

ECM Connector

420664450

$27.49

3a

Male Terminal

278000631

$4.39

3b

Female Housing, 4 Circuits

278000635

$16.49

3c

Female Wedge, 4 Circuits

278000636

$4.39

4a

WIRE SEAL - Call your local BRP dealership

710000403

Unavailable

4b

FEMALE TERMINAL - Call your local BRP dealership

278001210

Unavailable

4c

Male Housing, 3 Circuits

278000997

$19.49

5a

WIRE SEAL - Call your local BRP dealership

710000403

Unavailable

5b

FEMALE TERMINAL - Call your local BRP dealership

278001210

Unavailable

5c

Male Housing, 2 Circuits

278001005

$19.49

6a

Not Available As Spare Part - Friction Washer

Unavailable

6b

Not Available As Spare Part - Friction Washer

Unavailable

6c

Not Available As Spare Part - Friction Washer

Unavailable

7a

WIRE SEAL - Call your local BRP dealership

710000403

Unavailable

7b

Not Available As Spare Part - Friction Washer

Unavailable

7c

Not Available As Spare Part - Friction Washer

Unavailable

8a

Not Available As Spare Part - Friction Washer

Unavailable

8b

Not Available As Spare Part - Friction Washer

Unavailable

8c

Not Available As Spare Part - Friction Washer

Unavailable

9a

WIRE SEAL - Call your local BRP dealership

710000403

Unavailable

9b

Not Available As Spare Part - Friction Washer

Unavailable

9c

Male Housing, 2 Circuits

278001005

$19.49

10a

WIRE SEAL - Call your local BRP dealership

710000403

Unavailable

10b

Not Available As Spare Part - Friction Washer

Unavailable

10c

Housing Connector, 3 Circuits

278001829

$21.99

11a

WIRE SEAL - Call your local BRP dealership

710000403

Unavailable

11b

Not Available As Spare Part - Friction Washer

Unavailable

11c

Housing Connector, 3 Circuits

278001830

$35.99

12a

Wire Seal

278001013

$3.28

12b

Female Terminal

278001014

$3.28

12c

Male Housing, 1 Circuit

278001012

$16.86

13

Not Available As Spare Part - Friction Washer

Unavailable

14

ECM, ENGINE CONTROL MODULE - Call your local BRP dealership

420266505

Unavailable

15

Ignition Coil

278001546

$158.99

16

Spark Plug Cable, 790 mm, Rear

420665333

$60.99

17

Spark Plug Cable, 790 mm, Rear

420665333

$60.99

18

Spark Plug Connector

420265248

$31.99

19

Tie Rap

420866710

$5.49

20

Grease, Super Lube

293550030

$28.99
