Description

Price

1

Ground Cable Ass'y, Battery/Frame | Includes 1 to 4

710000830

$23.49

2

Was 710000483 Heat Shrink Tubing

219704447

$78.99

3

Open Barrel

710000508

Unavailable

4

Open Barrel | STD Models

710000518

$11.12

5

GROUND CABLE ASS'Y - Call your local BRP dealership | Includes 5 to 8

710000831

Unavailable

6

Was 710000483 Heat Shrink Tubing

219704447

$78.99

7

Open Barrel

710000508

Unavailable

8

Open Barrel

710000530

Unavailable

9

Hex. Screw M6 X 25

207162544

$1.15

10

External Serrated Lock Washer 6 mm

234461608

$1.15

11

Hex. Nut M6

232061414

$0.53

12

Hex. Flange Nut M6

233061414

$1.68

13

POSITIVE CABLE ASS'Y - Call your local BRP dealership | XT, Includes 13 to 21

710001823

Unavailable

14

OPEN BARREL, 6.6 MM - Call your local BRP dealership | XT Models

710000476

Unavailable

15

Was 710000483 Heat Shrink Tubing

219704447

$78.99

16

Shrink Tubing | XT Models

275500578

Unavailable

17

PROTECTOR TUBE, 9 MM - Call your local BRP dealership

710000497

Unavailable

18

Open Barrel

710000508

Unavailable

19

Protector Cap | XT Models

710001828

$23.49

20

Open Barrel | XT Models

710000519

$9.95

21

Protector Cap | STD

710001817

$11.12

22

Not Available As Spare Parts

XXX

Unavailable

23

Not Available As Spare Parts

XXX

Unavailable

24

Not Available As Spare Parts

XXX

Unavailable

25

Not Available As Spare Parts

XXX

Unavailable

26

Not Available As Spare Parts

XXX

Unavailable

27

Not Available As Spare Parts

XXX

Unavailable

28

Not Available As Spare Parts

XXX

Unavailable

29

Protector Cap | STD Models

710001829

$9.95

30

POSITIVE CABLE ASS'Y - Call your local BRP dealership | Includes 30 to 36

710001818

$37.99

31

Was 710000483 Heat Shrink Tubing

219704447

$78.99

32

PROTECTOR TUBE, 9 MM - Call your local BRP dealership

710000497

Unavailable

33

Open Barrel

710000508

Unavailable

34

Protector Cap

710000526

$10.99

35

Open Barrel

710000530

Unavailable

36

Protector Cap | STD

710001817

$11.12

37

Elastic Stop Nut M6

232561414

$0.55

38

NEGATIVE CABLE ASS'Y - Call your local BRP dealership | XT Models, Includes 37 To 41

710000455

Unavailable

39

OPEN BARREL, 6.6 MM - Call your local BRP dealership | XT Models

710000476

Unavailable

40

Was 710000483 Heat Shrink Tubing

219704447

$78.99

41

PROTECTOR TUBE, 9 MM - Call your local BRP dealership

710000497

Unavailable

42

Open Barrel

710000530

Unavailable

43

Hex. Flange Screw M6 X 20

207662044

$2.00

44

Lock Washer Serrated M6

250200041

$1.15

45

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

46

Flat Washer

224061121

$0.53

47

Winch Positive Cable, Blue | XT Models, Includes 46 To 51

710000451

Unavailable

48

OPEN BARREL, 6.6 MM - Call your local BRP dealership | XT Models

710000476

Unavailable

49

Was 710000483 Heat Shrink Tubing

219704447

$78.99

50

Protector Cap

710000494

Unavailable

51

PROTECTOR TUBE, 9 MM - Call your local BRP dealership

710000497

Unavailable

52

Open Barrel

710000530

Unavailable

53

WINCH POSITIVE CABLE, YELLOW - Call your local BRP dealership | XT Models, Includes 53 To 57

710000454

Unavailable

54

Was 710000483 Heat Shrink Tubing

219704447

$78.99

55

Protector Cap

710000494

Unavailable

56

PROTECTOR TUBE, 9 MM - Call your local BRP dealership

710000497

Unavailable

57

Open Barrel

710000530

Unavailable

58

External Serrated Lock Washer 6 mm

234461608

$1.15

59

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

60

CLIP - Call your local BRP dealership

409014200

Unavailable

61

SOLENOID SUPPORT - Call your local BRP dealership

710001260

Unavailable

62

Starter Relay

515176011

$62.49

63

Lock Washer Helical M6

234161601

$1.15

64

Hex. Nut M6

232061600

$1.15

65

Hex. Flange Nut M6

233061414

$1.68

66

Hex. Flange Screw M6 X 12

207661244

$2.11

67

Winch Solenoid | XT Models

710001000

$121.99

68

Elastic Stop Nut M6

232561414

$0.55

69

Hexagonal Head Screw

210262050

$2.11

70

WINCH RELAY SUPPORT - Call your local BRP dealership | XT

710001813

Unavailable

71

Pop Rivet 3/16"

390406500

$0.88

72

WINCH INTERRUPTER - Call your local BRP dealership | XT Models, Includes 13 To 16

710001001

Unavailable

73

Female Terminal Housing, 3 Circuits | XT Models

278000281

$9.85

74

Male Terminal | XT Models

278000222

$3.19

75

Wire Seal

278001065

$7.69

76

WINCH INTERRUPTER SUPPORT - Call your local BRP dealership | XT Models

710000755

Unavailable

77

Hex. Cap Screw 6-32 X 1/4" | XT Models

250000153

$1.69

78

Loctite 243, 10 ml

293800060

$21.49

79

Helicoidal Lock Washer M10 | XT Models

234101601

$1.15

80

HEX. SCREW M10 X 16 - Call your local BRP dealership

250000029

Unavailable

81

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$154.99

82

Battery Bolt Kit

250000282

$7.29

83

INSULATOR PAD - Call your local BRP dealership

710000279

Unavailable

84

Retainer Strap

293850097

$11.64

85

DIODE HARNESS - Call your local BRP dealership | XT, Includes 85 to 90

710000999

Unavailable

86

Male Terminal

278000230

$4.39

87

Female Terminal | DS 650 X

278001009

$3.19

88

Open Barrel

278000992

$2.21

89

Insulated Sheath

278001008

$3.28

90

Insulated Sheath

278001007

$3.58

91

Tie-Rap 180 mm

414115200

$0.11

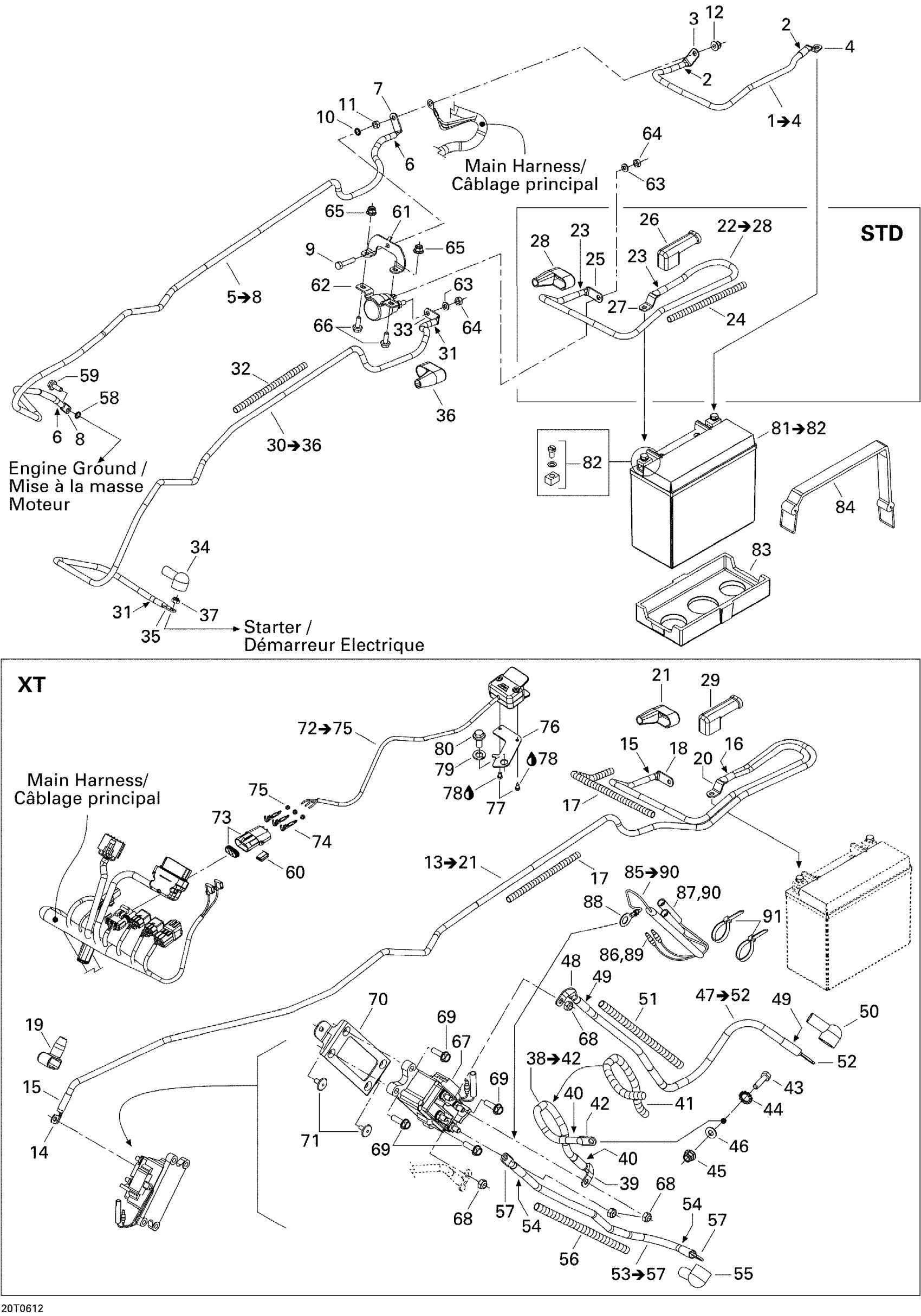

Can-Am Outlander 650 XT 4 X 4, 2006 10- Electrical System XT Diagram
