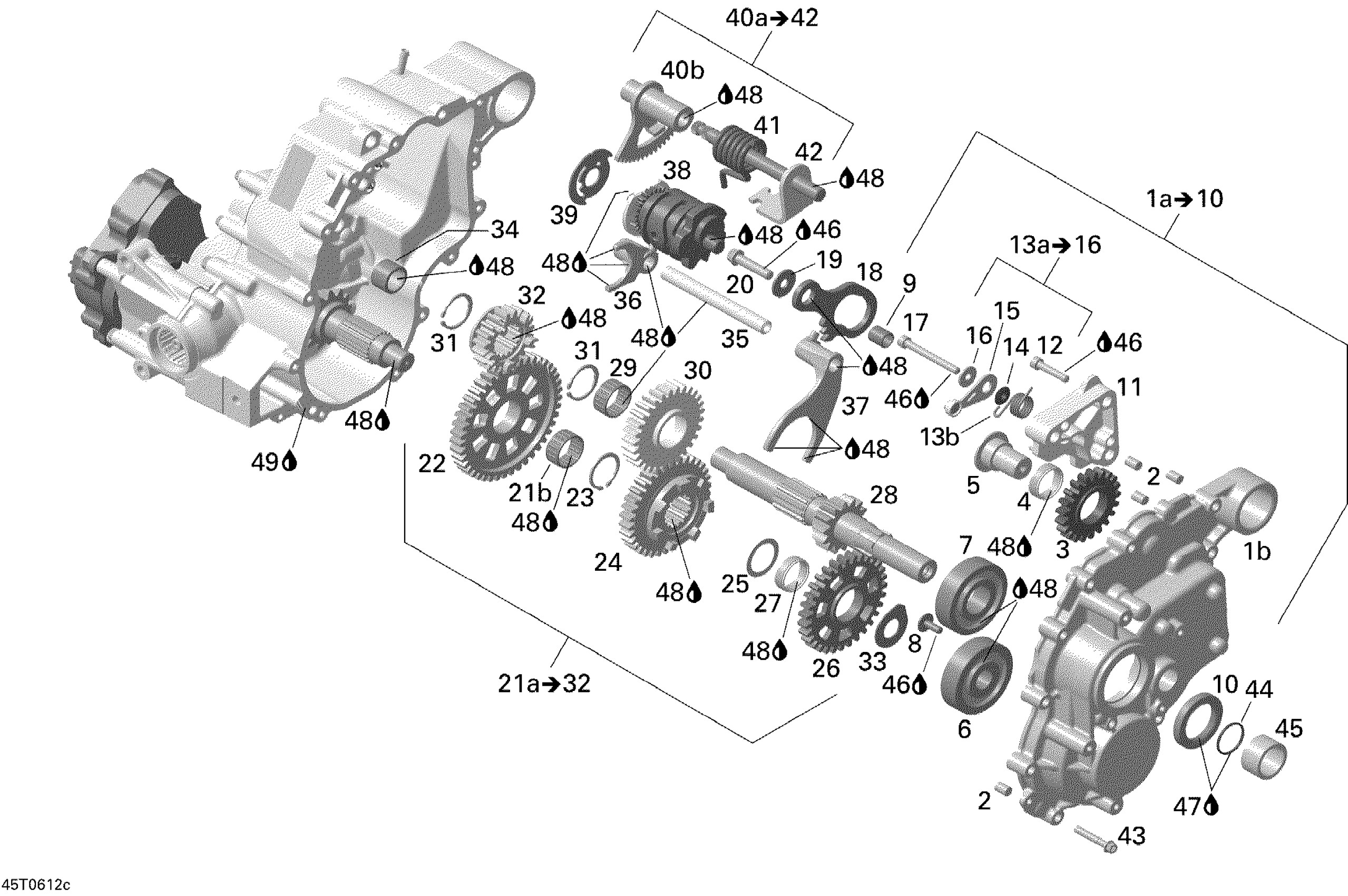

Can-Am Outlander 650 XT 4 X 4, 2006 01- Gear Box 3 Diagram

#

Description
Price

1a

LH Gear Housing Ass'y | Includes 1a to 10

420212215

$561.49

1b

Not Available As Spare Part - Friction Washer

Unavailable

2

Center Pin 8 X 12

420632010

$4.01

3

Not Available As Spare Part - Friction Washer

Unavailable

4

Needle Bearing | See Item 21a

420232654

$20.99

5

Not Available As Spare Part - Friction Washer

Unavailable

6

Ball Bearing

420632295

$47.49

7

Ball Bearing

420932822

$30.49

8

Torx Screw M6 X 16

420241529

$2.11

9

Not Available As Spare Part - Friction Washer

Unavailable

10

Oil Seal

420950089

$19.49

11

Support

420611451

Unavailable

12

Socket Head Screw M6 X 30

205063044

$1.69

13a

Index Lever Ass'y | Includes 13a to 16

420248530

Unavailable

13b

Not Available As Spare Part - Friction Washer

Unavailable

14

Not Available As Spare Part - Friction Washer

Unavailable

15

Not Available As Spare Part - Friction Washer

Unavailable

16

Not Available As Spare Part - Friction Washer

Unavailable

17

Allen Screw M6 X 55

420240332

$5.35

18

Kit Parking Lock Lever Assembly

703501128

$164.99

19

Plain Washer

420227937

$13.24

20

Torx Flange Screw M8 X 35

420641188

$7.41

21a

Gear Set | Includes 3 to 5 and 21a to 32

420281289

Unavailable

21b

Needle Bearing

420632070

$25.99

22

Not Available As Spare Part - Friction Washer

Unavailable

23

Retaining Ring

420845772

$6.38

24

Not Available As Spare Part - Friction Washer

Unavailable

25

Thrust Washer

420427011

$5.79

26

Not Available As Spare Part - Friction Washer

Unavailable

27

Needle Bearing | See Item 21a

420232654

$20.99

28

Not Available As Spare Part - Friction Washer

Unavailable

29

Needle Bearing

420632070

$25.99

30

Not Available As Spare Part - Friction Washer

Unavailable

31

Retaining Ring

420845772

$6.38

32

Not Available As Spare Part - Friction Washer

Unavailable

33

Thrust Washer Set, CVT Side

420281302

$86.99

34

Needle Bushing

420832240

$20.99

35

Fork Spindle

420258383

$21.99

36

Shifting Fork

420657311

$89.99

37

Shifting Fork

420657321

$88.99

38

Kit Parking Lock Lever Assembly

703501128

$164.99

39

Isolating Washer

420626092

$6.67

40a

SHIFT SHAFT ASS'Y - Call your local BRP dealership | Includes 40a to 42

420620657

Unavailable

40b

Not Available As Spare Part - Friction Washer

Unavailable

41

Not Available As Spare Part - Friction Washer

Unavailable

42

Not Available As Spare Part - Friction Washer

Unavailable

43

Torx Flange Screw M6 X 35

420440274

$1.01

44

O-Ring

420631612

$4.33

45

Distance Ring

420247118

Unavailable

46

Loctite 243, 10 ml

293800060

$21.49

47

Grease, Super Lube

293550030

$28.99

48

Not Available As Spare Part - Friction Washer

Unavailable

49

Loctite 5910, 300 ml

293800081

$57.99
