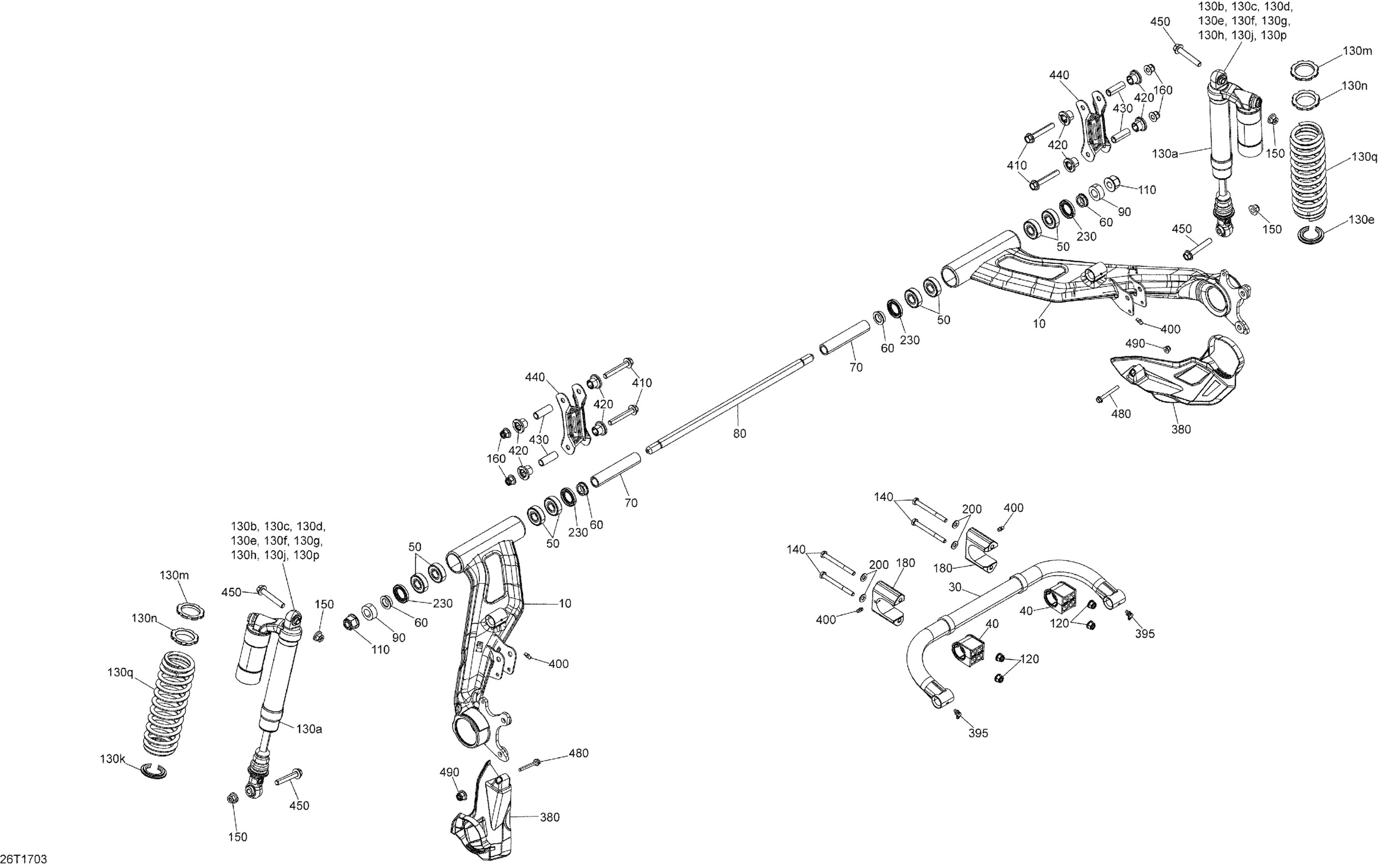

Can-Am Renegade, 2017 08- Rear Suspension - All Models Diagram

#

Description
Price

10

Black LH Swing Arm | Except Package XMR Red/White/Black

706002414

$296.99

10

Black RH Swing Arm | Except Package XMR Red/White/Black

706002415

$296.99

10

Red LH Swing Arm | Package XMR Red/White/Black

706002634

$296.99

10

RH SWING ARM - Call your local BRP dealership | Package XMR Red/White/Black

706002635

$279.99

30

Swaybar

706000988

$126.99

40

Stabilizer Bar Bushing

706004640

$8.89

50

Ball Bearing

293350145

$13.75

60

Spacer

706001282

$12.99

70

Spacer

706002259

$28.99

80

Axial Pivot M16

706001664

$72.99

90

Flat Washer M17

250200112

$7.99

110

Hex. Flange Elastic Nut M16

233211466

$1.99

120

Hex. Flange Elastic Nut M8

233281434

$2.11

130a

Rear Shock

706000958

$185.49

130a

Rear Shock | Includes 40 to 42

706001904

$349.99

130a

Rear Shock | Package-XXC, Includes 33a to 33d, 41, 42, 44

706001908

$719.99

130a

REAR SHOCK - Call your local BRP dealership | Package XMR, Engine 1000R

706002603

Unavailable

130b

Spherical Bearing

715900251

$82.99

130b

Ball Journal

715900336

$84.99

130c

O-Ring Bushing

715900209

$14.75

130d

Retaining Ring

715900252

$12.49

130e

Bushing Sleeve | XTP

706201585

$33.99

130f

Bushing Sleeve | XTP

706201586

$33.99

130g

Interior Bushing | XTP

715900210

$15.82

130h

Bushing | XTP

706201648

$15.49

130j

Protector

715900331

$13.99

130k

Spring Guide

503187500

$10.49

130m

Spring Stopper

706200881

$12.99

130n

Adjustment Cam

505073625

$12.99

130p

Cap

706200785

$4.69

130q

SPRING_COMPRESSION B-352 PAINTED - Call your local BRP dealership | Package XMR Blue

706002583

Unavailable

130q

SPRING_COMPRESSION B-101A PAINTED - Call your local BRP dealership | Renegade Model Engine 570 Package STD

706002470

Unavailable

130q

SPRING_COMPRESSION B-101A PAINTED - Call your local BRP dealership | Renegade Model Engine 850, 1000 Package STD

706002582

Unavailable

130q

SPRING_COMPRESSION B-101A PAINTED - Call your local BRP dealership | Package XMR Red

706002584

Unavailable

130q

SPRING_COMPRESSION B-160 PAINTED - Call your local BRP dealership | Package XXC, Model Black

706002493

Unavailable

130q

JOUSI_PURISTUSVAIMENNUS B-101A MAALATTU - Call your local BRP dealership | Package XXC Red Model

706002581

Unavailable

140

Hex. Screw M8 X 85

250001035

$1.89

150

Hex. Flange Elastic Nut M10

233201436

$2.11

160

Hex. Flange Elastic Nut M10

233201414

$1.58

180

Bushing Holder

706001099

$33.99

200

Flat Washer M8

234081430

$2.11

230

Seal

293200144

$5.09

380

LH Protector

706002482

$15.82

380

RH Protector

706002483

$14.82

395

Grease Fitting 90°

293550056

$1.15

400

Grease Fitting

250000315

$5.82

410

Hex. Flange Screw M10 X 65

207606536

$4.44

420

Bushing

706200181

$3.14

430

Sleeve

706201587

$3.79

440

Sway Bar Linkage

706001020

$13.99

450

Hex. Flange Screw M10 X 6

207606046

$4.12

480

Torx Screw M6 X 20

250000712

$2.11

490

Hex. Flange Elastic Nut M6

233261494

$1.58
