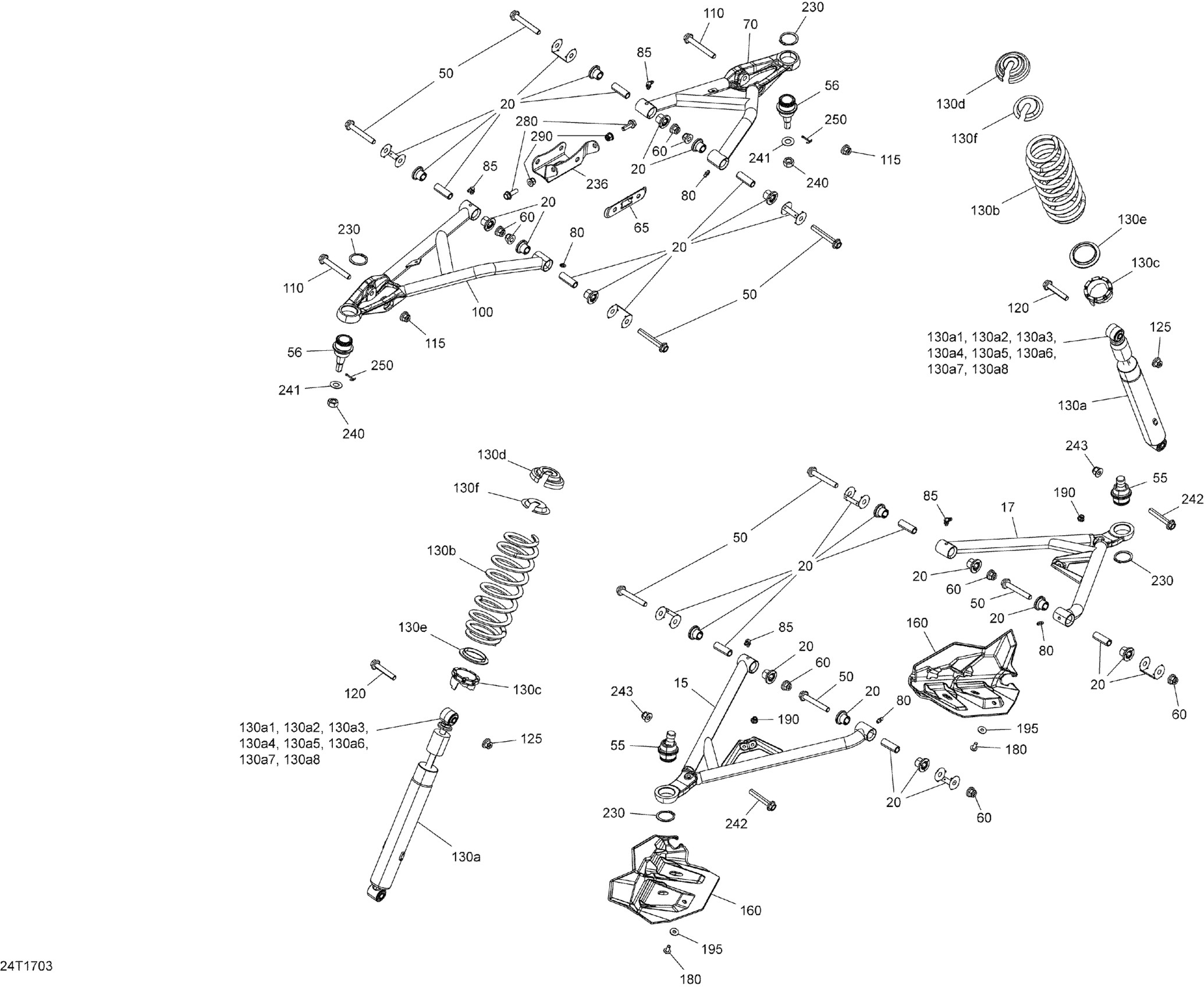

Can-Am Renegade, 2017 07- Front Suspension - All Models Diagram

#

Description
Price

15

LH Lower Suspension Arm

706204639

$158.99

17

Black, RH Lower Arm

706202870

$158.99

20

Suspension Arm Bushing Kit | Includes 4

703500875

$16.33

50

Hex. Flange Screw M10 X 70

207607046

$2.96

55

Ball Joint

706202045

$35.99

56

Ball Joint

706202044

$35.99

60

Hex. Flange Elastic Nut M10

233201436

$2.11

65

Front Suspension Cross Plate

706200998

$5.09

70

Black RH Upper Arm

706201797

$158.99

80

Grease Fitting

408200700

$3.49

85

Grease Fitting 90°

293550056

$1.15

100

Black LH Upper Arm

706201796

$158.99

110

Hex. Flange Screw M10 X 75

250001038

$6.77

115

Hex. Flange Elastic Nut M10

233201436

$2.11

120

Hex. Flange Screw M10 X 55

207605546

$2.11

125

Hex. Flange Elastic Nut M10

233201436

$2.11

130a

Front Shock

706201170

$185.49

130a

Shock Absorber | Package-STD Yellow

706202113

$339.99

130a1>130a8

Shock Absorber | Package XMR, Engine 1000R

706202735

$529.99

130a1>130a7

Shock Absorber | Package-XXC

706202117

$709.99

130a1

O-Ring Bushing

715900209

$14.75

130a2

Interior Bushing | XTP

715900210

$15.82

130a3

Bushing | Renegade STD

706201584

$14.82

130a3

Bushing | XTP

706201648

$15.49

130a4

Bushing Sleeve | XTP

706201585

$33.99

130a5

Bushing Sleeve | XTP

706201586

$33.99

130a6

Spherical Bearing

715900251

$82.99

130a6

Ball Journal

715900336

$84.99

130a7

Retaining Ring

715900252

$12.49

130a8

Protector

715900331

$13.99

130b

SPRING_COMPRESSION B-101A PAINTED - Call your local BRP dealership | Package STD, Moteur 570

706202555

Unavailable

130b

SPRING_COMPRESSION B-101A PAINTED - Call your local BRP dealership | Model Red

706202628

Unavailable

130b

SPRING_COMPRESSION B-160 PAINTED - Call your local BRP dealership | Package XTP

706202631

Unavailable

130b

SPRING_COMPRESSION B-352 PAINTED - Call your local BRP dealership | Package XMR, Model Gulfstream Blue

706202663

Unavailable

130b

SPRING_COMPRESSION B-101A PAINTED - Call your local BRP dealership | Package STD, Engine 850, 1000

706202674

Unavailable

130c

Adjustment Cam

505073625

$12.99

130d

Spring Stopper

706200881

$12.99

130e

Spring Guide

503187500

$10.49

130f

Cap

706200785

$4.69

160

LH Joint Protector

706202808

$9.90

160

RH Joint Protector

706202809

$9.90

180

Torx Screw M6 X 16

250000755

$0.87

190

Hex. Flange Elastic Nut M6

233261494

$1.58

195

Stainless Steel Flat Washer

234062670

$2.11

230

Circlip

293370035

$2.64

236

Upper Front Holder

705203247

$15.99

240

Nut M12

250100099

$2.09

241

Hardened Washer

706200281

$2.85

242

Hex. Flange Screw M10 X 60

207606044

$3.38

243

Hex. Flange Elastic Nut M10

233201434

$2.09

250

Cotter Pin

211400017

$0.33

280

Hex. Flange Screw M8 X 25

207682534

$2.11

290

Hex. Flange Elastic Nut M8

233281414

$1.47
