Description

Price

1>8

Not Available As Spare Part - Friction Washer

Unavailable

2

Parking Lock Lever

420257659

$80.99

3

Collar Sleeve

420647123

$38.99

4

Ball Bearing

420932816

$42.49

5

Ball Bearing

420932822

$30.49

6

Torx Screw M6 X 16

420241529

$2.11

7

Distance Screw M6

420441433

$3.49

8

Oil Seal

420950089

$19.49

9

O-Ring

420631612

$4.33

10

Distance Ring

420647267

$42.49

11

Torx Flange Screw M6 X 55

420440702

$3.06

12

Torx Flange Screw M6 X 35

420440274

$1.01

13

Not Available As Spare Part - Friction Washer

Unavailable

14

Not Available As Spare Part - Friction Washer

Unavailable

15

Not Available As Spare Part - Friction Washer

Unavailable

16

Not Available As Spare Part - Friction Washer

Unavailable

17

Intermediate Gear Shaft

420620688

$51.99

18

Thrust Washer

420427011

$5.79

19

Needle Bearing

420932930

$27.49

20

Intermediate Gear, 19 Teeth

420434588

$48.99

21

Main Shaft

420637048

$243.49

22

Needle Bearing

420632070

$25.99

23

Gear Pinion, 34 Teeth

420434873

$89.99

24

Retaining Ring

420845772

$6.38

25

Shifting Sleeve

420257954

$85.99

26

Gear Pinion, 46 Teeth

420434865

$85.99

27

Gear Pinion, 36 Teeth

420434857

$93.99

28

Shifting Sleeve

420257945

$99.99

29

Ball Bearing

420932816

$42.49

30

Shift Fork

420657365

$114.99

31

Pivot

420258394

$22.49

32

Shift Fork Ass'y

420258515

$184.99

33>37

Index Lever | Includes 33a to 37

420248533

$64.99

33

Not Available As Spare Part - Friction Washer

Unavailable

34

Not Available As Spare Part - Friction Washer

Unavailable

35

Not Available As Spare Part - Friction Washer

Unavailable

36

Not Available As Spare Part - Friction Washer

Unavailable

37

Not Available As Spare Part - Friction Washer

Unavailable

38

Torx Flange Screw M6 X 20

420441835

$3.17

39

Allen Screw M6 X 20

420241939

$0.73

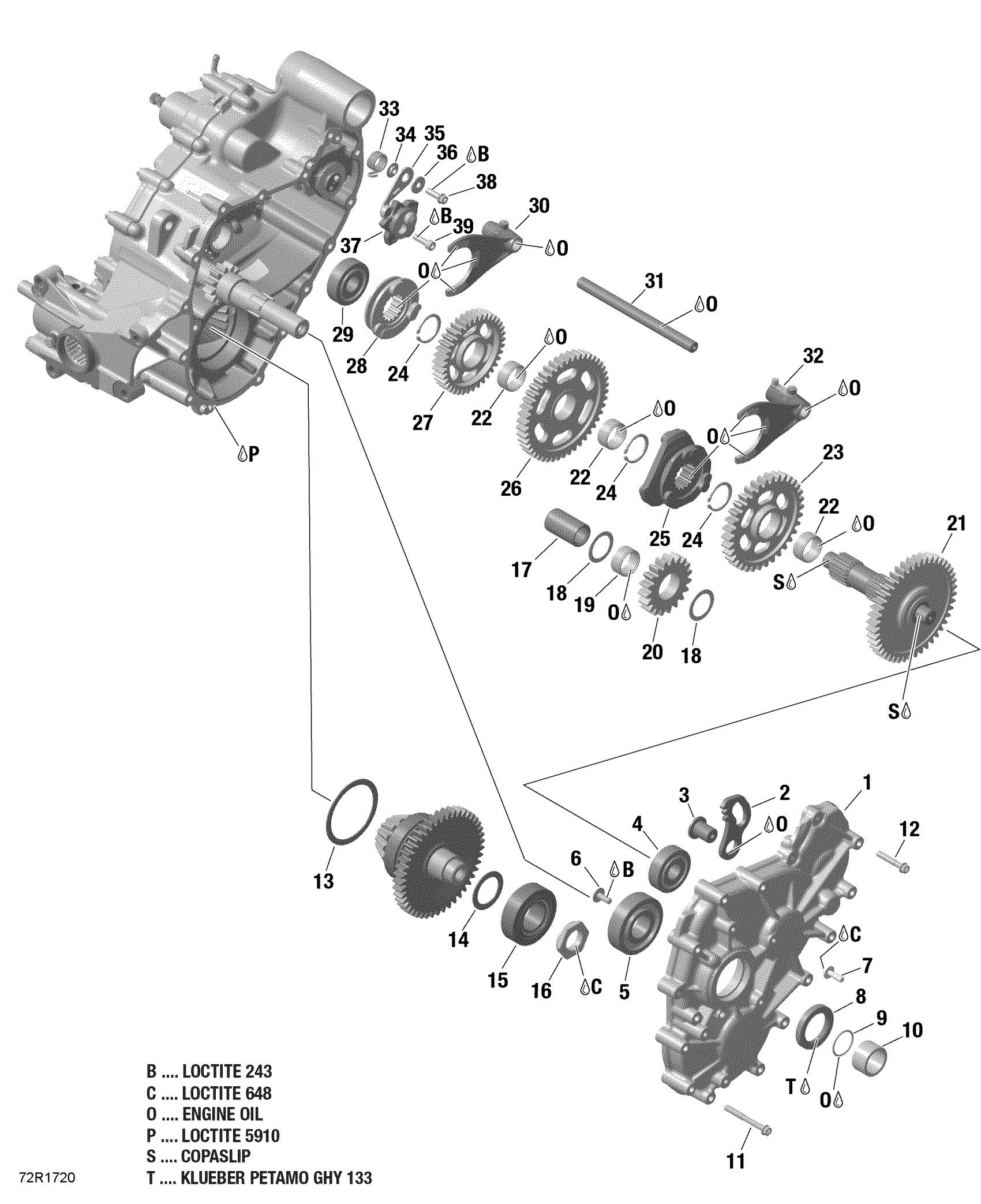

Can-Am Renegade, 2017 01- Gear Box and Components - Renegade XMR 1000R EFI Diagram

Not Available As Spare Part - Friction Washer

Parking Lock Lever

Collar Sleeve

Ball Bearing

Ball Bearing

Torx Screw M6 X 16

Distance Screw M6

Oil Seal

O-Ring

Distance Ring

Torx Flange Screw M6 X 55

Torx Flange Screw M6 X 35

Not Available As Spare Part - Friction Washer

Not Available As Spare Part - Friction Washer

Not Available As Spare Part - Friction Washer

Not Available As Spare Part - Friction Washer

Intermediate Gear Shaft

Thrust Washer

Needle Bearing

Intermediate Gear, 19 Teeth

Main Shaft

Needle Bearing

Gear Pinion, 34 Teeth

Retaining Ring

Shifting Sleeve

Gear Pinion, 46 Teeth

Gear Pinion, 36 Teeth

Shifting Sleeve

Ball Bearing

Shift Fork

Pivot

Shift Fork Ass'y

Index Lever | Includes 33a to 37

Not Available As Spare Part - Friction Washer

Not Available As Spare Part - Friction Washer

Not Available As Spare Part - Friction Washer

Not Available As Spare Part - Friction Washer

Not Available As Spare Part - Friction Washer

Torx Flange Screw M6 X 20

Allen Screw M6 X 20
