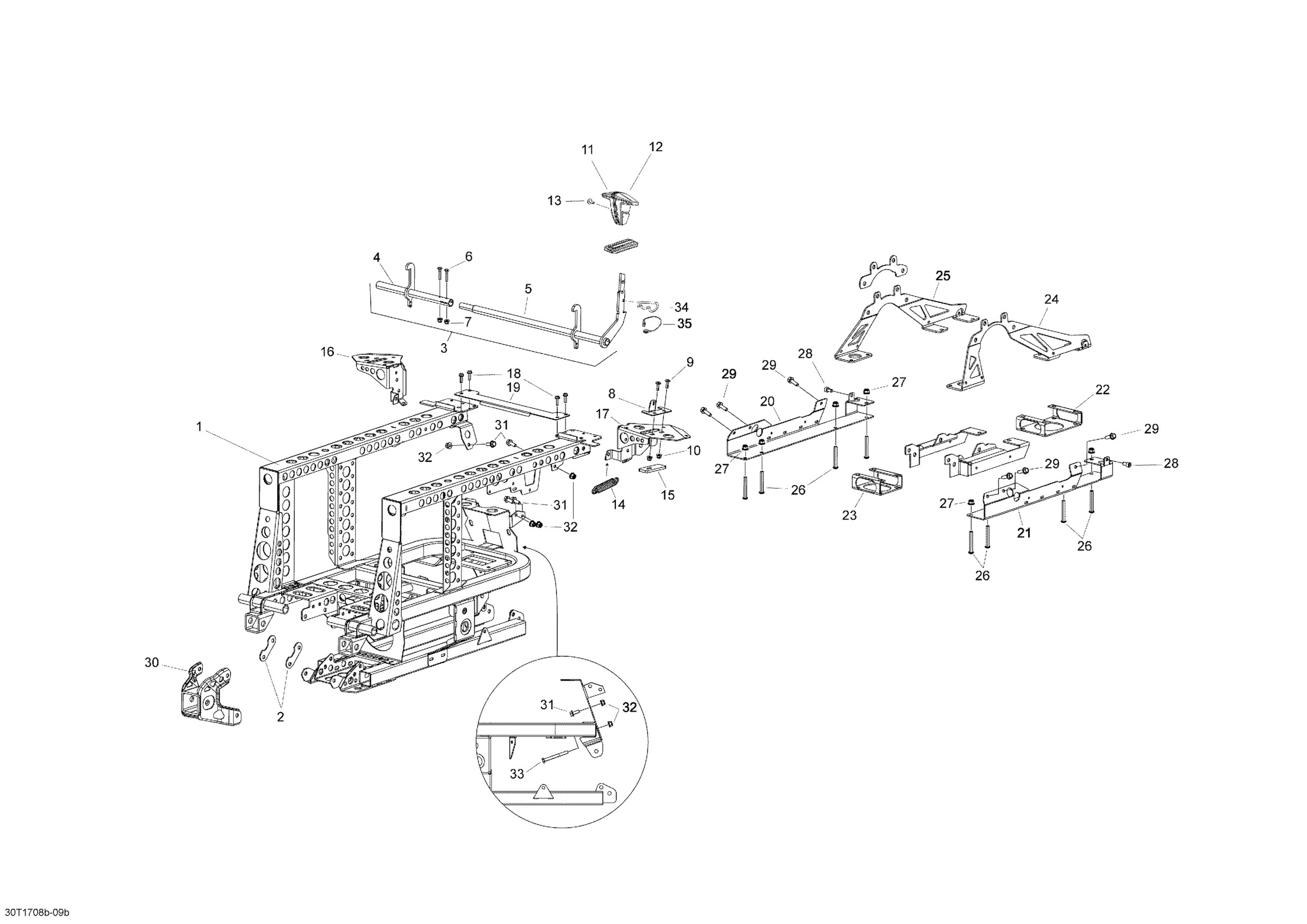

Can-Am Outlander 6X6 - 650 EFI, 2017 09- Rear Frame Diagram

#

Description
Price

1

Rear Frame Painted

705204221

$1,039.99

2

Support Plate

705203564

$24.49

3

Not Available As Spare Part - Friction Washer

Unavailable

4

LH Tube

705203669

$104.99

5

RH Tube

705203670

$119.99

6

Hex. Screw M6 X 30

207063044

$1.26

7

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

8

Lever Support

705203834

$18.49

9

Torx Screw M6 X 20

250000722

$1.68

10

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

11

Left Half Knob

705008420

$20.99

12

Right Half Knob

705008048

$19.49

13

Not Available As Spare Part - Friction Washer

Unavailable

14

Spring

415107100

$6.35

15

Rubber Collar

708301280

$20.99

16

LH Rear Fender Support

705203611

$76.99

17

RH Rear Fender Support

705203612

$76.99

18

Hex. Flange Screw M6 X 20, Scotch Grip

250000331

$2.11

19

FILLER PLATE - Call your local BRP dealership

705203954

Unavailable

20

LH Lower Beam Reinforcement

705203724

$41.99

21

RH Lower Beam Reinforcement

705203725

$41.99

22

Front Support Plate

705203726

$96.99

23

Rear Support Plate

705203727

$96.99

24

LH Differential Support Reinforcement

705203728

$214.99

25

RH Differential Support Reinforcement

705203729

$214.99

26

Torx Screw M8 X 60, Scotch Grip

250000383

$7.29

27

Hex. Elastic Flange Nut M8

233281416

$1.48

28

Forming Screw HD.DIN.7500E

250000678

$3.91

29

Hex Forming Screw DIN.7500D

250000376

$7.51

30

Trailer Hitch

715006155

$88.99

31

Hex. Flange Screw M8 X 20

207682046

$1.90

32

Hex. Elastic Flange Nut M8

233281416

$1.48

33

HEX. SCREW M8 X 75 - Call your local BRP dealership

207087544

Unavailable

34

Cotter Spring

505073670

$2.19

35

Retainer Cable

293750069

$15.99
