Description

Price

1

Hex. Flange Screw M6 X 16

207661644

$0.74

2

Hex. Flange Screw M6 X 25

207662534

$2.11

3

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

4

Panel Nut M6 X 1.0

250100198

$2.11

5

Torx Screw K50 X 16

250000720

$1.69

7

Norma Clamp

293650091

$11.12

9

Norma Clamp

293650110

$4.54

10

Washer | DS 650 X

391301600

$0.48

11

Flat Washer

250200082

$0.42

12

Tie-Rap 180 mm

414115200

$0.11

14

Retainer Clip

707800278

$13.99

15

Drain Tube

707800080

$8.29

16

Intake Adaptor

707800333

$19.99

17

Air Filter

707800371

$40.99

18

Air Filter Maintenance Decal

707800373

Unavailable

19

Air Intake Hose

707800375

$55.99

20

Drain Tube

707800404

$2.89

21

Vent Hose

707800453

$25.99

22

Air Filter Adaptor

707800470

$19.99

31

Welded Air Box

707800599

Unavailable

32

Intake Silencer Cap Ass'y

715002174

$17.49

33

Gasket

293300175

$13.99

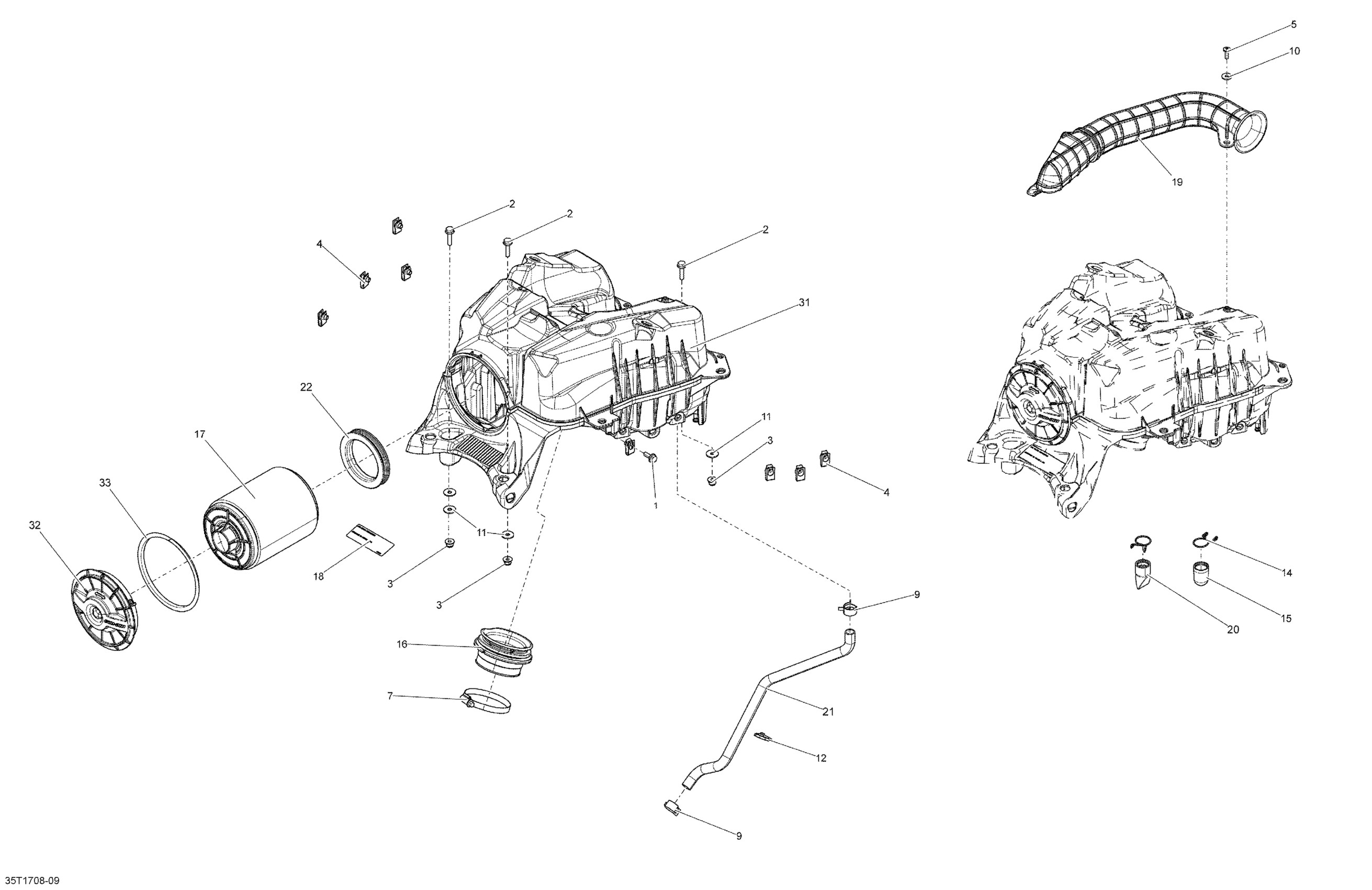

Can-Am Outlander 6X6 - 650 EFI, 2017 02- Air Intake Diagram

Hex. Flange Screw M6 X 16

Hex. Flange Screw M6 X 25

Hex. Flange Elastic Nut M6 x 1.0

Panel Nut M6 X 1.0

Torx Screw K50 X 16

Norma Clamp

Norma Clamp

Washer | DS 650 X

Flat Washer

Tie-Rap 180 mm

Retainer Clip

Drain Tube

Intake Adaptor

Air Filter

Air Filter Maintenance Decal

Air Intake Hose

Drain Tube

Vent Hose

Air Filter Adaptor

Welded Air Box

Intake Silencer Cap Ass'y

Gasket
