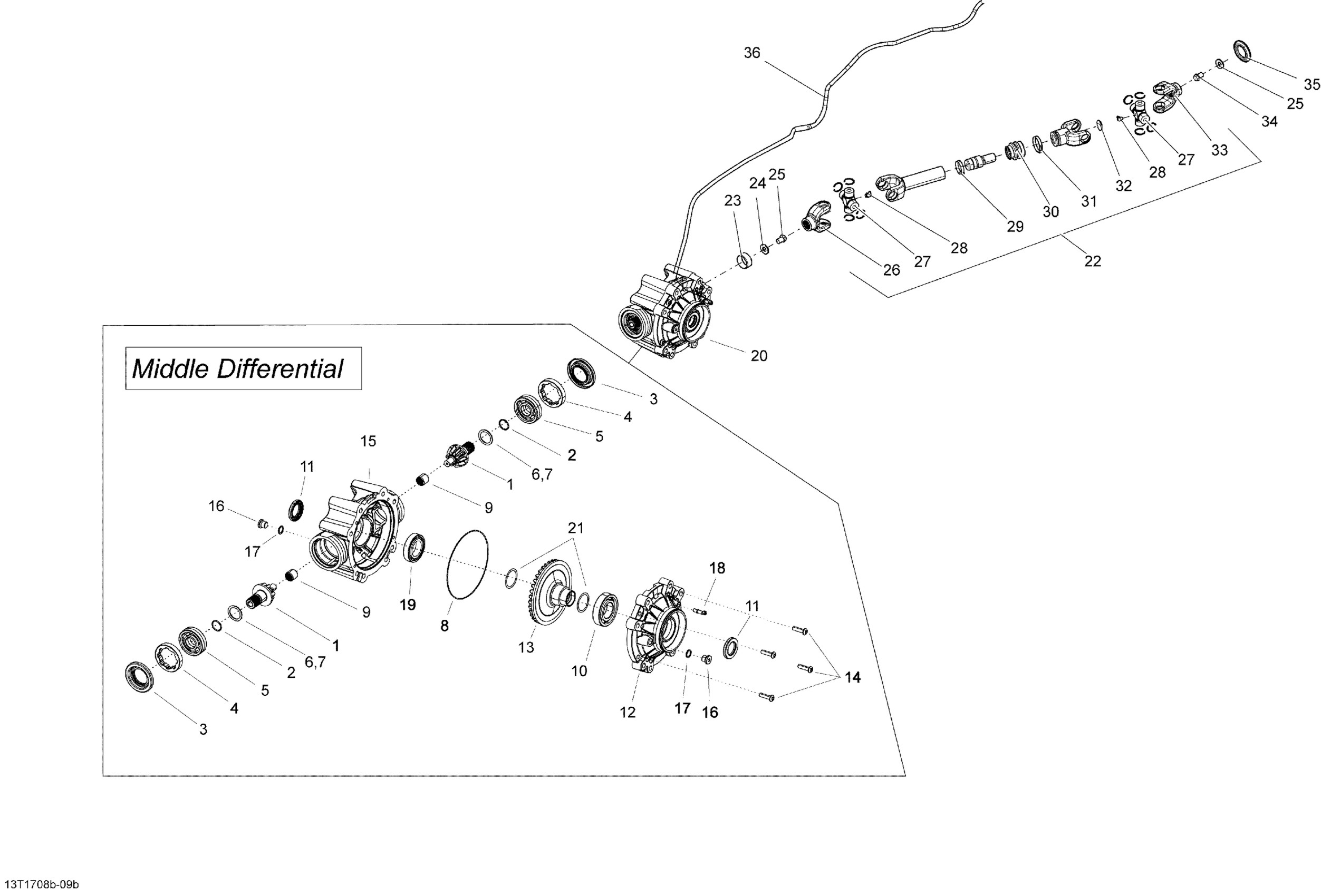

Can-Am Outlander 6X6 - 1000 EFI, 2017 08- Drive System, Rear Middle Diff Diagram

#

Description
Price

1

PINION 10 TOOTH - Call your local BRP dealership

705501571

$234.99

2

O-Ring | 4X4

705500267

$7.65

3

Oil Seal | 4X4

705401481

$19.49

4

Nut

705502059

$32.99

5

Ball Bearing | 4X4

705500260

$31.99

6

Pinion Gear Shim

705501162

$16.49

7

Pinion Gear Shim 1.67 mm

705502061

$18.99

8

Seal | 4X4

705500265

$18.76

9

Needle Bearing

705501408

$69.99

10

Ball Bearing

705502738

$59.49

11

Oil Seal

705501996

$21.99

12

Cover Machined

705501918

Unavailable

13

Gear, 36 Tooth

705501397

$449.99

14

SOCKET HEAD SCREW M8 X 30 - Call your local BRP dealership

205483046

Unavailable

15

Middle Differential Crakcase Machined

705501920

Unavailable

16

Fill Level Plug | 4X4

705500504

$10.01

17

Copper Washer | 4X4

705500506

$0.45

18

VENT VALVE - Call your local BRP dealership | 4X4

705500893

Unavailable

19

Ball Bearing

705502737

$48.49

20

Final Drive Unit

705502230

Unavailable

21

Differential Shim 0.02 mm

705502060

$13.76

22

Shaft Ass'y Kit | Incldues 1 to 5

703500991

$328.49

23

Wear Ring | 4X4

705400036

$26.49

24

Flat Washer M12

250200102

$2.11

25

HEX FLANGED SCREW M12 X 16, SCOTCH GRIP - Call your local BRP dealership

250000378

Unavailable

26

Fixe Yoke

715900101

$29.49

27

Universal Joint

715900326

$68.99

28

Grease Fitting

715900184

$5.24

29

Oetiker Gear Clamp 36.1MM

509000045

$8.29

30

Rubber Boot

715900118

$14.30

31

Oetiker Gear Clamp 44.0MM | 4X4

293650138

$8.89

32

COVER - Call your local BRP dealership

715900187

Unavailable

33

Fixed Joint

715900129

$24.99

34

Hex Flange Screw M12 X 16

250001039

$2.11

35

Protector

705501123

$7.55

36

Polyurethane Hose 10000Mm Long

219704410

$56.99
