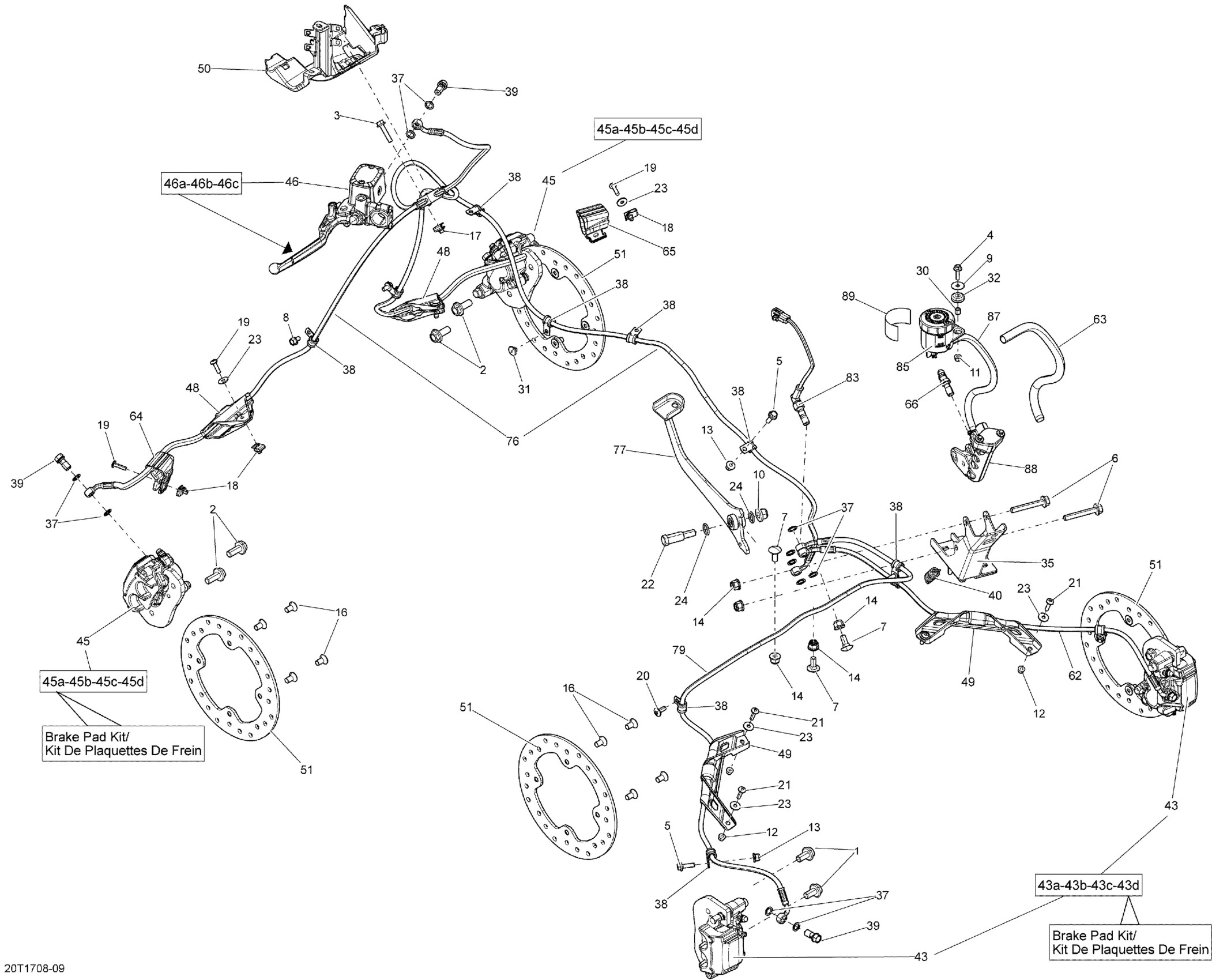

Can-Am Outlander 6X6 - 1000 EFI, 2017 06- Hydraulic Brakes Diagram

#

Description
Price

1

Hex. Flange Screw M10 X 20

207502046

$2.11

2

Hex. Flange Screw M10 X 25

207502546

$2.11

3

Hex. Flange Screw M6 X 30, Scotch Grip

207563044

$4.44

4

Hex.Flange Screw M5 X 20

207652044

$1.90

5

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

6

Hex. Flange Screw M8 X 55

207685544

$5.39

7

Carriage Bolt, M8 X 20

207782044

$1.90

8

Hex. Flange Screw M6 X 10

210261040

$1.48

9

Flat Washer

224060201

$1.26

10

Hex. Flange Elastic Nut M10

233201436

$2.11

11

Flange Elastic Nut M5

233251434

$2.00

12

Elastic Flange Nut M5

233251494

$2.11

13

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

14

Hex. Flange Elastic Nut M8

233281414

$1.47

16

Torx Screw M8 X 16, Scotch Grip

235381646

$2.53

17

Panel Nut M6 X 1.0

250100198

$2.11

18

Panel Nut M5 X 0.8

250000958

$4.23

19

Torx Screw M5 X 20

250000724

$1.69

20

Torx Screw M6 X 16

250000755

$0.87

21

Torx Screw M5 X 20

250000792

$2.11

22

Shoulder Screw M10

250000513

$6.77

23

Washer M5

250200025

$0.74

24

O-Ring

293300144

$3.82

30

Bushing

293900112

$10.06

31

Pop Rivet 3/16"

390406500

$0.88

32

Grommet

414036300

$2.79

35

Brake Pedal Bracket

705202000

$38.99

37

Copper Washer

705601628

$4.44

38

Clamp

293650256

$5.49

39

Banjo Bolt (M10 x 1.25 thread)

705600609

$0.99

40

Brake Pedal Spring

705600792

$9.10

43

RH Rear Brake Caliper | Includes 41 to 45

705602190

$307.49

43

LH Rear Caliper Ass'y | Includes 47 to 51

705600860

$328.49

43a

Pin Set

705601016

$9.26

43b

Bleeding Screw

705601017

$6.35

43c

Retaining Spring

705601018

$7.55

43d

RH Organic Brake Pad Kit

705601014

$42.49

43d

LH Organic Brake Pad Kit

705601015

$42.49

45

RH Front Caliper Ass'y | Includes 1 to 5

705600861

$270.49

45

LH Front Caliper Ass'y | Includes 6 to 10

705600862

$270.49

45a

RH Organic Brake Pad Kit

705601014

$42.49

45a

LH Organic Brake Pad Kit

705601015

$42.49

45b

Pin Set

705601016

$9.26

45c

Bleeding Screw

705601017

$6.35

45d

Retaining Spring

705601018

$7.55

46

LH Front Master Cylinder | Includes 11 to 14

705601430

$259.99

46a

Lever Set

705601013

$63.99

46b

Clamp And Screw Kit

507032477

$23.99

46c

Cap Set

219800096

$21.99

48

Hose Guard

705601893

$4.55

49

REAR HOSE PROTECTOR - Call your local BRP dealership

705600963

Unavailable

50

Front Hose Bracket

705600983

$13.71

51

Disc Brake

705600999

$67.99

62

RH Brake Line | Includes 24 to 25

705601005

$46.49

63

Tubing 10 MM 1000MM Long

219704407

$2.79

64

LH Hose Bracket

705601048

$4.55

65

RH Hose Bracket

705601049

$4.55

66

Bleeding Screw

705601051

$12.16

76

LH RH Front Hose

705601519

$174.99

77

Deep Black, Brake Pedal

705602163

$154.99

79

BRAKE LINE REAR LH - Call your local BRP dealership

705601221

Unavailable

83

Brake Switch

705601251

$51.99

85

Oil Tank

705601020

$39.99

87

Oil Housing Hose

705601019

$15.87

88

Rear Master Cylinder Ass'y | Includes 28 to 30

705601776

$229.99

89

Heat Shield

705601311

$4.29
