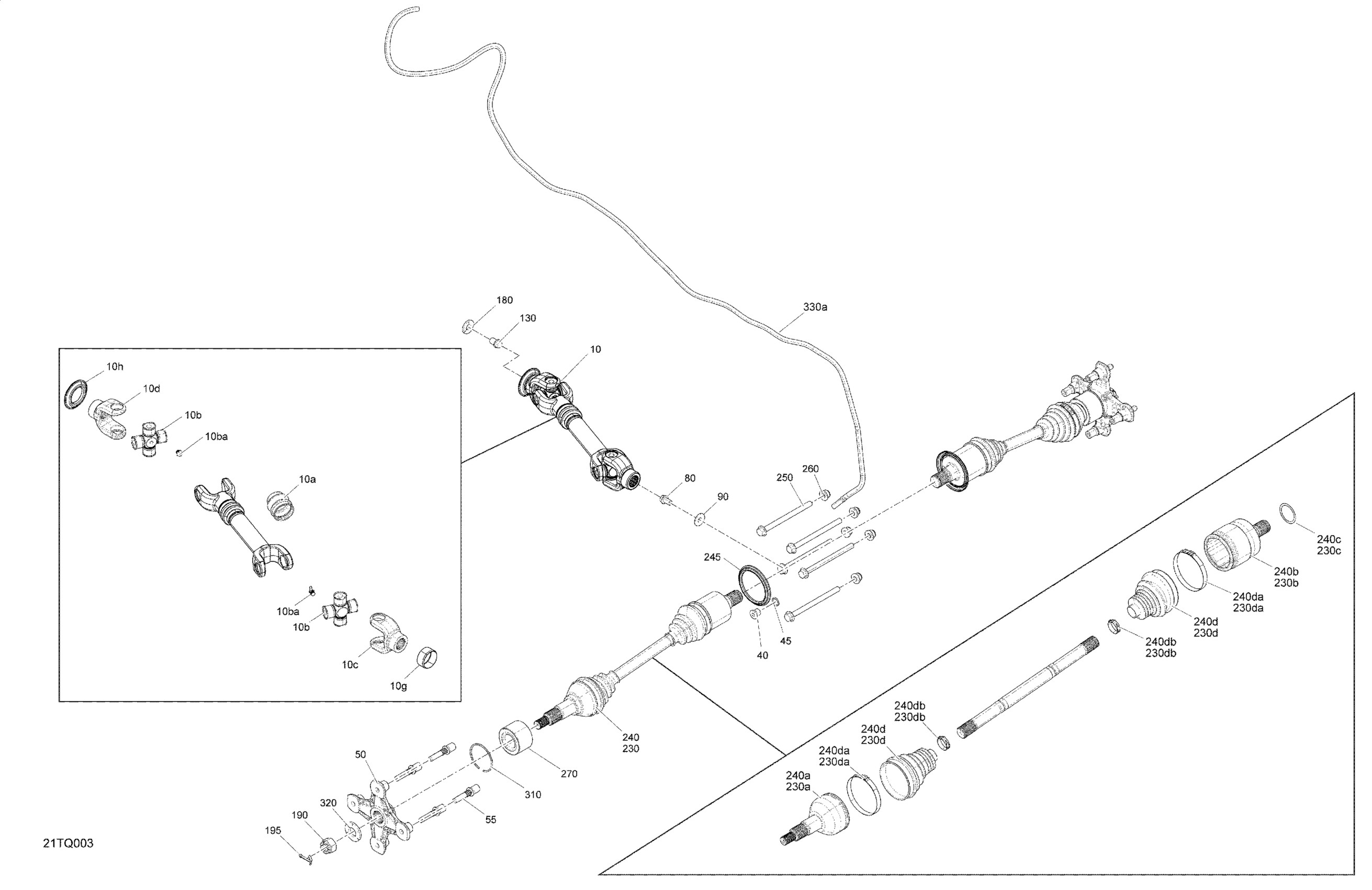

Can-Am 011 - Outlander - 1000R EFI - XMR Package 0005KHA00 0005KHC00 0005KHD00 04- Drive - Rear - Common Parts - 1000R XMR Diagram

Description

Price

Shaft Ass'y Kit

703500989

$206.49

10a

Rubber Boot

715900118

$14.30

10b

Universal Joint Ass'y | T3

703500846

$59.49

10ba

Grease Fitting | T3

715900295

$5.24

10c

Yoke

715900499

$24.99

10d

Joint | T3

715900436

$24.99

10g

Wear Ring | 4X4

705400036

$26.49

10h

Protector

705501123

$7.55

Fill Level Plug | 4X4

705500504

$10.01

Copper Washer | 4X4

705500506

$0.45

Wheel Hub

705501900

$132.49

Wheel Stud | Tightening Torque: See Bulletin ATV 2020-4

250300643

$5.03

Hex. Flange Screw M10 X 16 S.GRIP

250001044

$2.11

Flat Washer M10 | 4X4

250200014

$1.49

130

Hex Flange Screw M12 X 16

250001039

$2.11

180

Conical Spring Washer M12

250200005

$3.27

190

Hex. Flange Castellated Nut M18

232291413

$7.98

195

Cotter Pin

250400071

$2.11

230

Performance CV Axle - Rear Right

705501848

$275.49

230a

CV Joint

705501776

$259.49

230b

PLUNGING JOINT - Call your local BRP dealership

705501780

Unavailable

230c

Circlip

705501781

$6.50

230d

Boot Kit

705501864

$42.49

230da

Oetiker Clamp, 82.1 mm

715900241

$10.33

230db

Oetiker Clamp, 27.3 mm

715900242

$10.33

230e

Joint Protector

705501842

$8.85

240

Performance CV Axle - Rear Left

705501847

$275.49

240a

CV Joint

705501776

$259.49

240b

PLUNGING JOINT - Call your local BRP dealership

705501780

Unavailable

240c

Circlip

705501781

$6.50

240d

Boot Kit

705501864

$42.49

240da

Oetiker Clamp, 82.1 mm

715900241

$10.33

240db

Oetiker Clamp, 27.3 mm

715900242

$10.33

240e

Joint Protector

705501842

$8.85

245

Wear Ring

705501124

$7.90

250

Hex. Flange Screw M10 X 135

250001041

$5.59

260

Hex. Flange Elastic Nut M10

233201436

$2.11

270

Ball Bearing

293350150

$52.99

310

Circlip

293370019

$4.68

320

Conical Spring Washer M18

250200171

$7.65

330a

Polyurethane Hose 10000Mm Long

219704410

$56.99
