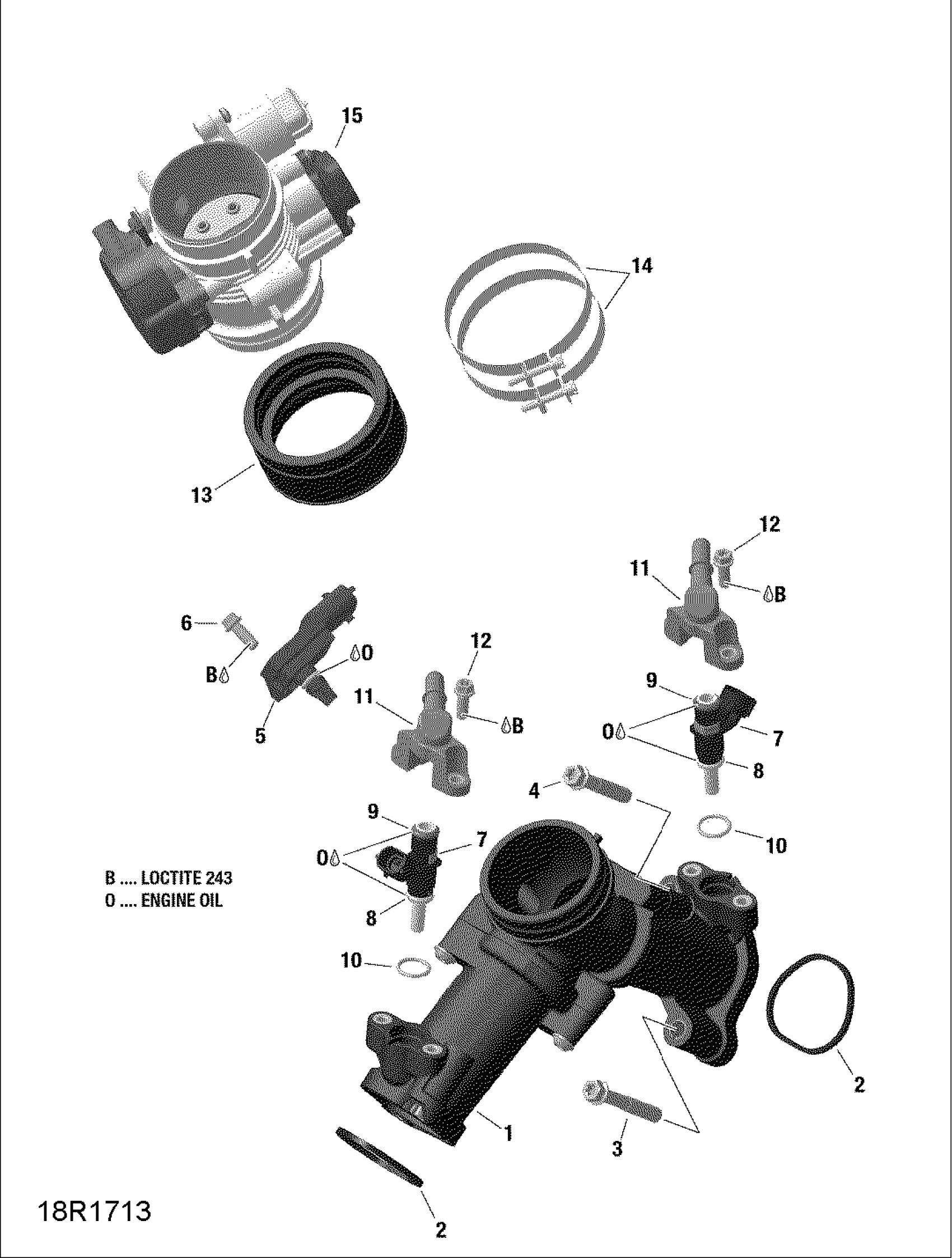

Can-Am 011 - Outlander - 1000R EFI - XMR Package 0005KHA00 0005KHC00 0005KHD00 02- Air Intake Manifold and Throttle Body - 1000R EFI Diagram

Description

Price

Air Intake Manifold

420667520

$73.99

Gasket

420630642

$5.39

Torx Flange Screw M8 X 55

420641213

$7.41

Hex. Flange Screw M8 X 45

420641208

$7.51

Pressure And Temperature Sensor

707000995

$88.99

Torx Flange Screw M6 X 16

420440164

$2.19

7>9

Injection Valve Ass'Y | Includes 18 to 20

420874833

$158.99

O-Ring

420431890

$7.49

O-Ring

420631220

$14.28

O-Ring

420631296

$0.76

Fuel Rail

420874901

$24.49

Torx Flange Screw M6 X 16

420440162

$3.17

Intake Neck

420267042

$17.05

Clamp

420251209

$8.57

Throttle Body Ass'y | Include 14 to 14a

420685325

$921.99

15a

Position Sensor

715900503

$76.99
