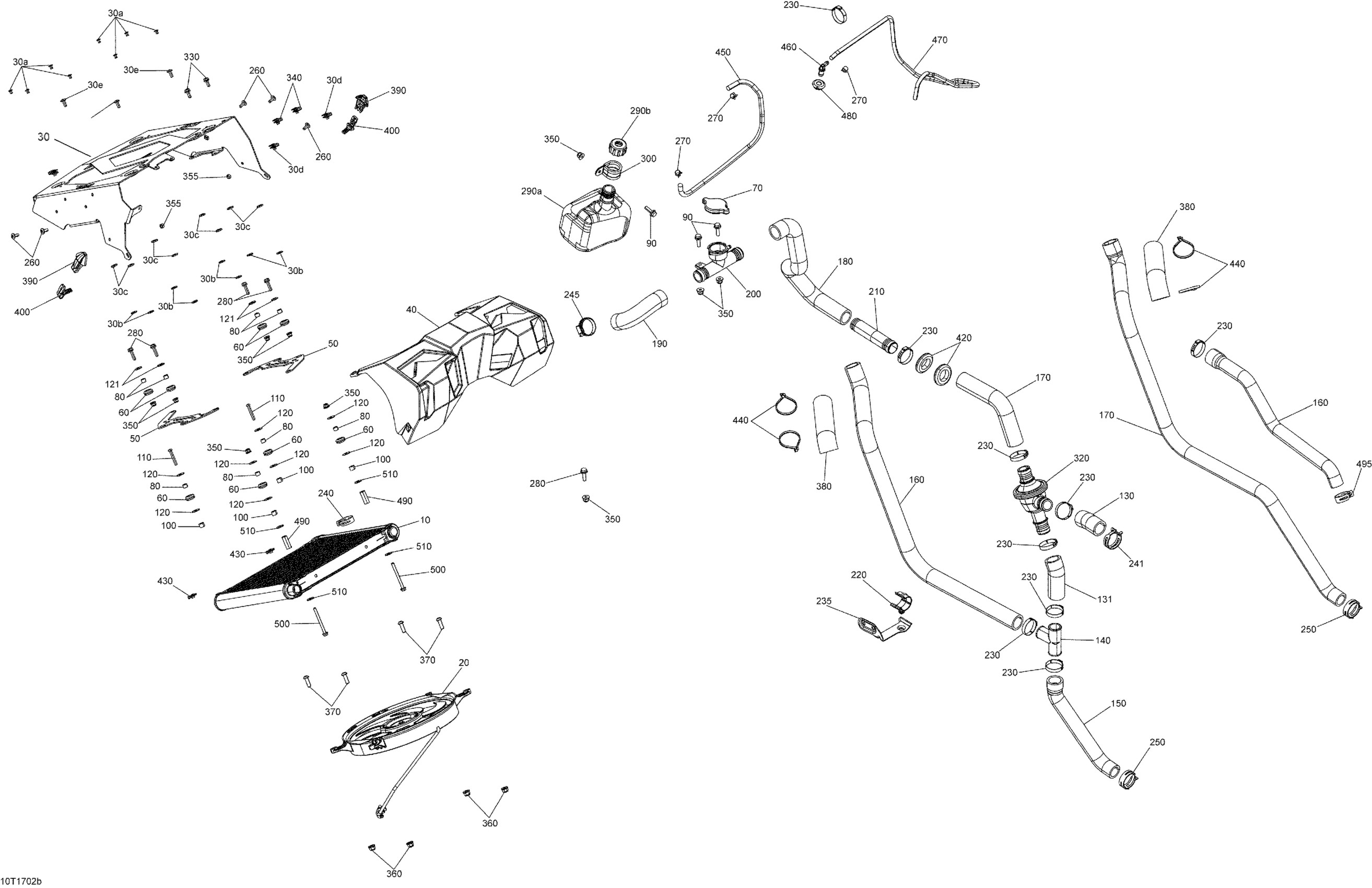

Can-Am 011 - Outlander - 1000R EFI - XMR Package 0005KHA00 0005KHC00 0005KHD00 01- Cooling System - XMR Diagram

#

Description
Price

10

Radiator

709200286

$476.99

20

Fan Ass'y

709200565

$244.99

20

Fan Ass'y

709200567

$284.99

30>30e

Support Ass'y

709200556

$338.99

30a

Rivet 3/16"

293150102

$0.70

30b

Washer

517124300

$0.19

30c

Rubber Washer 5 mm

250200024

$2.19

30d

Panel Nut M6 X 1.0

250100198

$2.11

30e

Torx Head Screw M6 X 16

250000717

$2.11

40

Protection Cover Kit

703100399

$88.99

50

Support

709200495

$27.49

60

Grommet

293720062

$5.39

70

Radiator Pressure Cap

709200207

$25.49

80

Spacer

707000058

$13.49

90

Hex. Flange Screw M6 X 20

207662034

$2.11

100

Bushing

708001129

$11.99

110

Torx Screw M6 X 30

235563054

$4.44

120

Flat Washer

250200040

$1.90

121

Flat Washer M6, Stainless

234062600

$0.77

130

Cylinder Hose | Engine 850-1000R

709200630

$8.60

131

Cylinder Hose | Engine 850-1000R

709200629

$8.60

140

T-Fitting

509000219

$15.89

150

Outlet Hose | Engine 850-1000R

709200787

$18.56

160

Outlet Hose

709200484

$34.99

160

Outlet Hose | Engine 850, 1000R

709200801

$35.99

170

Outlet Hose | Engine 850, 1000R

709200788

$16.65

170

Outlet Hose | Engine 650

709200634

$73.99

180

Outlet Hose

709200429

$34.99

190

Hose

709200891

$14.31

200

Filler Neck

709200422

$18.49

210

Nipple Tube 1"

709200448

$20.99

220

Retainer

275500526

$4.55

230

Gear Clamp

509000162

$7.29

235

Hose Support

709200641

$9.69

240

Norma Spring Clamp

293650166

$4.44

241

Norma Spring Clamp

293650166

$4.44

245

Norma Gear Clamp

293650098

$4.44

250

Norma Spring Clamp

293650108

$4.12

260

Torx Head Screw M6 X 16

250000717

$2.11

270

Spring Clamp

414554800

$0.88

280

Hex. Flange Screw M6 X 25

207662544

$0.64

290a

Coolant Tank Ass'y

709200624

$27.99

290b

Cap

709200586

$11.11

300

Hose Anchor

709200036

$11.12

320

Thermostat

709200406

$98.99

330

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

340

Panel Nut M6 X 1.0

250100198

$2.11

350

Flange Elastic Nut M6

233261434

$4.44

355

Elastic Stop Nut M6

232561414

$0.55

360

Hex. Flange Elastic Nut M8

233281414

$1.47

370

Button Head Torx Screw M8 X 25 S.Gr

250000757

$2.00

380

Tubing 35 MM 1000MM Long

219704428

$10.99

390

End Piece Latch

517304075

$4.69

400

Panel Latch

517303981

$12.99

420

Grommet

293720096

$11.49

430

CLIP NUT M6 X 1 - Call your local BRP dealership

715900148

Unavailable

440

Tie-Rap 180 mm

414115200

$0.11

450

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$121.99

460

Male Connector

414580700

$4.12

470

Polyurethane Hose 10000Mm Long

219704410

$56.99

480

Grommet

705003264

$4.09

490

Bushing

705202499

$6.67

495

Norma Spring Clamp

293650109

$4.12

500

Hex. Flange Screw M6 X 70

207667044

$0.85

510

Flat Washer M6, Stainless

234062600

$0.77
