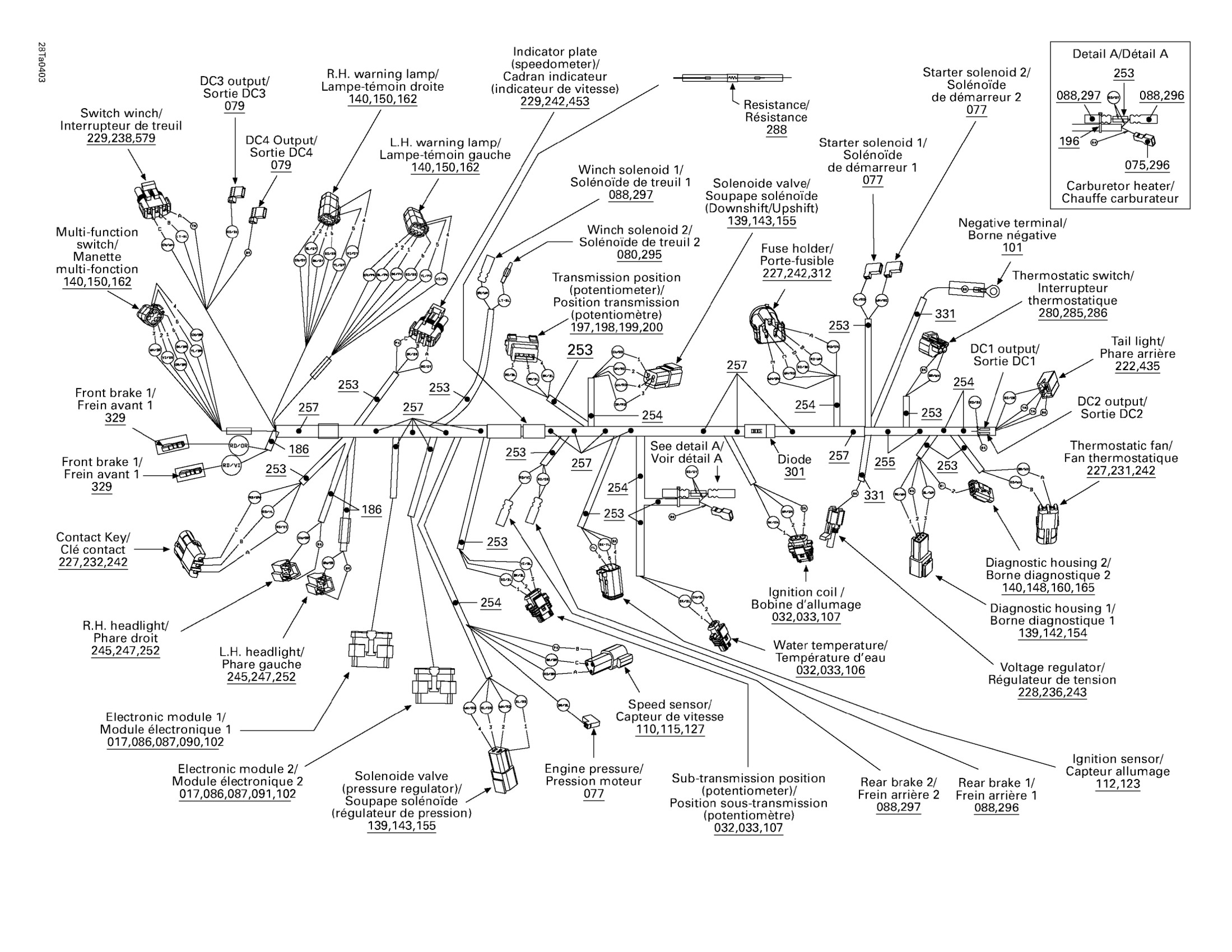

Can-Am Traxter XL, 2004 10- Main Harness Diagram

#

Description
Price

17

Harness Ass'y | Includes 17 - 454.

710000431

Unavailable

17

WIRE SEAL - Call your local BRP dealership

278000996

Unavailable

32

Female Terminal

278000998

$4.39

33

Wire Seal

278000999

$3.19

75

Female Terminal

409010700

$5.39

77

Female Terminal

409010300

$4.39

79

Female Terminal

710000038

$4.55

80

Male Terminal

278000230

$4.39

86

FEMALE TERMINAL - Call your local BRP dealership

278000995

Unavailable

87

FEMALE TERMINAL - Call your local BRP dealership

278000994

Unavailable

88

Female Terminal | DS 650 X

278001009

$3.19

90

Male Terminal Housing, 26 Circuits

278001062

Unavailable

90A

WIRE SEAL - Call your local BRP dealership

278001307

Unavailable

91

MALE TERMINAL HOUSING, 26 CIRCUITS - Call your local BRP dealership

278001063

Unavailable

91A

WIRE SEAL - Call your local BRP dealership

278001307

Unavailable

101

Open Barrel Terminal

278001392

$4.79

102

SEALING CAP - Call your local BRP dealership

293000070

Unavailable

106

Male Housing, 2 Circuits

278001005

$19.49

107

Male Housing, 3 Circuits

278000997

$19.49

110

Male Terminal

278000631

$4.39

112

Female Terminal

278000632

$2.09

115

Male Housing

278002378

$13.99

123

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

$21.99

127

Male Lock, 3 Circuits

409207600

$3.19

139

MALE TERMINAL - Call your local BRP dealership

409014800

Unavailable

140

FEMALE TERMINAL - Call your local BRP dealership

409015100

Unavailable

142

MALE HOUSING, 3 CIRCUITS - Call your local BRP dealership

710000044

Unavailable

143

MALE TERMINAL HOUSING, 4 CIRCUITS - Call your local BRP dealership

710000045

Unavailable

148

FEMALE TERMINAL HOUSING, 3 CIRC. - Call your local BRP dealership

515175249

Unavailable

150

FEMALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

409015400

Unavailable

154

MALE LOCK, 3 CIRCUITS - Call your local BRP dealership

710000043

Unavailable

155

MALE LOCK, 4 CIRCUITS - Call your local BRP dealership

710000046

Unavailable

160

Female Lock, 3 Circuits

515175248

Unavailable

162

FEMALE LOCK, 6 CIRCUITS - Call your local BRP dealership

409014900

Unavailable

165

PLUG - Call your local BRP dealership

515175303

Unavailable

186

Vinyl Tubing, Low Temp 3000Mm Long

219704424

$20.99

196

Tie Wrap 142 mm

293750002

$1.25

197

Female Terminal

710000051

Unavailable

198

Female Terminal Housing, 4 Circ.

710000032

Unavailable

199

WIRE SEAL - Call your local BRP dealership

710000050

Unavailable

200

Cap

710000049

Unavailable

222

Female Housing

409204300

Unavailable

227

Male Terminal

409004300

$5.61

228

Female Terminal

409007300

$0.45

229

Female Terminal

278000223

$3.19

231

Female Housing, 2 Circuits

278000217

$9.59

232

Female Terminal Housing, 3 Circuits | XT Models

278000281

$9.85

236

CONNECTOR_MALE 1 CAVITY - Call your local BRP dealership

278000219

Unavailable

238

Male Housing, 3 Circuits

278000273

$9.59

242

Wire Seal

278000218

$4.39

243

Wire Seal

710000048

$7.69

245

Female Lock, 2 Circuits

710000028

Unavailable

247

Female Terminal

710000027

Unavailable

252

FEMALE TERMINAL HOUSING, 2 CIRCUITS - Call your local BRP dealership

710000026

Unavailable

253

Tubing 6 Mm 3000Mm Long

219704425

$13.75

254

Was 409901700 Tubing (9 mm)

219704399

$84.99

255

Was 409901800 Tubing (13 mm)

219704400

$14.49

257

Was 409901600 Tubing 19mm

219704398

$95.99

259

Tubing 25 MM 1000MM Long

219704402

$15.99

280

Female Terminal

409012100

$4.55

285

HOUSING-TAB - Call your local BRP dealership

710000078

Unavailable

286

Seal

409012300

$4.54

288

Not Available As Spare Part - Friction Washer

Unavailable

295

Insulated Sheath

278001008

$3.28

296

Insulated Sheath

278000770

$7.90

297

Insulated Sheath

278001007

$3.58

298

Tape

293740005

Unavailable

301

Not Available As Spare Part - Friction Washer

Unavailable

312

MALE HOUSING, 5 CIRCUITS - Call your local BRP dealership

710000107

Unavailable

329

Female Terminal

710000082

$7.69

331

PROTECTOR TUBE, 4MM 1000MM LONG - Call your local BRP dealership

219704446

Unavailable

435

Not Available As Spare Part - Friction Washer

Unavailable

453

Female Terminal Housing, 3 Circuits

710000347

Unavailable

579

Wire Seal

710000504

$4.39
