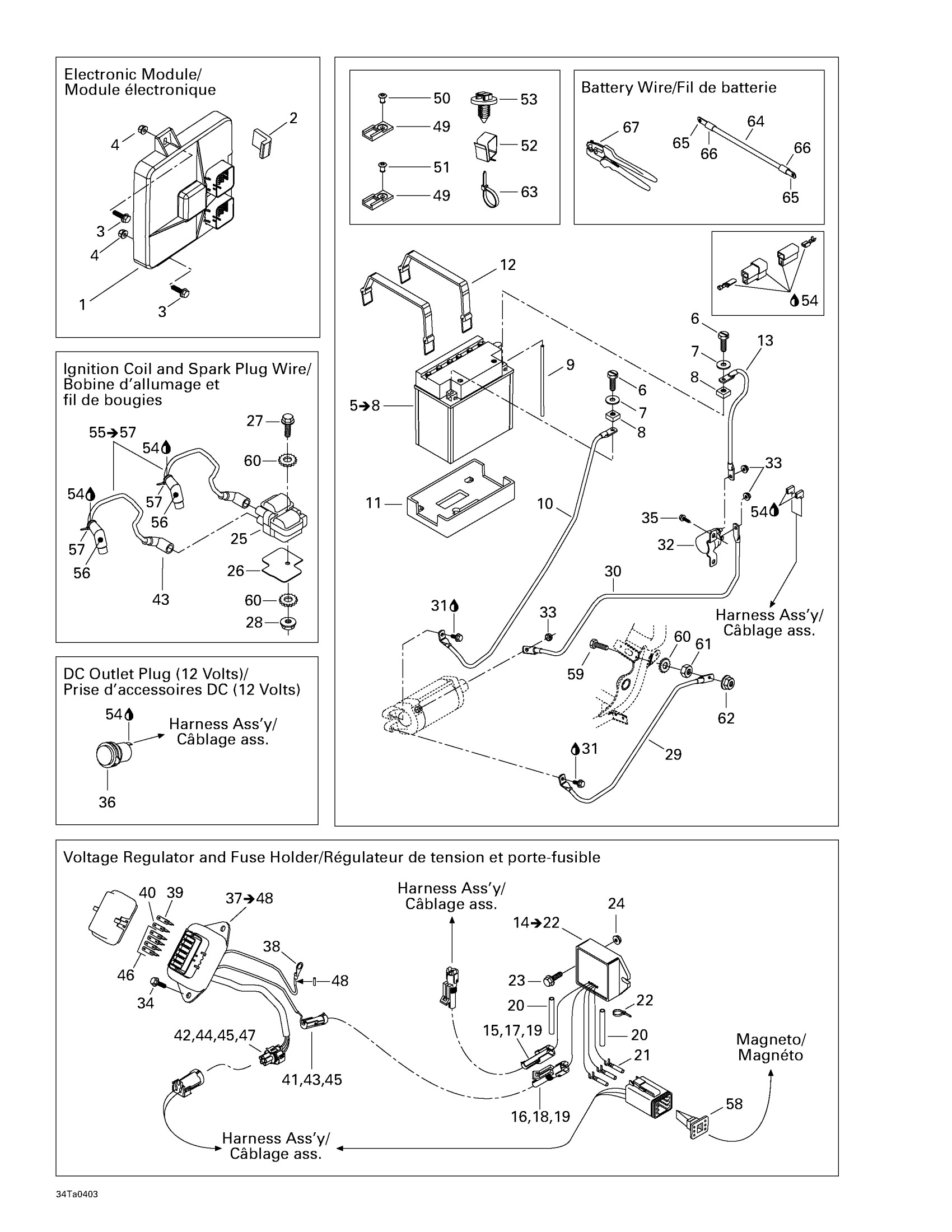

Can-Am Traxter XL, 2004 10- Battery And Electrical Accessories Diagram

#

Description
Price

1

Electronic Module

710000333

Unavailable

2

MODULE PROTECTOR - Call your local BRP dealership

278001166

Unavailable

3

Hex. Flange Screw M6 X 20

207662044

$2.00

4

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

5

Battery 19A | Includes 5 to 8

278001756

$153.36

6

Hex. Screw M6 X 16

207161644

$0.74

7

FLAT WASHER 6 MM - Call your local BRP dealership

211200018

Unavailable

8

Hex. Nut M6

232061414

$0.53

9

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$121.99

10

Battery Ground Cable

710000022

Unavailable

11

Lower Battery Pad

278001746

Unavailable

12

Retainer Strap

293850097

$11.64

13

Not Available As Spare Part - Friction Washer

Unavailable

14

Volt Regulator Ass'y | Includes 18 to 26

710000169

Unavailable

15

Male Terminal | XT Models

278000222

$3.19

16

Female Terminal

278000223

$3.19

17

Female Housing, 1 Circuit

278000161

$9.59

18

CONNECTOR_MALE 1 CAVITY - Call your local BRP dealership

278000219

Unavailable

19

Wire Seal

278000218

$4.39

20

LOW TEMPERATURE VINYL TUBING - Call your local BRP dealership

409901300

Unavailable

21

FEMALE TERMINAL - Call your local BRP dealership

278001661

Unavailable

22

Tie Wrap 94 mm | 4X4

293750001

$1.03

23

Hex. Flange Screw M6 X 20

207662044

$2.00

24

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

25

Ignition Coil

278001546

$158.99

26

Insulator Pad

710000073

$11.12

27

Hex. Flange Screw M6 X 50

207665044

$4.12

28

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

29

Engine Ground Cable

710000211

Unavailable

30

STARTER POSITIVE CABLE - Call your local BRP dealership

710000136

Unavailable

31

Loctite 243, 10 ml

293800060

$21.49

32

Starter Relay

515176011

$62.49

33

Hex. Elastic Stop Nut M6

232561600

$1.15

34

Hex. Flange Screw M6 X 16

210261650

$1.67

35

Hex. Self-threaded Screw 1/4"-20 X 3/4"

250000061

Unavailable

36

Outlet Power Kit, 12 Volts

861507200

$36.99

37

FUSE HOLDER ASS'Y - Call your local BRP dealership | Includes 42 to 53

710000579

Unavailable

38

Open Barrel Terminal

278001392

$4.79

39

Fuse, 30 Amperes

410917200

$3.28

40

Fuse, 20 Amperes

409003900

$3.28

41

Male Terminal

409004300

$5.61

42

Female Terminal

409007300

$0.45

43

Female Housing, 1 Circuit

278000161

$9.59

44

Wire Seal

278000218

$4.39

45

Wire Seal

710000048

$7.69

46

Fuse, 15 Amperes

278000343

$3.28

47

Female Housing, 5 Circuit

710000106

Unavailable

48

SHRINK TUBING - Call your local BRP dealership

710000482

Unavailable

49

Clip

270000141

$11.49

50

Pop Rivet 3/16"

390402400

$0.35

51

Pop Rivet 3/16"

390402200

$0.35

52

Clip

414227300

$1.67

53

Mount Dart

293730040

$1.04

54

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

55

Ens Fil Bougie *Wire-Spark Kit | Includes 54 to 57

703500744

$64.49

56

Spark Plug Connector

420265248

$31.99

57

Tie Wrap 94 mm | 4X4

293750001

$1.03

58

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

Unavailable

59

Hex. Screw M6 X 20 | XT Models

207162044

$0.76

60

External Serrated Lock Washer 6 mm

234461608

$1.15

61

Hex. Nut M6

232061414

$0.53

62

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

63

Tie Wrap 142 mm

293750002

$1.25

Tie-Rap 180 mm

414115200

$0.11

Tie Wrap 368 mm

293750008

$1.04

64

Cable Battery, no 6, meter)

278001690

Unavailable

65

Terminal 45°, Small Hole

278001682

Unavailable

TERMINAL 45, SMALL HOLE - Call your local BRP dealership

278001683

Unavailable

TERMINAL 90, SMALL HOLE - Call your local BRP dealership

278001684

Unavailable

FLAT TERMINAL, BIG HOLE - Call your local BRP dealership

278001685

Unavailable

TERMINAL 45, BIG HOLE - Call your local BRP dealership

278001686

Unavailable

TERMINAL 90, BIG HOLE - Call your local BRP dealership

278001687

Unavailable

FLAT TERMINAL - Call your local BRP dealership

278001688

Unavailable

Terminal 30°, 2 Holes

278001776

Unavailable

66

Was 710000483 Heat Shrink Tubing

219704447

$78.99

67

Crimp Plier

529035730

Unavailable
