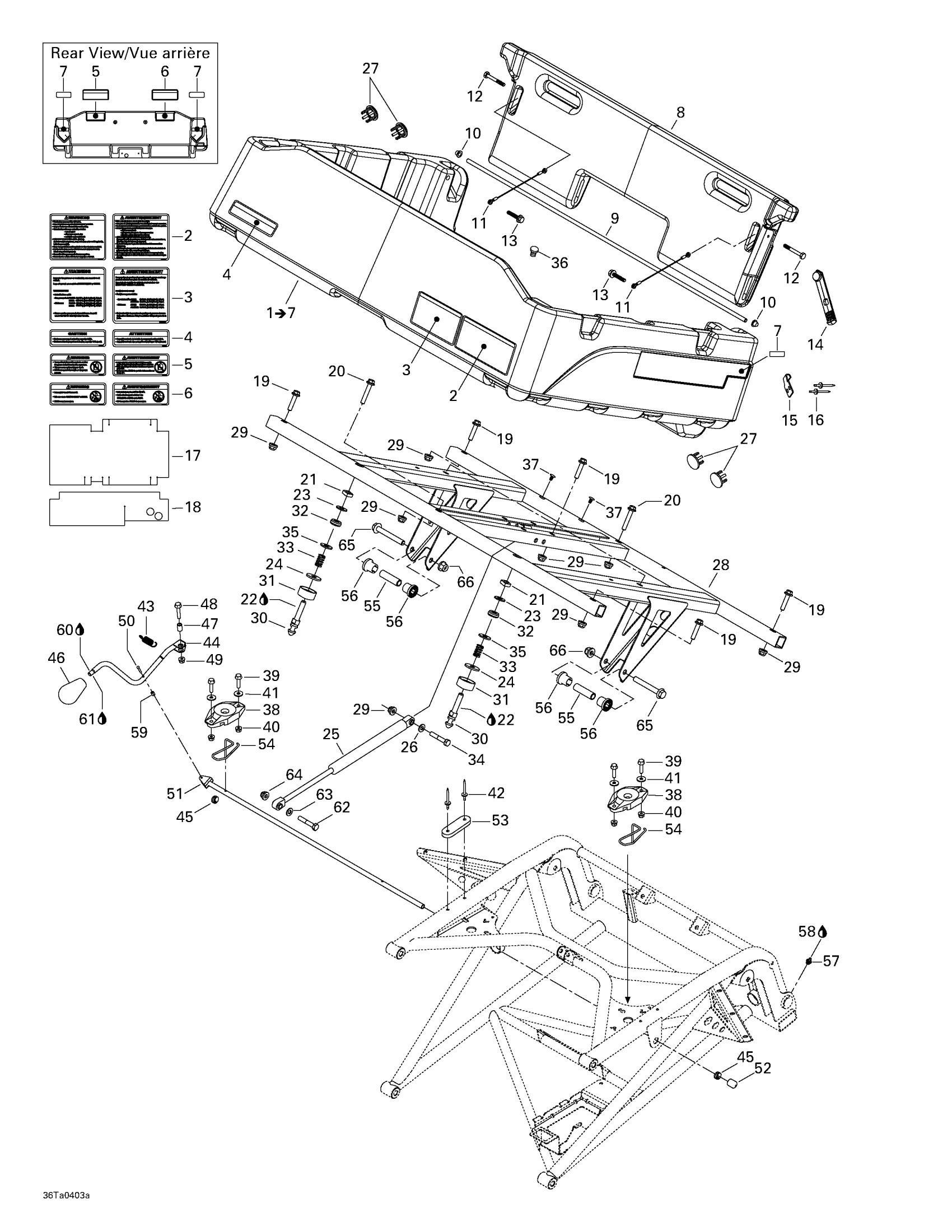

Can-Am Traxter XL, 2004 09- Rear Cargo Box Diagram

#

Description
Price

1

Box Kit (XL) | Includes 1 - 7.

703500158

Unavailable

2

Warning Label (English)

704900132

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

3

Warning Label (English)

704900373

Unavailable

Warning Label (French) | (Tire Pressure)

704900378

Unavailable

4

Warning Label (English)

704900134

Unavailable

5

Warning Label (English)

704900137

Unavailable

6

Warning Label (English)

704900138

Unavailable

7

REAR REFLECTOR - Call your local BRP dealership

704900128

Unavailable

8

Panel

705000220

Unavailable

9

Pivot Tube, black

705000294

Unavailable

10

Pushnut Cap Type 3/8 | (7489) (7448 From S/N v000709)

250100026

Unavailable

11

PANEL CABLE - Call your local BRP dealership

705000296

Unavailable

12

HEX. PLASTITE SCREW M6.81 X 45 - Call your local BRP dealership

243164540

Unavailable

13

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

14

Panel Bracket

705000297

Unavailable

15

LATCH SUPPORT - Call your local BRP dealership

291000166

Unavailable

16

RIVET_POP 1/8 X ,625 - Call your local BRP dealership

293150023

Unavailable

17

RH Heat Shield

705000313

Unavailable

LH Heat Shield

705000318

Unavailable

18

RH Heat Shield

705000316

Unavailable

LH Heat Shield

705000319

Unavailable

19

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.69

20

Hex. Flange Screw M8 X 50

207685044

$1.69

21

Square Nut M10

232802412

Unavailable

22

Loctite 271, 10 ml

293800005

$26.99

23

Washer

503175800

$3.28

24

WASHER - Call your local BRP dealership

506148100

Unavailable

25

Gas Shock

705000261

Unavailable

26

Flat Washer 8 mm

234081410

$0.83

27

PROTECTOR CAP - Call your local BRP dealership

293000096

Unavailable

28

Box Support

705000604

Unavailable

29

Hex. Flange Elastic Nut M8

233281414

$1.47

30

Stud Latch

291000664

Unavailable

31

Rubber Pad

293830025

Unavailable

32

RUBBER WASHER - Call your local BRP dealership

211100009

Unavailable

33

Spring

705000307

Unavailable

34

SCREW-HEX. M8 X 100 - Call your local BRP dealership

230080044

Unavailable

35

Flat Washer M10 | 4X4

250200014

$1.49

36

Cap

705000323

Unavailable

37

Mount Dart

293730040

$1.04

38

Latch Base

708000034

Unavailable

39

Hex. Flange Screw M6 X 25

207662544

$0.64

40

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

41

Flat Washer M6, Stainless

234062600

$0.77

42

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

43

BREAK PEDAL SPRING - Call your local BRP dealership

705600098

Unavailable

44

Lever, black

705000253

Unavailable

45

SLEEVE - Call your local BRP dealership

705000292

Unavailable

46

LEVER BUTTON - Call your local BRP dealership

705500022

Unavailable

47

Sleeve

293900078

$13.71

48

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

49

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

50

ROUND HEAD RIVET - Call your local BRP dealership

293150084

Unavailable

51

CENTRAL TUBE, BLACK - Call your local BRP dealership

705000289

Unavailable

52

CAP - Call your local BRP dealership

705000300

Unavailable

53

Rubber Support

705000299

Unavailable

54

SPRING - Call your local BRP dealership

705000259

Unavailable

55

Internal Bushing

706200061

Unavailable

56

Cushion

706200063

Unavailable

57

Grease Fitting

408200700

$3.49

58

Synthetic Grease, 400 G

293550010

Unavailable

59

RING HOLDER - Call your local BRP dealership

705000305

Unavailable

60

Was 293800041 Loctite Primer 7649

219704458

$39.99

61

Loctite 243, 10 ml

293800060

$21.49

62

Hex. Screw M8 X 45

207084544

$1.48

63

Flat Washer 8 mm

234081410

$0.83

64

Hex. Flange Elastic Nut M8

233281414

$1.47

65

Hex. Flange Screw M10 X 70

207607046

$2.96

66

Hex. Flange Nut M10

233001414

Unavailable
