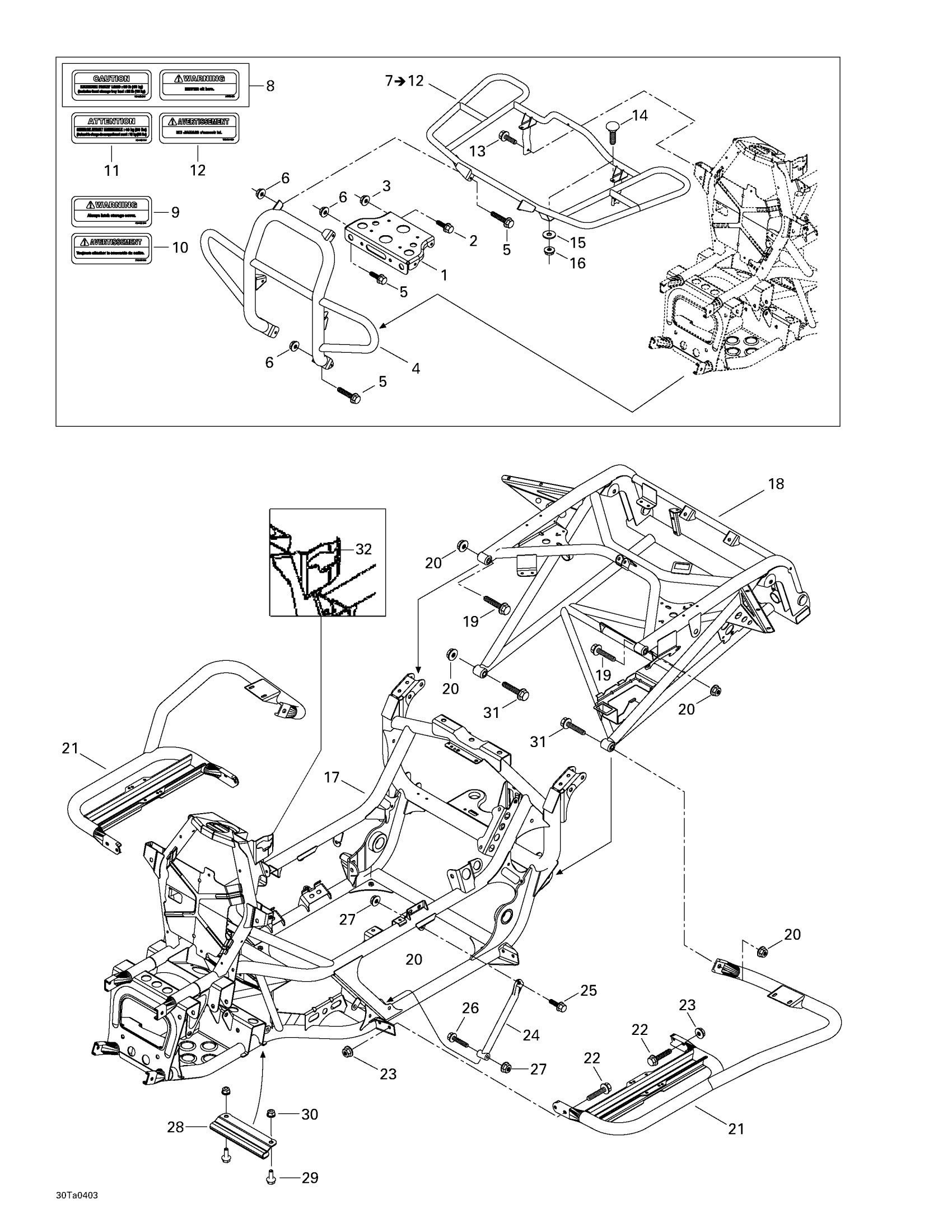

Can-Am Traxter XL, 2004 09- Frame And Luggage Racks Diagram

#

Description
Price

1

WINCH LATCH, BLACK - Call your local BRP dealership

705200196

Unavailable

2

Hex. Flange Screw M8 X 20

207682044

$1.15

3

Hex. Flange Elastic Nut M8

233281414

$1.47

4

Front Bumper, Black | Traxter 5 Speed STD

705000591

Unavailable

5

Hex. Flange Screw M8 X 20

207682044

$1.15

6

Hex. Flange Elastic Nut M8

233281414

$1.47

7

Front Luggage Rack Kit (Black) | Includes 22 - 27.

703500350

Unavailable

8

Warning Label, Front Load | Includes 8 - 9.

704900037

Unavailable

9

Warning Label, Tray Cover

704900038

Unavailable

10

Warning Label (French) | (Front Trunk Cover)

704900039

Unavailable

11

Caution Decal, Maximum Load | French Version

704900016

Unavailable

12

WARNING LABEL (FRENCH) - Call your local BRP dealership | (Do Not Sit)

704900018

Unavailable

13

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

14

TRUSS PHILLIPS SCREW M6 X 25 - Call your local BRP dealership

250000035

Unavailable

15

Flat Washer

224060201

$1.26

16

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

17

Frame, Black

705200723

Unavailable

18

Frame Extention (Black)

705200567

Unavailable

19

Hex. Flange Screw M10 X 55

207605544

$3.38

20

Hex. Flange Elastic Nut M10

233201414

$1.58

21

LH Footrest, black

705200887

Unavailable

RH Footrest, black

705200888

Unavailable

22

Hex. Flange Screw M8 X 20

207682044

$1.15

23

Hex. Flange Elastic Nut M8

233281414

$1.47

24

Removable Brace, Black

705200143

Unavailable

25

Hex. Flange Screw M8 X 25

207682544

$1.35

26

Hex. Flange Screw M8 X 50

207685044

$1.69

27

Hex. Flange Elastic Nut M8

233281414

$1.47

28

Bracket, Black

705200575

Unavailable

29

Hex. Flange Screw M6 X 16

207661644

$0.74

30

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

31

Hex. Flange Screw M10 X 60

207606044

$3.38

32

Shift Patern

705200351

Unavailable
