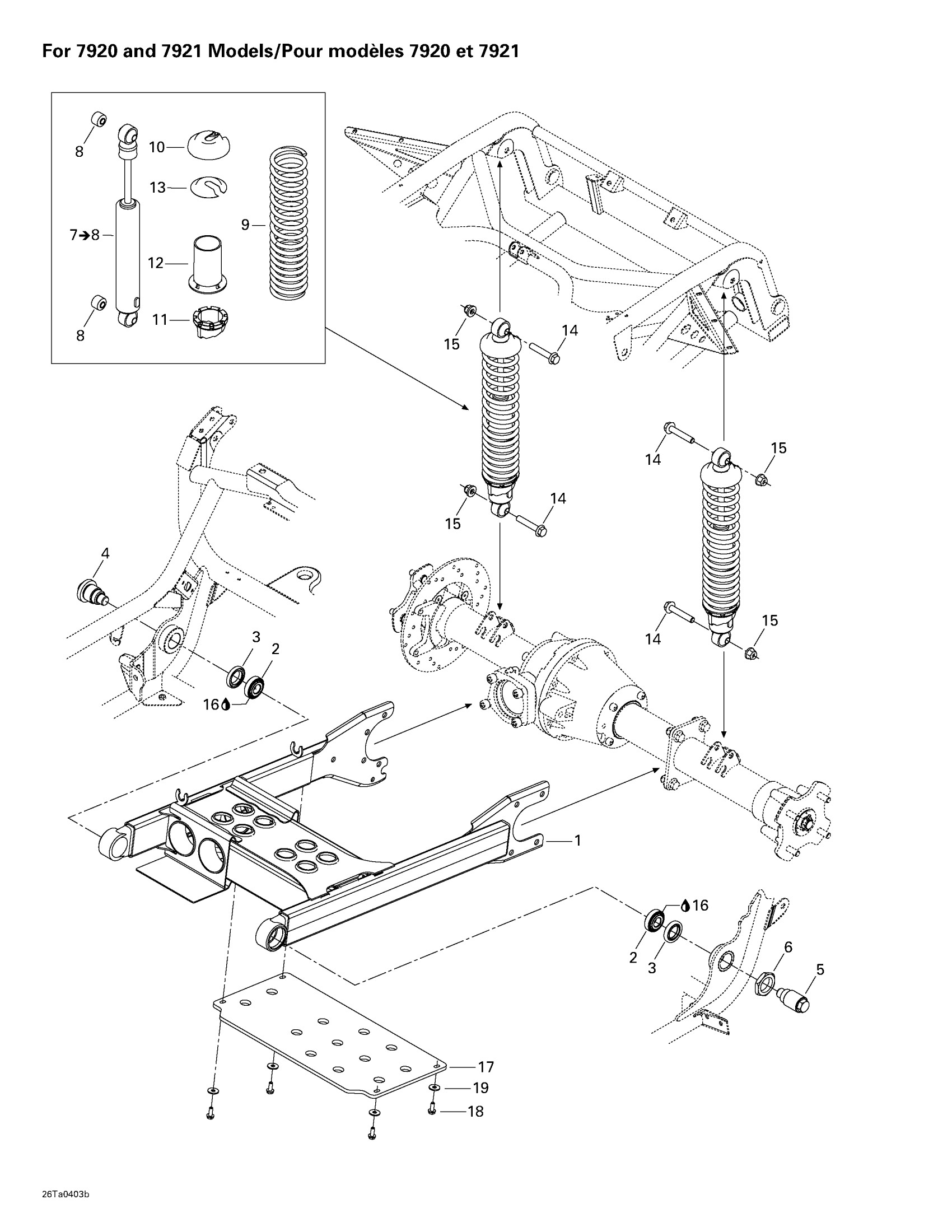

Can-Am Traxter XL, 2004 08- Rear Suspension (for 7920 And 7921 Models) Diagram

#

Description
Price

1

SWING ARM, BLACK - Call your local BRP dealership

706000295

Unavailable

2

CONE BEARING - Call your local BRP dealership

706000169

Unavailable

3

OIL SEAL - Call your local BRP dealership

706000010

Unavailable

4

RH Pivot Bolt

706000092

Unavailable

5

LH PIVOT BOLT - Call your local BRP dealership

706000093

Unavailable

6

HEX. JAM NUT - Call your local BRP dealership

706000006

Unavailable

7

Rear Shock | Includes 11 - 12.

706000239

Unavailable

8

Lower Bushing | Traxter XT.

706000147

Unavailable

9

SPRING_COMPRESSION B-190 PAINTED - Call your local BRP dealership

706000114

Unavailable

10

Spring Stopper

706200881

$12.99

11

Cam

503189205

Unavailable

12

Protector

706000137

Unavailable

13

Cap

706200785

$4.69

14

Hex. Flange Screw M10 X 55

207605544

$3.38

15

Hex. Flange Elastic Nut M10

233201414

$1.58

16

Synthetic Grease, 400 G

293550010

Unavailable

17

Protector Plate

706200293

Unavailable

18

Hex. Flange Screw M6 X 16

210261650

$1.67

19

Flat Washer

391302200

Unavailable
