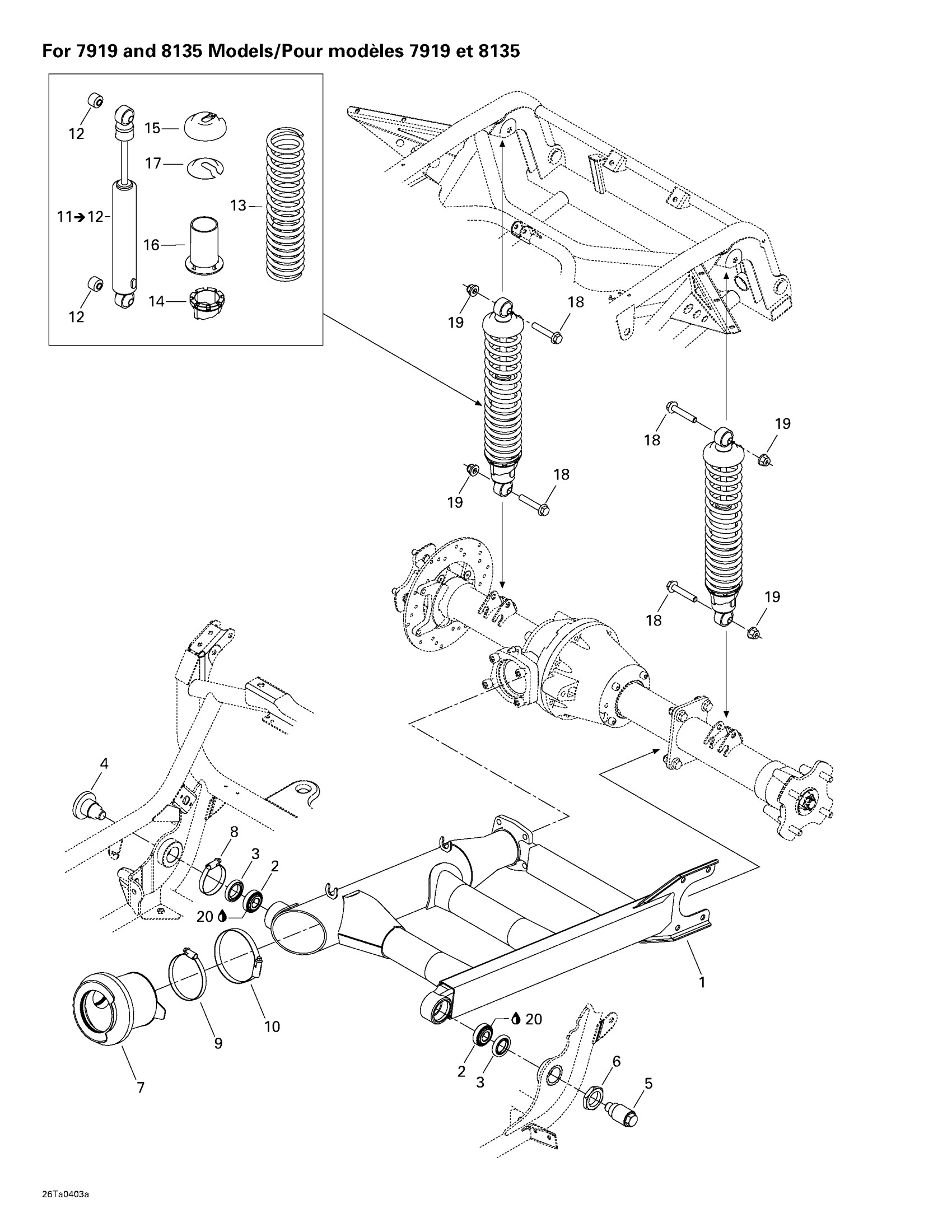

Can-Am Traxter XL, 2004 08- Rear Suspension (for 7919 And 8135 Models) Diagram

#

Description
Price

1

Swing Arm

706000108

Unavailable

2

CONE BEARING - Call your local BRP dealership

706000169

Unavailable

3

OIL SEAL - Call your local BRP dealership

706000010

Unavailable

4

RH Pivot Bolt

706000092

Unavailable

5

LH PIVOT BOLT - Call your local BRP dealership

706000093

Unavailable

6

HEX. JAM NUT - Call your local BRP dealership

706000006

Unavailable

7

Swing Arm Bellows

706000011

Unavailable

8

Norma Gear Clamp

293650090

$4.54

9

Norma Clamp

514052860

Unavailable

10

Norma Clamp

514052924

$14.22

11

Rear Shock | Includes 11 - 12.

706000239

Unavailable

12

Lower Bushing | Traxter XT.

706000147

Unavailable

13

SPRING_COMPRESSION B-190 PAINTED - Call your local BRP dealership

706000114

Unavailable

14

Cam

503189205

Unavailable

15

Spring Stopper

706200881

$12.99

16

Protector

706000137

Unavailable

17

Cap

706200785

$4.69

18

Hex. Flange Screw M10 X 55

207605544

$3.38

19

Hex. Flange Elastic Nut M10

233201414

$1.58

20

Synthetic Grease, 400 G

293550010

Unavailable
