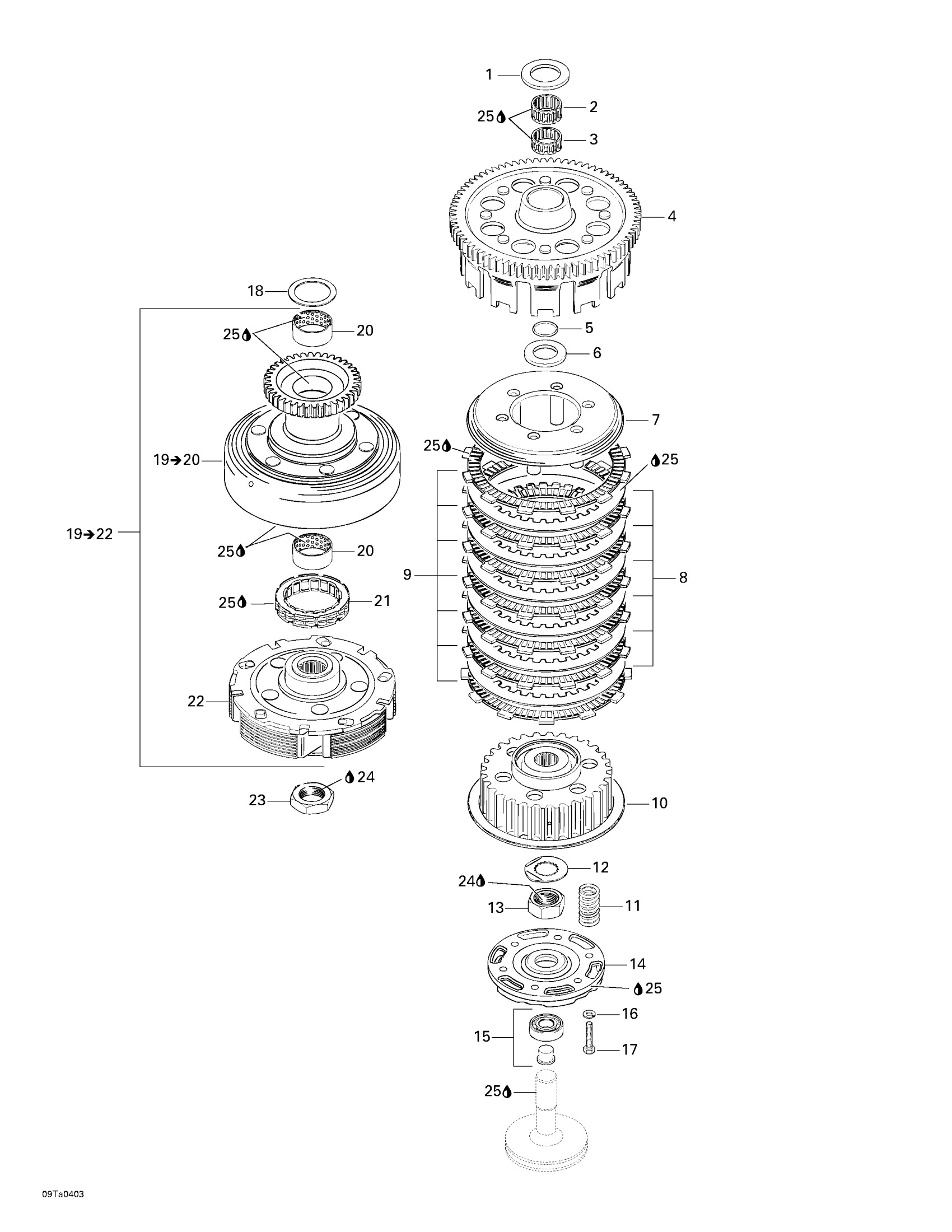

Can-Am Traxter XL, 2004 05- Clutch Diagram

#

Description
Price

1

THRUST WASHER - Call your local BRP dealership

420227390

Unavailable

2

Needle Bearing

420632070

$25.99

3

NEEDLE CAGE - Call your local BRP dealership

420232655

Unavailable

4

Clutch Drum

420659203

Unavailable

5

O-RING - Call your local BRP dealership

293300018

Unavailable

6

THRUST WASHER - Call your local BRP dealership

420227600

Unavailable

7

INNER PLATE - Call your local BRP dealership

420659230

Unavailable

8

Plate 1.5 mm

420259915

Unavailable

9

LAMELLA 3 MM - Call your local BRP dealership

420259907

Unavailable

10

CLUTCH HUB - Call your local BRP dealership

420259876

Unavailable

11

CLUTCH SPRING - Call your local BRP dealership

420239741

Unavailable

12

TAB WASHER - Call your local BRP dealership

420245320

Unavailable

13

Hex. Nut M18

420242605

Unavailable

14

Retaining Plate

420259131

$70.99

15

Hub Thrust With Ball Bearing

420259143

Unavailable

16

Lock Washer

420945750

Unavailable

17

HEX. SCREW M5 X 25 - Call your local BRP dealership

420241770

Unavailable

18

THRUST WASHER - Call your local BRP dealership

420427130

Unavailable

19

CLUTCH ASS'Y - Call your local BRP dealership | Includes 19 to 23

420296093

Unavailable

19

CLUTCH - Call your local BRP dealership | Includes 20 to 21

420659177

Unavailable

20

CLUTCH BUSHING - Call your local BRP dealership

420233765

Unavailable

21

SPRAG CLUTCH - Call your local BRP dealership

420659240

Unavailable

22

CLUTCH HUB - Call your local BRP dealership

420659180

Unavailable

23

Hex. Nut, M22 X 1.5

420842239

$17.53

24

Loctite 243, 10 ml

293800060

$21.49

25

OIL 4T 12X1 BLEND QUART - Call your local BRP dealership

293600121

Unavailable
