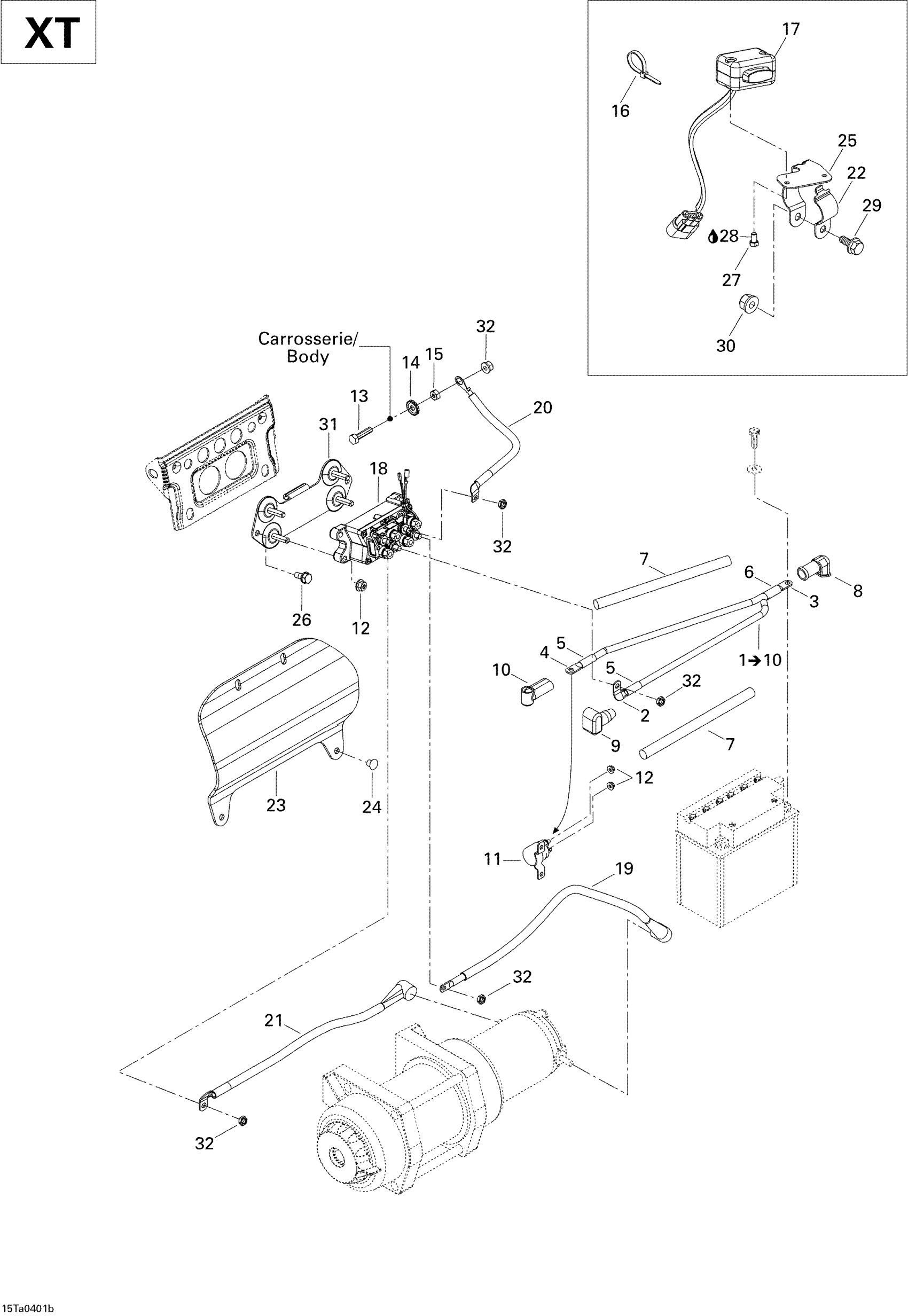

Can-Am Traxter Max Std & Max XT, 2004 10- Electrical Accessories (Traxter Max XT) Diagram

Battery Winch Solenoid Cable | Includes 1 to 10

710000466

Unavailable

TERMINAL_FEMALE - Call your local BRP dealership | STD Models

710000475

Unavailable

FLAT OPEN BAREL 6.6 MM - Call your local BRP dealership

710000478

Unavailable

Flat Open Barel 6.6 mm

710000479

Unavailable

Was 710000483 Heat Shrink Tubing

219704447

$78.99

Shrink Tubing | XT Models

275500578

Unavailable

PROTECTOR TUBE, 9 MM - Call your local BRP dealership

710000497

Unavailable

Protector Cap

710000495

$10.99

Protector Cap | STD Models

710000523

Unavailable

Protector Cap

710000527

Unavailable

Starter Relay

515176011

$62.49

Elastic Stop Nut M6

232561414

$0.55

Hex. Screw M6 X 20 | XT Models

207162044

$0.76

External Serrated Lock Washer 6 mm

234461608

$1.15

Hex. Nut M6

232061414

$0.53

Tie-Rap 180 mm

414115200

$0.11

WINCH INTERRUPTER - Call your local BRP dealership | XT Models, Includes 13 To 16

710001001

Unavailable

Winch Solenoid | XT Models

710001000

$121.99

Winch Solenoid Cable Ass'y | Includes 17 to 21

710000438

Unavailable

Frame Solenoid Cable Ass'y | Includes 22 to 25

710000439

Unavailable

Winch Solenoid Cable Ass'y | Includes 26 to 31

710000440

Unavailable

Collar

710000566

Unavailable

Protector Pad

710000511

Unavailable

Black, Dart

293730011

$0.99

Support, Black

710000564

Unavailable

Hex. Forming Screw M6 X 10

210261050

$1.69

Hex. Cap Screw 6-32 X 1/4" | XT Models

250000153

$1.69

Loctite 243, 10 ml

293800060

$21.49

Hex. Flange Screw M6 X 16

207661654

$2.11

Hex. Flange Elastic Nut M6

233261494

$1.58

SOLENOID SUPPORT, BLACK - Call your local BRP dealership

710000535

Unavailable

Elastic Stop Nut M6

232561414

$0.55
