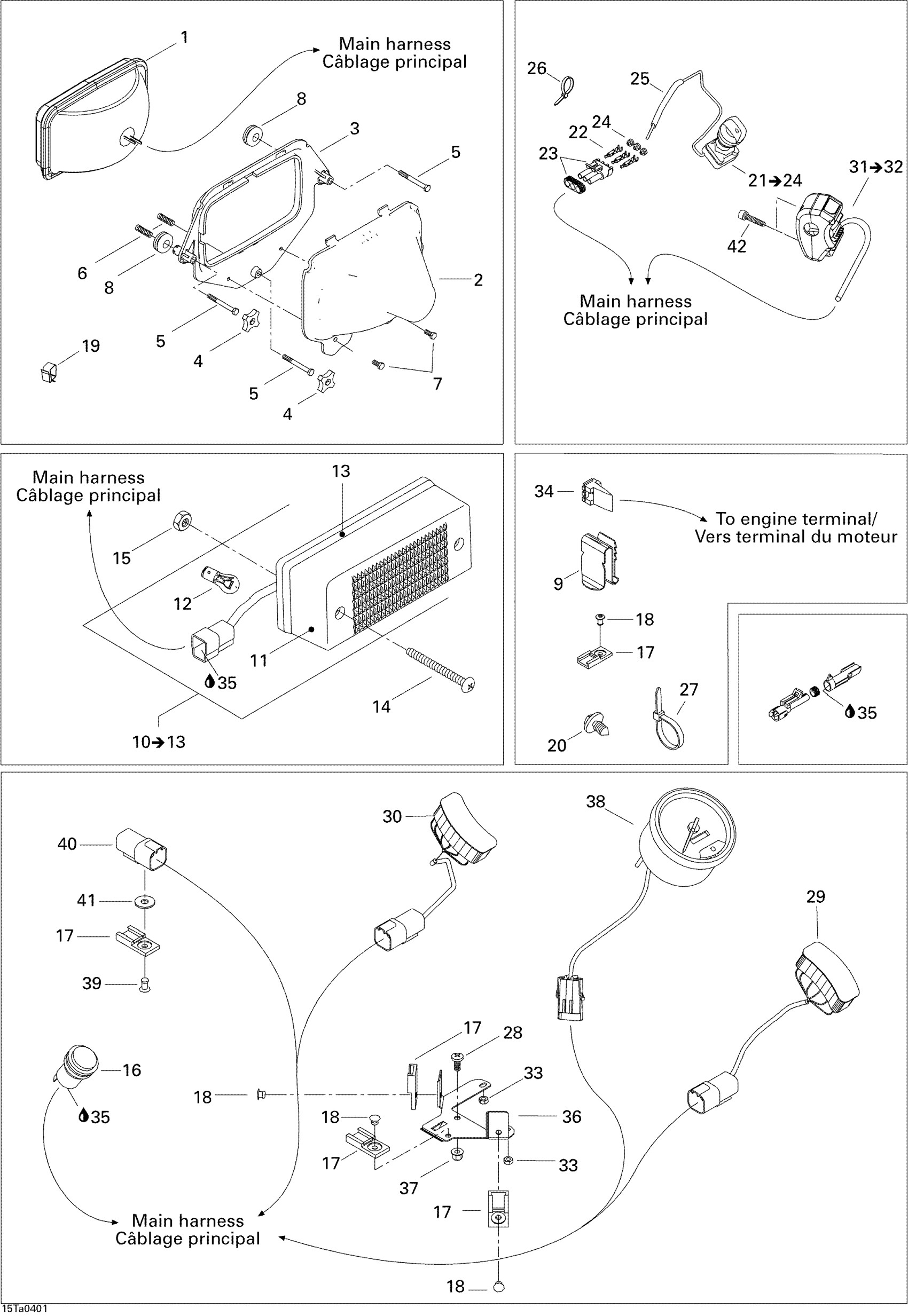

Can-Am Traxter Max Std & Max XT, 2004 10- Electrical Accessories Diagram

#

Description
Price

1

HEADLAMP - Call your local BRP dealership

710000001

Unavailable

2

Light Protector

705001048

Unavailable

3

Head Lamp Support

705000474

Unavailable

4

Handle

572106600

$10.33

5

HEX. SCREW K40 X 40 - Call your local BRP dealership

250000008

Unavailable

6

Spring

517168600

$7.39

7

PHILLIPS SCREW K40 X 10 - Call your local BRP dealership

241641040

Unavailable

8

Grommet

709000582

$4.69

9

CLIP - Call your local BRP dealership

409014200

Unavailable

10

Tail Light Housing

710000102

Unavailable

11

TAIL LIGHT LENS, RED - Call your local BRP dealership

710000055

Unavailable

12

Bulb

520000758

$9.10

13

GASKET - Call your local BRP dealership

710000129

Unavailable

14

PAN HEAD PHILLIPS SCREW M5 X 60 - Call your local BRP dealership

208656091

Unavailable

15

Hex. Flange Elastic Nut M5

233251414

$1.04

16

Outlet Power Kit, 12 Volts

861507200

$36.99

17

Clip

270000141

$11.49

18

Pop Rivet 3/16"

390402400

$0.35

19

Clip

414227300

$1.67

20

Mount Dart

293730040

$1.04

21

Ignition Switch Ass'y | Includes 24 - 27.

710000042

Unavailable

21

BLANK KEY (A TYPE) - Call your local BRP dealership

710000137

Unavailable

21

BLANK KEY (B TYPE) - Call your local BRP dealership

710000101

Unavailable

22

Female Terminal

278000223

$3.19

23

Male Housing, 3 Circuits

278000273

$9.59

24

Wire Seal

278000218

$4.39

25

Protector Tube

710000171

Unavailable

26

Tie Wrap 142 mm

293750002

$1.25

27

Tie Wrap 142 mm

293750002

$1.25

27

Tie Wrap 368 mm

293750008

$1.04

27

Tie-Rap 180 mm

414115200

$0.11

28

PHILLIPS SCREW M5 X 12 - Call your local BRP dealership

208651241

Unavailable

29

RH Warning Light | INCLUDES ITEMS 23 TO 36

710000420

Unavailable

30

LH WARNING LIGHT - Call your local BRP dealership | INCLUDES ITEMS 27 TO 30

710000418

Unavailable

31

Multi-function Switch Ass'y | Includes 26 to 30

710000088

Unavailable

32

BACK COVER - Call your local BRP dealership

710000173

Unavailable

33

NUT-STOP ELASTIC IFI 100/107 - Call your local BRP dealership

211100051

Unavailable

34

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

Unavailable

35

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

36

Housing Support, Black

710000159

Unavailable

37

Elastic Stop Nut M5

232551414

$0.87

38

Speedometer

710000524

Unavailable

39

Pop Rivet 3/16"

390402300

$0.75

40

MALE HOUSING, 3 CIRCUITS - Call your local BRP dealership

710000044

Unavailable

41

Washer | DS 650 X

391301600

$0.48

42

Socket Head Screw M5 X 35

205053588

$1.90
