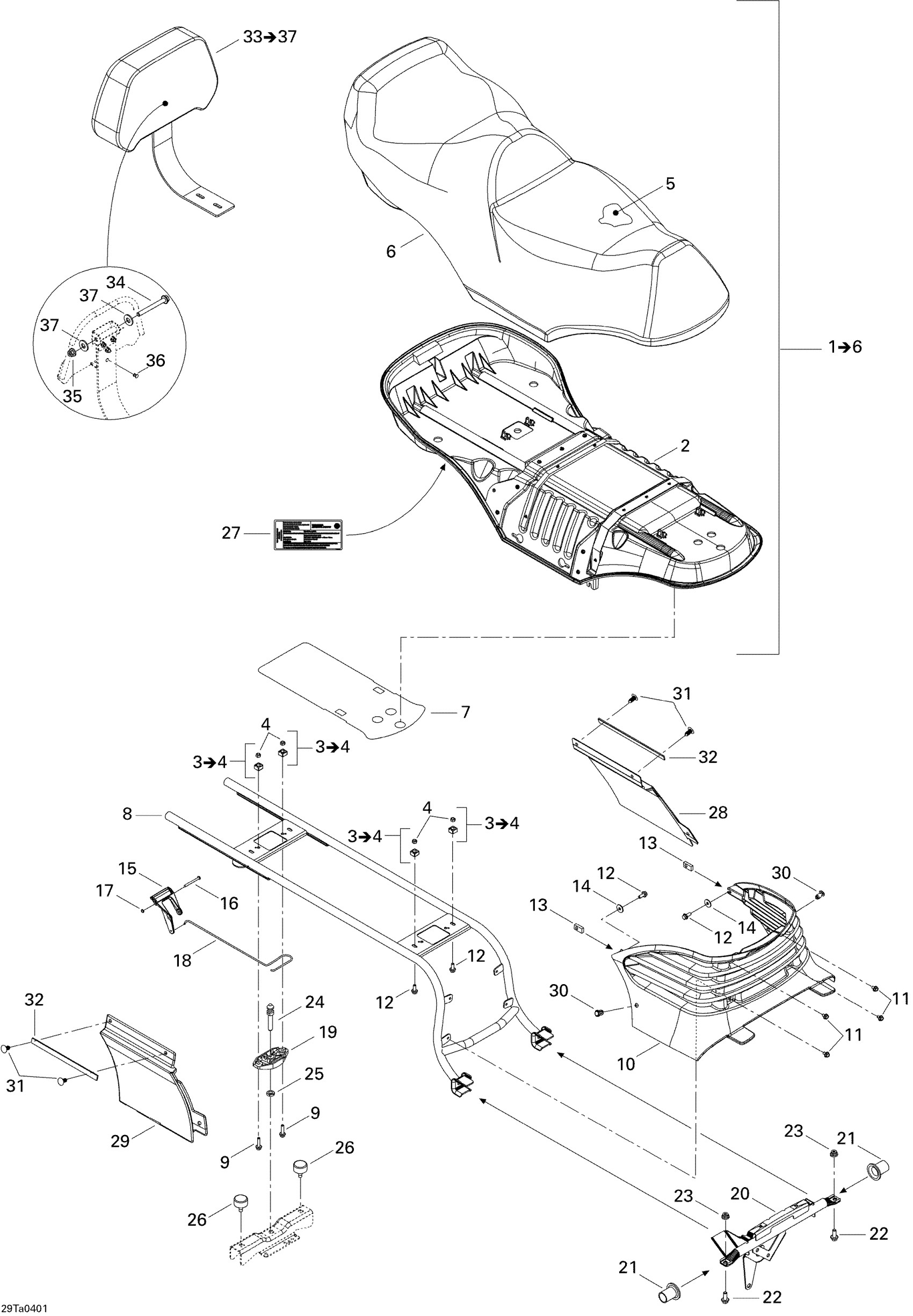

Can-Am Traxter Max Std & Max XT, 2004 09- Seat Diagram

#

Description
Price

1

Seat ass’y (viper red) | INCLUDES 1 TO 6

708000321

Unavailable

Seat ass’y XT (yellow)

708000339

Unavailable

Seat ass’y (Laurentian green)

708000340

Unavailable

2

Not Available As Spare Part - Friction Washer

Unavailable

3

NUT HOUSING ASS'Y M6 - Call your local BRP dealership | Includes 2 To 3

708000046

Unavailable

4

Elastic Stop Nut M6

232561414

$0.55

5

Not Available As Spare Part - Friction Washer

Unavailable

6

Seat cover (viper red)

708000243

Unavailable

Seat cover XT (yellow)

708000246

Unavailable

Seat cover (Laurentian green)

708000248

Unavailable

7

Reflective Sheet

708000160

Unavailable

8

Seat support

708000173

Unavailable

9

Hex. Flange Screw M6 X 25

207662544

$0.64

10

Engine cover (grey)

705000707

Unavailable

11

Hex. Forming Screw M6 X 10

210261050

$1.69

12

Hex. Flange Screw M6 X 16

207661644

$0.74

13

Nut Housing M6

708000042

Unavailable

14

Flat Washer

224061201

$1.37

15

Lever Latch

708000010

Unavailable

16

SOLID RIVET 3/16 X 1-7/8 - Call your local BRP dealership

293150062

Unavailable

17

Push Nut

389804300

$0.53

18

SPRING - Call your local BRP dealership

708000015

Unavailable

19

Latch Base

708000034

Unavailable

20

Pivot seat

708000177

Unavailable

21

SEAT BUSHING - Call your local BRP dealership

708000019

Unavailable

22

Hex. Flange Screw M8 X 20

207682044

$1.15

23

Hex. Flange Elastic Nut M8

233281414

$1.47

24

SEAT STUD - Call your local BRP dealership

291000945

Unavailable

25

Hex. Jam Nut M10

232100600

$2.22

26

Rubber Stopper

708000758

$12.99

27

Emission Label

704900625

Unavailable

28

LH Panel | STD, Viper Red

705000669

Unavailable

LH Panel | XT, Yellow

705000694

Unavailable

LH Panel | STD & XT, L.Green

705000880

Unavailable

29

RH PANEL - Call your local BRP dealership | STD, Viper Red

705000670

Unavailable

RH PANEL - Call your local BRP dealership | XT, Yellow

705000695

Unavailable

RH Panel | STD & XT, L.Green

705000881

Unavailable

30

Tuflok Plastic Rivet

293150230

$1.47

31

Black Dart

293730010

$0.99

32

Gasket, Neoprene 2000Mm Long

219704476

$15.36

33

Backrest ass’y | INCLUDES 33 TO 37

708000301

Unavailable

34

Hex. Screw M8 X 95

207089544

Unavailable

35

Hex. Flange Elastic Nut M8

233281414

$1.47

36

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

37

Hardened Washer

706200281

$2.85
