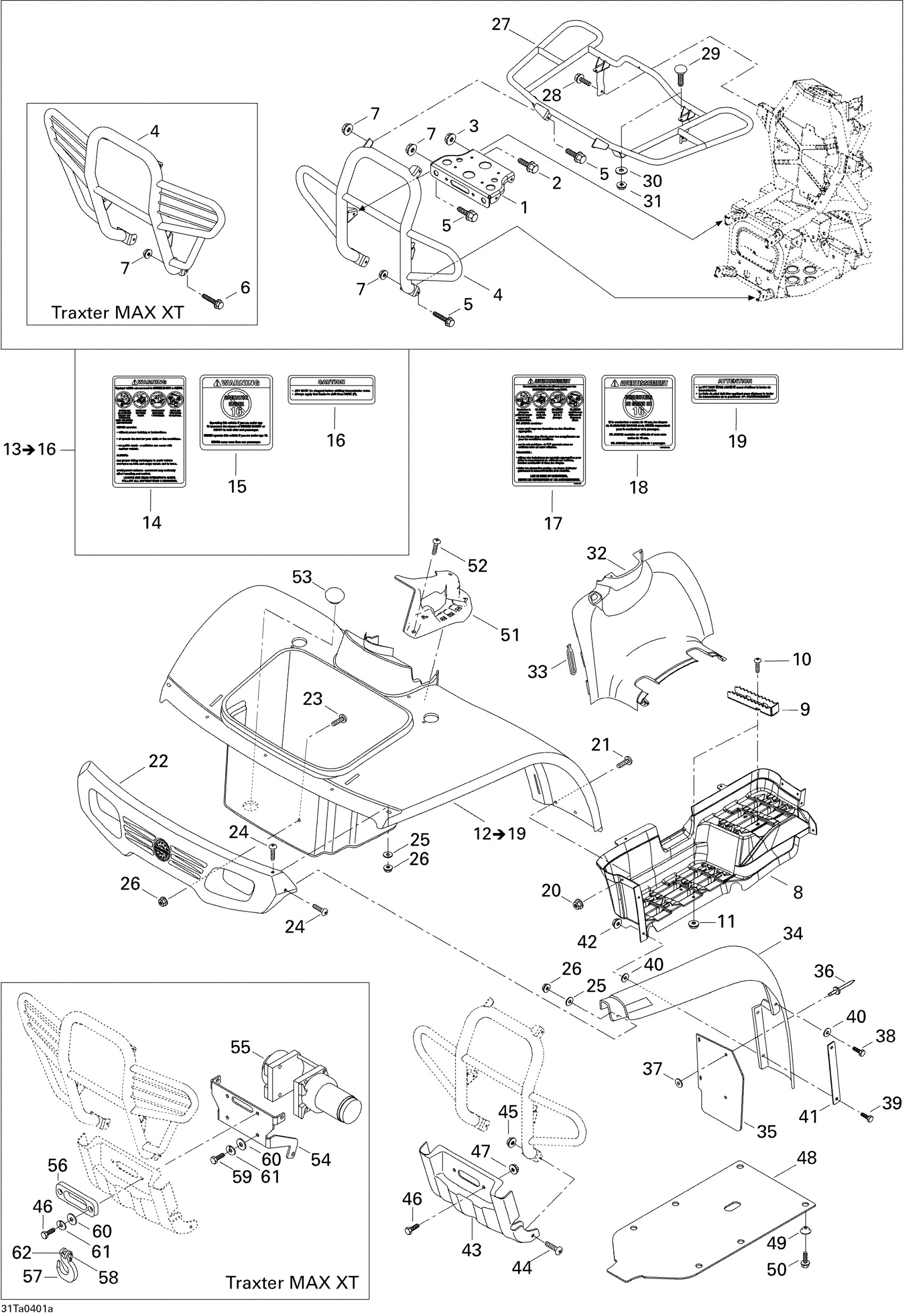

Can-Am Traxter Max Std & Max XT, 2004 09- Body And Accessories, Front View Diagram

#

Description
Price

1

WINCH LATCH, BLACK - Call your local BRP dealership

705200196

Unavailable

2

Hex. Flange Screw M8 X 20

207682044

$1.15

3

Hex. Flange Elastic Nut M8

233281414

$1.47

4

Front bumper | STANDARD MODELS

705000757

Unavailable

Front bumper | XT MODELS

705000775

Unavailable

5

Hex. Flange Screw M8 X 20

207682044

$1.15

Hex. Flange Screw M8 X 20

207682044

$1.15

6

Hex. Flange Screw M8 X 25

207682544

$1.35

7

Hex. Flange Elastic Nut M8

233281414

$1.47

8

RH footrest cover

705000671

Unavailable

LH footrest cover

705000672

Unavailable

9

Footrest, Black

705001083

Unavailable

10

Hex. Flange Screw M6 X 25

207662554

$1.48

11

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

12

Front fender kit XT (Yellow) | INCLUDES 12 TO 19

703500358

Unavailable

Front fender kit (Viper red) | Includes 12 - 15. STD & LE

703500276

Unavailable

Front fender kit (Laurentian green)

703500357

Unavailable

13

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

14

Warning Decal, Death And Injuries | English Version

704901749

Unavailable

15

Warning Decal, Under 16 Years Old | English Version

704901753

Unavailable

16

Caution Decal, Lever And 4wd Switch | English Version

704900434

Unavailable

17

Warning Label

704900435

Unavailable

18

WARNING DECAL, UNDER 16 YEARS OLD - Call your local BRP dealership | French Version

704900436

Unavailable

19

Caution Decal, Transmission Selector | French version

704900008

Unavailable

20

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

21

PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650

250000080

Unavailable

22

Front Fascia, Slate Gray

705000708

Unavailable

23

PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650

250000080

Unavailable

24

PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650

250000080

Unavailable

25

Flat Washer

224060201

$1.26

26

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

27

Front Luggage Rack, Black

703500264

Unavailable

28

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

29

TRUSS PHILLIPS SCREW M6 X 25 - Call your local BRP dealership

250000035

Unavailable

30

Flat Washer

224060201

$1.26

31

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

32

Tank Cover, Slate Gray

705000710

Unavailable

33

Windshield Latch

570023800

$4.49

34

LH Front Mudguard

705000711

Unavailable

RH Front Mudguard

705000712

Unavailable

35

Mudguard Extension

705000755

Unavailable

36

Tuflok Plastic Rivet

293150230

$1.47

37

Flat Washer 8 mm

234082410

$1.47

38

Hex. Screw M6 X 20 | XT Models

207162044

$0.76

39

Hex. Screw M6 X 25

207162544

$1.15

40

Flat Washer

224060201

$1.26

41

PLATE - Call your local BRP dealership

705000754

Unavailable

42

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

43

PROTECTOR PLATE, SLATE GRAY - Call your local BRP dealership

705000713

Unavailable

44

PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650

250000080

Unavailable

45

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

46

Hex. Flange Screw M10 X 25

207602544

$1.69

Socket Screw 5/16-18 X 1 1/2" | Traxter 5 Speed XT

250000042

Unavailable

47

Hex. Flange Elastic Nut M10

233201414

$1.58

48

Skid Plate

705000675

Unavailable

49

CUP - Call your local BRP dealership

705200533

Unavailable

50

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

51

Lever Indicator

705000081

Unavailable

52

Tuflock Phillips Plastic Screw

414745900

$1.69

53

Rubber Cover

570041600

Unavailable

54

Mounting Plate | Traxter 5 Speed XT

705000994

Unavailable

55

WINCH - Call your local BRP dealership

705000839

Unavailable

56

CABLE GUIDE - Call your local BRP dealership

705000194

Unavailable

57

Winch Hook Kit

705014949

$24.99

58

Cotter Pin

250400022

$9.69

59

SOCKET SCREW 5/16-18 X 1 - Call your local BRP dealership

250000041

Unavailable

60

Flat Washer 8 mm

234081410

$0.83

61

Lock Washer 8 mm

234181401

$0.92

62

Clevis Pin

250400021

$13.18
