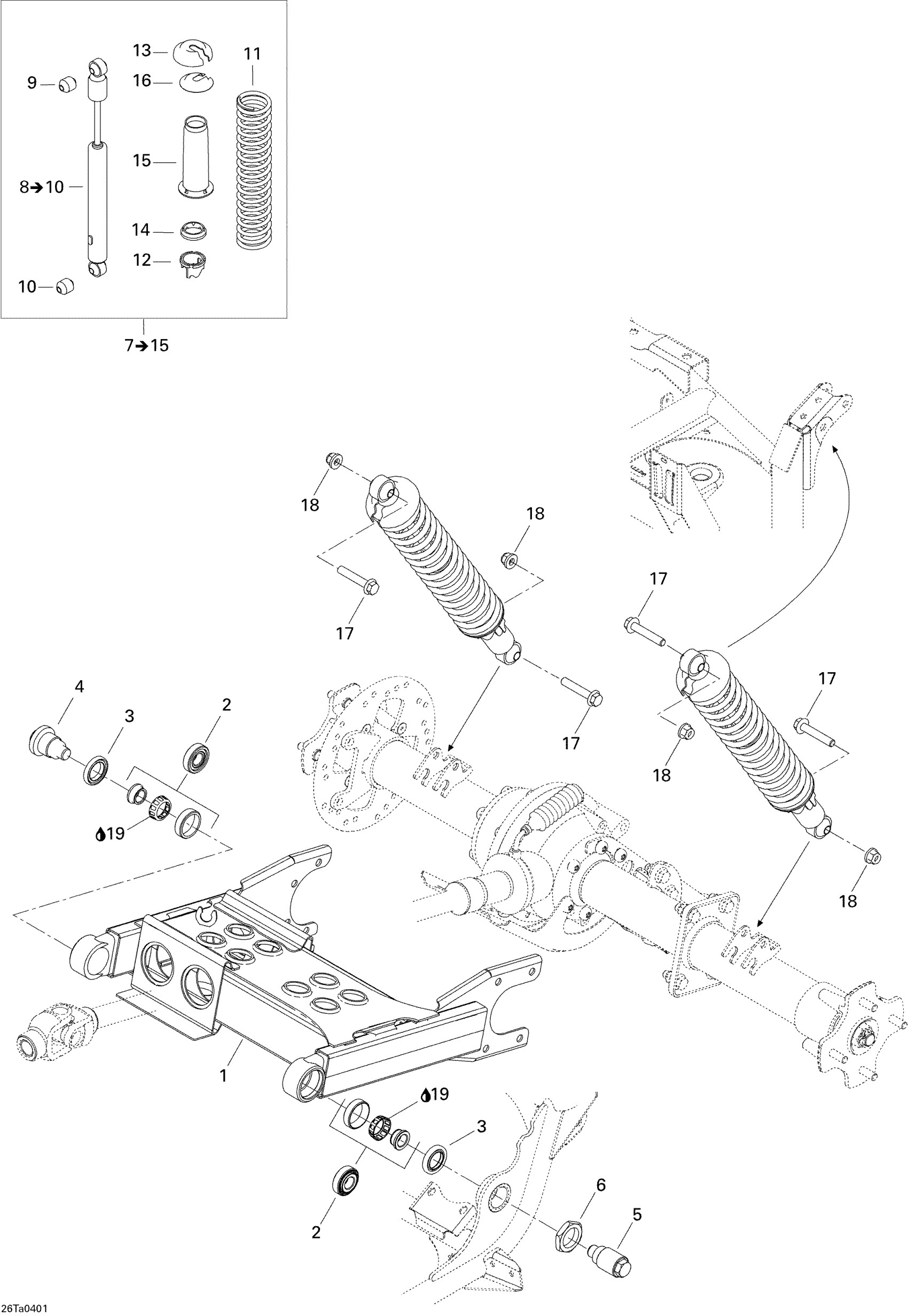

Can-Am Traxter Max Std & Max XT, 2004 08- Rear Suspension Diagram

#

Description
Price

1

SWING ARM, BLACK - Call your local BRP dealership

706000298

Unavailable

2

CONE BEARING - Call your local BRP dealership

706000169

Unavailable

3

OIL SEAL - Call your local BRP dealership

706000010

Unavailable

4

RH Pivot Bolt

706000092

Unavailable

5

LH PIVOT BOLT - Call your local BRP dealership

706000093

Unavailable

6

HEX. JAM NUT - Call your local BRP dealership

706000006

Unavailable

7

Not Available As Spare Part - Friction Washer

Unavailable

8

Rear shock | Includes 8 - 10.

706000235

Unavailable

9

UPPER BUSHING - Call your local BRP dealership

706000146

Unavailable

10

Lower Bushing | Traxter XT.

706000147

Unavailable

11

Yellow Rear Spring

706000306

Unavailable

12

ADJUSTER RING - Call your local BRP dealership

706000073

Unavailable

13

Spring Stopper

706200881

$12.99

14

Spring Seat

706000197

Unavailable

15

Protector

706000032

Unavailable

16

Cap

706200785

$4.69

17

Hex. Flange Screw M10 X 55

207605544

$3.38

18

Hex. Flange Elastic Nut M10

233201414

$1.58

19

Synthetic Grease, 400 G

293550010

Unavailable
