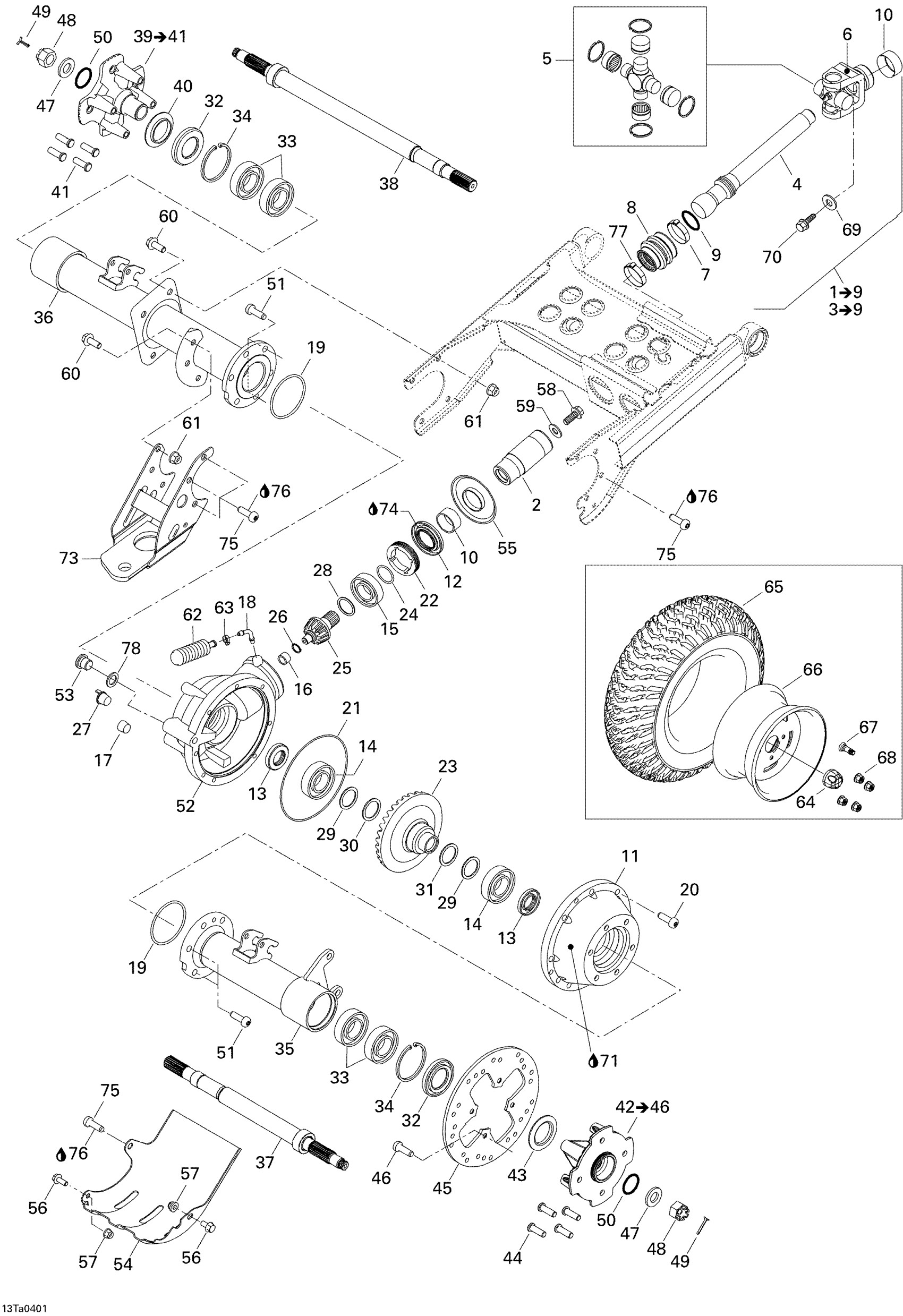

Can-Am Traxter Max Std & Max XT, 2004 05- Drive System, Rear Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Front Bushing Shaft Kit | 4X4

703500678

$114.99

3

REAR DRIVE AXLE ASS'Y - Call your local BRP dealership | Includes 3 to 9

705500405

Unavailable

4

REAR DRIVE AXLE ASS'Y - Call your local BRP dealership | Includes 3 to 9

705500405

Unavailable

5

Ens. Croix*U-Joint Cross Kit

715900325

$70.99

6

Fixed Yoke Joint

715900116

$59.49

7

Collar | 4X4

705400148

Unavailable

8

Protector

705400147

Unavailable

9

SEALING RING - Call your local BRP dealership

705500315

Unavailable

10

Wear Ring | 4X4

705400036

$26.49

11

Rear Cover

705500175

Unavailable

12

Oil Seal

705500248

Unavailable

13

Gasket | 4X4

705401618

$18.49

14

Ball Bearing | 4X4

705401606

$51.99

15

Ball Bearing | 4X4

705500260

$31.99

16

Needle Bearing | 4X4

705500261

$19.99

17

Drain Plug | 4X4

705500894

$11.49

18

VENT VALVE - Call your local BRP dealership | 4X4

705500893

Unavailable

19

O-RING - Call your local BRP dealership

705500263

Unavailable

20

Screw | 4X4

705401601

$10.49

21

Seal | 4X4

705500265

$18.76

22

Nut | 4X4

705401603

$35.99

23

Crown Gear

705500223

Unavailable

24

O-Ring | 4X4

705500267

$7.65

25

GEAR, 10 TEETH - Call your local BRP dealership | 4X4

705500268

Unavailable

26

RETAINING RING - Call your local BRP dealership | 4X4

705500269

Unavailable

27

PROTECTION PLUG - Call your local BRP dealership

705500516

Unavailable

28

Pinion Gear Shim 1.67 mm

705502061

$18.99

29

Shim | 4X4

705401604

$57.99

30

Pinion Gear Shim .022"

705500075

Unavailable

31

Shim | 4X4

705401604

$57.99

32

OIL SEAL - Call your local BRP dealership

705500099

Unavailable

33

BALL BEARING - Call your local BRP dealership

705500251

Unavailable

34

RETAINING RING - Call your local BRP dealership

705500249

Unavailable

35

RH AXLE TUBE - Call your local BRP dealership

705500250

Unavailable

36

LH AXLE TUBE - Call your local BRP dealership

705500182

Unavailable

37

RH AXLE - Call your local BRP dealership

705500183

Unavailable

38

LH AXLE - Call your local BRP dealership

705500184

Unavailable

39

Wheel Hub Ass'y | Includes 50 - 52.

705500254

Unavailable

40

WEAR RING - Call your local BRP dealership

705500100

Unavailable

41

Wheel Stud M10 X 1.25 | 2X4

250300055

$3.49

42

Rear Wheel Hub | INCLUDES ITEMS 42 TO 46

705500449

Unavailable

43

WEAR RING - Call your local BRP dealership

705500100

Unavailable

44

Wheel Stud M10 X 1.25 | 2X4

250300055

$3.49

45

Brake Disc

705600343

Unavailable

46

Torx Screw M8 X 16, Scotch Grip

235381646

$2.53

47

WASHER - Call your local BRP dealership

250200019

Unavailable

48

Hex. Flange Castellated Nut M18

232291413

$7.98

49

Cotter Pin

250400036

$2.11

50

O-RING - Call your local BRP dealership

705500271

Unavailable

51

Torx Screw M10 X 30

250000085

Unavailable

52

PINION REAR COVER - Call your local BRP dealership

705500512

Unavailable

53

Fill Level Plug | 4X4

705500504

$10.01

54

Differential Protector, Black

705500185

Unavailable

55

JOINT PROTECTOR - Call your local BRP dealership

705500214

Unavailable

56

Hex. Flange Screw M8 X 16

207681644

$4.12

57

Hex. Flange Nut M8

233181414

$1.15

58

Flange Screw M10 X 16, Scotch Grip | 4X4

250000060

$3.70

59

Flat Washer M10 | 4X4

250200014

$1.49

60

Hex. Flange Screw M10 X 25

207602544

$1.69

61

Hex. Flange Elastic Nut M10

233201414

$1.58

62

Rubber Bellow | 4X4

705400552

$6.14

63

Tie Wrap 94 mm | 4X4

293750001

$1.03

64

WHEEL CAP - Call your local BRP dealership

705400012

Unavailable

65

Rear Tire

705500230

Unavailable

66

Rear Rim, Grey

705500239

Unavailable

Rear Rim, Chrome | Quest XT.

705500339

Unavailable

67

Rim Valve With Cap

705400193

$8.69

68

HEX. NUT - Call your local BRP dealership

705400013

Unavailable

69

Washer

211200041

$3.17

70

HEX. FLANGED SCREW M8 X 16 - Call your local BRP dealership

207681686

Unavailable

71

JET PUMP OIL SYNTHETIC 6 FL OZ / 178 ML | 4X4

779221

$16.99

72

Graisse *Grease

293550062

$15.99

73

Trailer Hook, Black

705500244

Unavailable

74

Synthetic Grease, 400 G

293550010

Unavailable

75

Torx Screw M10 X 30

250000085

Unavailable

76

Loctite 609, 10 ml

413703100

$26.99

77

Oetiker Gear Clamp 44.0MM | 4X4

293650138

$8.89

78

Copper Washer | 4X4

705500506

$0.45
